Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

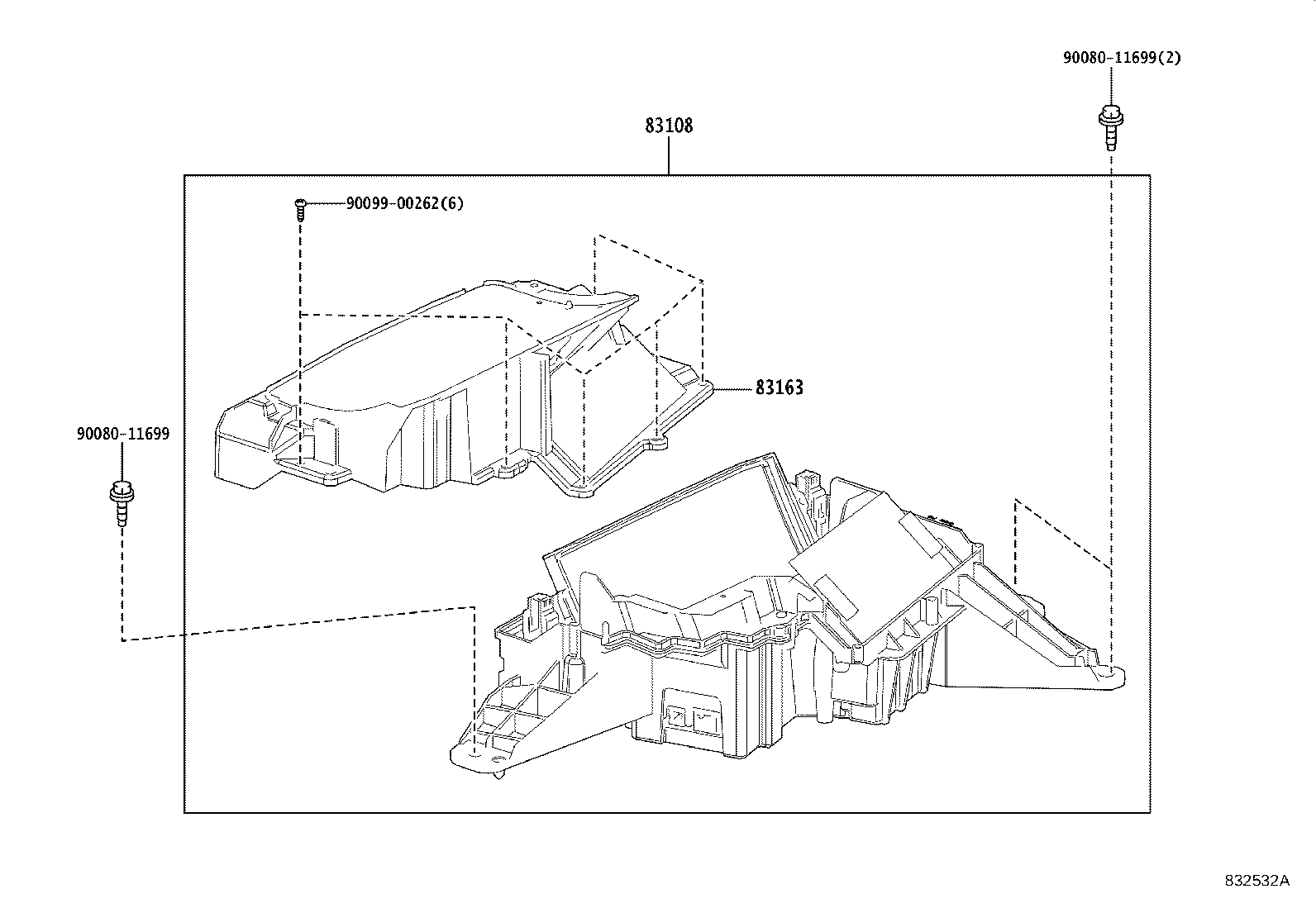

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83108 — Mirror Sub-assy, Meter | ||||
| 83108-0E130 |
Mirror Sub-assy, Meter
2022-10 → 2024-05
ended
|
TALH17 | — | |
| 83108-0E130 note |
Mirror Sub-assy, Meter
2022-10 → 2024-05
ended
|
AALH15,TALA1# | — | |
| 83108-0E131 |
Mirror Sub-assy, Meter
2024-06 → —
|
TALH17 | — | |
| 83108-0E131 note |
Mirror Sub-assy, Meter
2024-06 → —
|
AALH15,TALA1# | — | |
| 83163 — Plate, Combination Meter Mirror, NO.1 | ||||
| 83163-0E130 |
Plate, Combination Meter Mirror, NO.1
2022-10 → —
|
TALH17 | — | |
| 83163-0E130 note |
Plate, Combination Meter Mirror, NO.1
2022-10 → —
|
AALH15,TALA1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
