Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

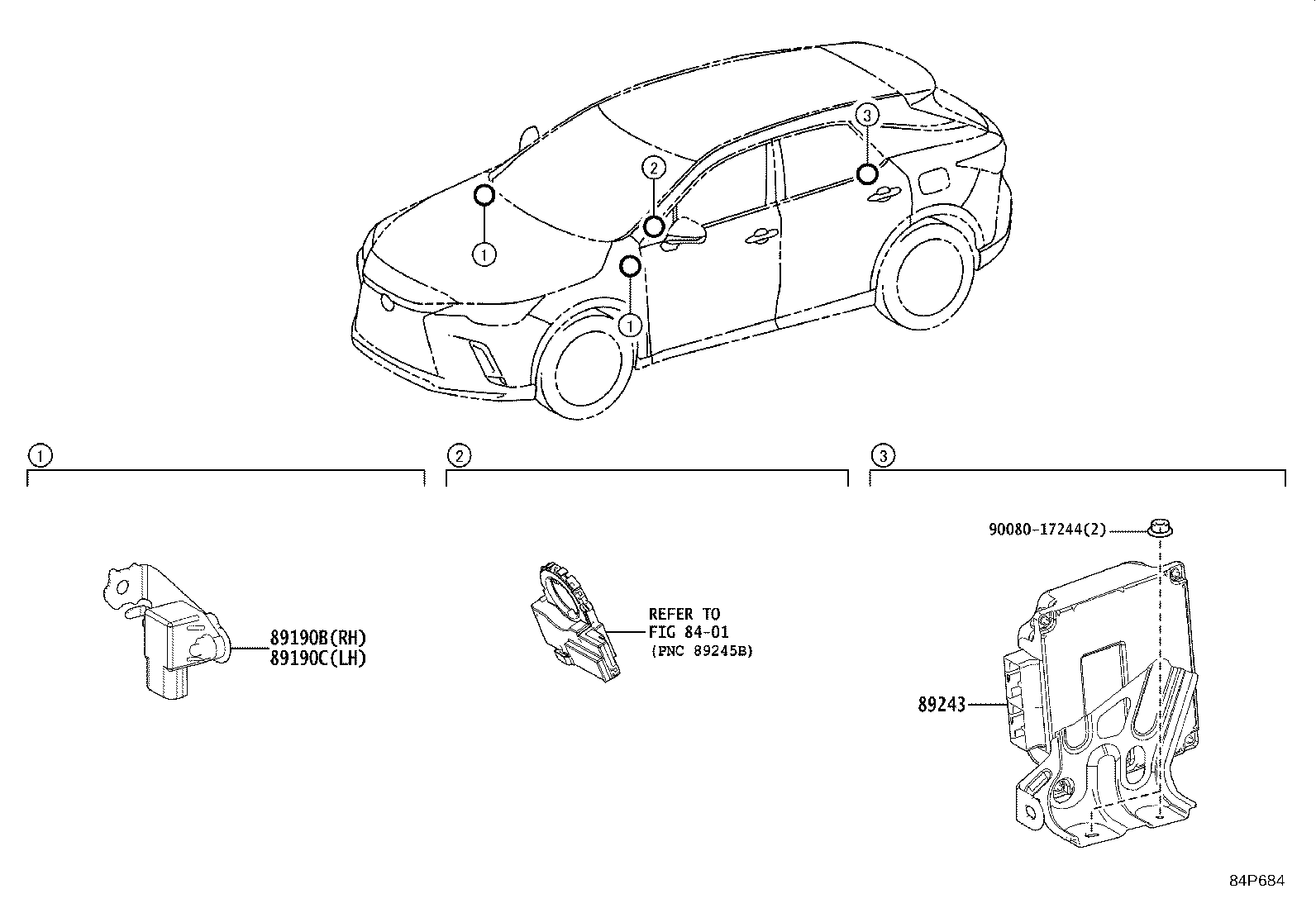

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89190B — Sensor Assy, Acceleration, RH | ||||
| 89190-78030 |
Sensor Assy, Acceleration, RH
2022-10 → —
|
TALH17 | — | |
| 89190-78030 note |
Sensor Assy, Acceleration, RH
2022-10 → —
|
TALA15 | — | |
| 89190C — Sensor Assy, Acceleration, LH | ||||
| 89190-78040 |
Sensor Assy, Acceleration, LH
2022-10 → —
|
TALH17 | — | |
| 89190-78040 note |
Sensor Assy, Acceleration, LH
2022-10 → —
|
TALA15 | — | |
| 89243 — Computer, Absorber Control | ||||
| 89243-48100 |
Computer, Absorber Control
2022-10 → 2023-08
ended
|
TALH17 | — | |
| 89243-48100 note |
Computer, Absorber Control
2022-10 → 2023-08
ended
|
TALA15 | — | |
| 89243-48101 |
Computer, Absorber Control
2023-08 → 2024-11
ended
|
TALH17 | — | |
| 89243-48101 note |
Computer, Absorber Control
2023-08 → 2024-11
ended
|
TALA15 | — | |
| 89243-48102 |
Computer, Absorber Control
2024-11 → —
|
TALH17 | — | |
| 89243-48102 note |
Computer, Absorber Control
2024-11 → —
|
TALA15 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
