Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 84P687A 8401 — not listed in this catalogue 4102 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 89542 — SENSOR, SPEED, FRONT RH (3 parts) 89543 — SENSOR, SPEED, FRONT LH (3 parts) 89516C — WIRE, SKID CONTROL SENSOR, RH (2 parts) 89516D — WIRE, SKID CONTROL SENSOR, LH (2 parts) 90153A0003 — not listed in this catalogue 9015350015 — not listed in this catalogue 90153A0003 — not listed in this catalogue 9015350015 — not listed in this catalogue 90178A0023 — not listed in this catalogue 9008017244 — not listed in this catalogue 9008017244 — not listed in this catalogue 9415180600 — not listed in this catalogue 89510D — SENSOR ASSY, BRAKE PEDAL STROKE (1 parts) 89630A — COMPUTER ASSY, 4WD (2 parts) 9167180616 — not listed in this catalogue 90119A0081 — not listed in this catalogue 9011908868 — not listed in this catalogue 90119A0213 — not listed in this catalogue 90119A0255 — not listed in this catalogue 9008017244 — not listed in this catalogue 9167180616 — not listed in this catalogue 89542 — SENSOR, SPEED, FRONT RH (3 parts) 89543 — SENSOR, SPEED, FRONT LH (3 parts) 89686A — BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1 (1 parts) 89680 — SUPPLY ASSY, BRAKE CONTROL POWER (2 parts) 89687 — BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2 (1 parts) 9167180616 — not listed in this catalogue 9167180616 — not listed in this catalogue 89544D — SENSOR, SKID CONTROL, REAR RH (1 parts) 89544E — SENSOR, SKID CONTROL, REAR LH (1 parts)

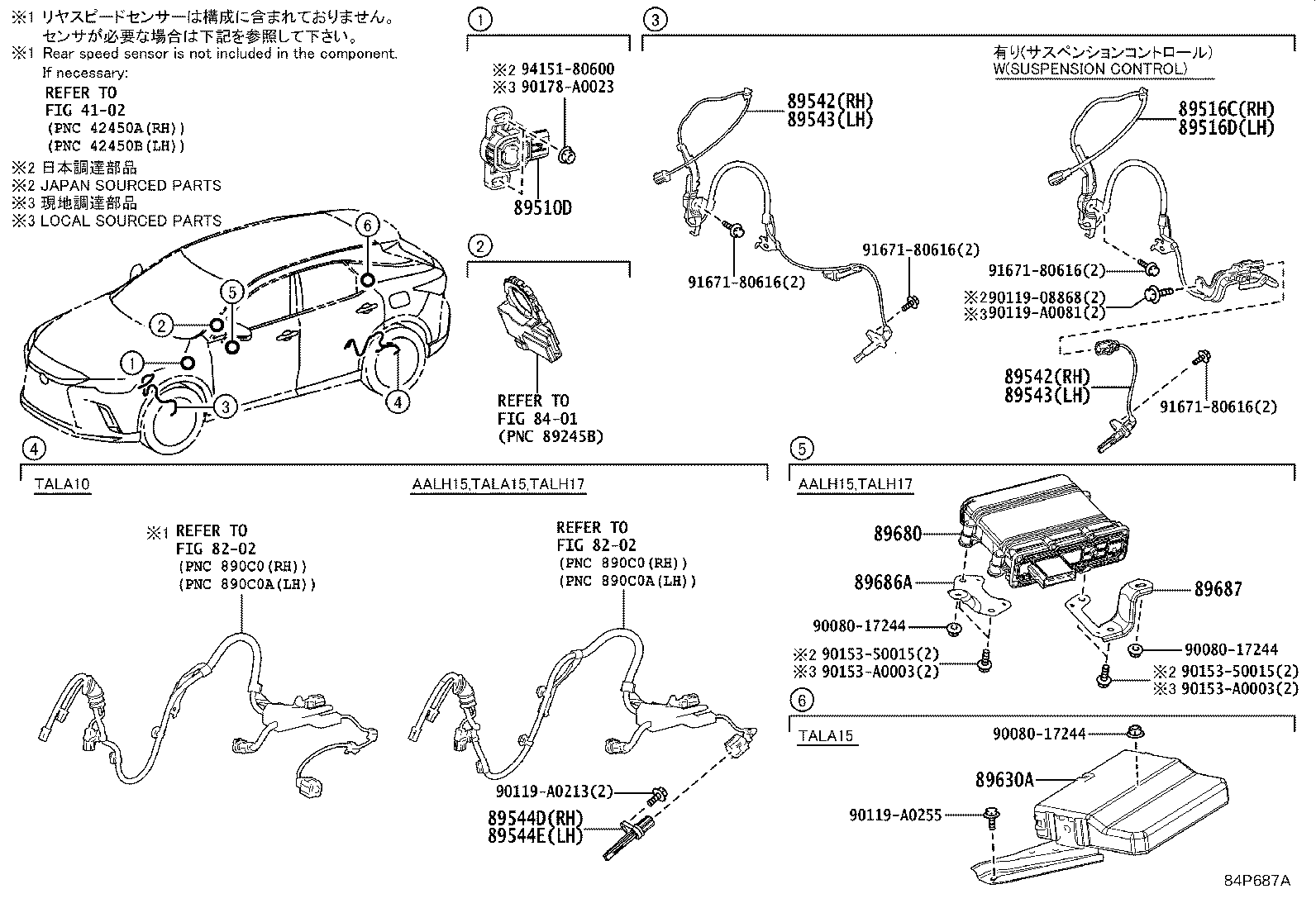

84P687A · 13 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
19 parts on this figure
Part number Description Fitment Price
89510D — Sensor Assy, Brake Pedal Stroke
89510-42010 Sensor Assy, Brake Pedal Stroke
2022-10 → —
AALH15,TALH17 —
89516C — Wire, Skid Control Sensor, RH
89516-0E121 Wire, Skid Control Sensor, RH
2022-10 → —
TALH17 —
89516-0E121 note Wire, Skid Control Sensor, RH
2022-10 → —
TALA15 —
89516D — Wire, Skid Control Sensor, LH
89516-0E131 Wire, Skid Control Sensor, LH
2022-10 → —
TALH17 —
89516-0E131 note Wire, Skid Control Sensor, LH
2022-10 → —
TALA15 —
89542 — Sensor, Speed, Front RH
89542-0E111 Sensor, Speed, Front RH
2022-10 → —
AALH15,TALA1# —
89542-F6020 Sensor, Speed, Front RH
2022-10 → —
TALH17 —
89542-F6020 note Sensor, Speed, Front RH
2022-10 → —
TALA15 —
89543 — Sensor, Speed, Front LH
89543-0E111 Sensor, Speed, Front LH
2022-10 → —
AALH15,TALA1# —
89543-F6020 Sensor, Speed, Front LH
2022-10 → —
TALH17 —
89543-F6020 note Sensor, Speed, Front LH
2022-10 → —
TALA15 —
89544D — Sensor, Skid Control, Rear RH
89544-0E080 Sensor, Skid Control, Rear RH
2022-10 → —
AALH15,TALA15,TALH17 —
89544E — Sensor, Skid Control, Rear LH
89544-0E080 Sensor, Skid Control, Rear LH
2022-10 → —
AALH15,TALA15,TALH17 —
89630A — Computer Assy, 4WD
89630-48100 Computer Assy, 4WD
2022-10 → 2023-02 ended
TALA15 —
89630-48101 Computer Assy, 4WD
2023-02 → —
TALA15 —
89680 — Supply Assy, Brake Control Power
89680-48020 note Supply Assy, Brake Control Power
2022-10 → —
AALH15,TALH17 —
89680-48030 Supply Assy, Brake Control Power
2022-10 → —
AALH15,TALH17 —
89686A — Bracket, Brake Control Power Supply, NO.1
89686-0E010 Bracket, Brake Control Power Supply, NO.1
2022-10 → —
AALH15,TALH17 —
89687 — Bracket, Brake Control Power Supply, NO.2
89687-0E010 Bracket, Brake Control Power Supply, NO.2
2022-10 → —
AALH15,TALH17 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
