Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

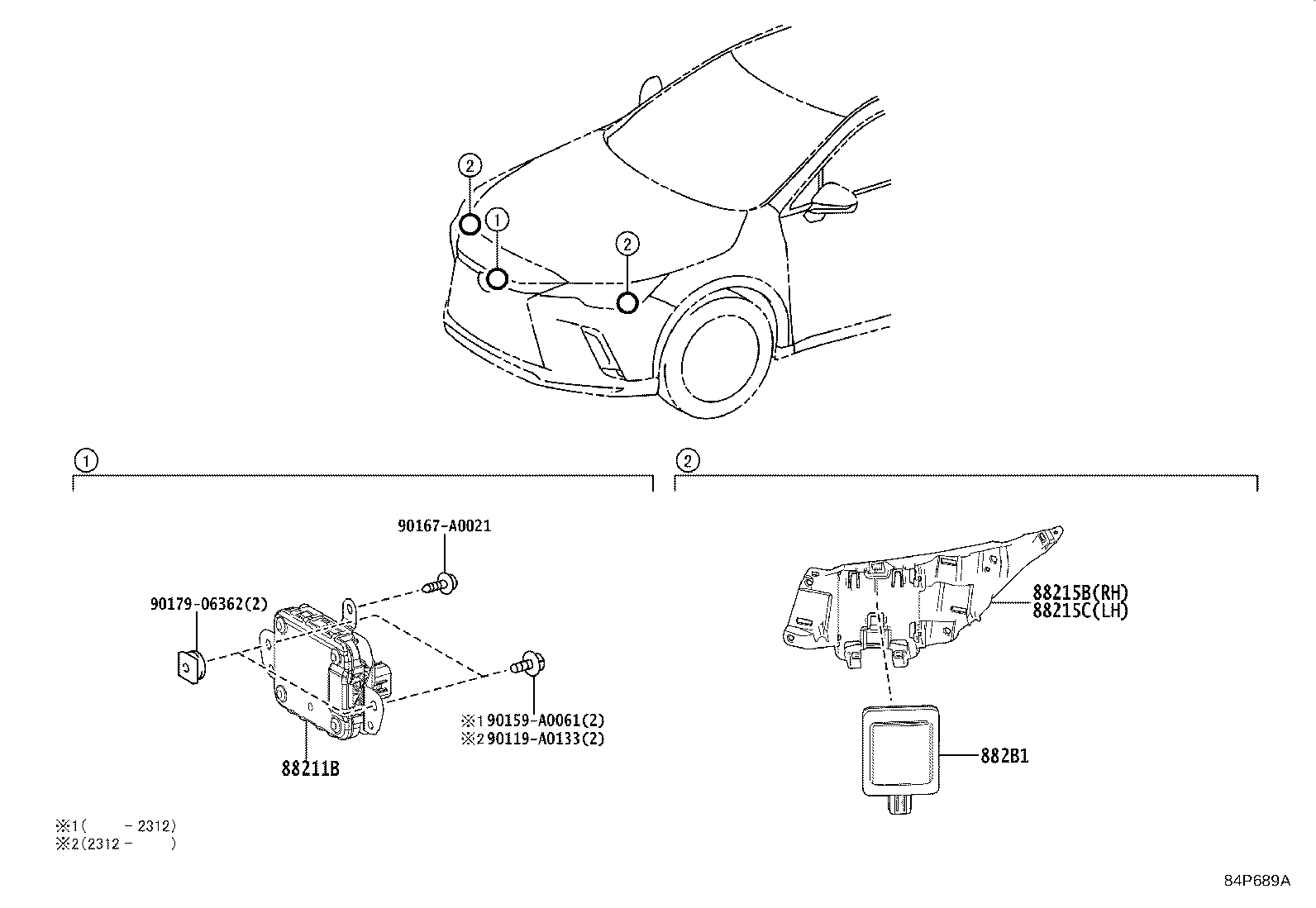

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88211B — Sensor Assy, Millimeter Wave Radar | ||||
| 88210-0E020 note |
Sensor Assy, Millimeter Wave Radar
2022-10 → —
|
AALH15,TALA15,TALH17 | — | |
| 88210-0E060 |
Sensor Assy, Millimeter Wave Radar
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 88215B — Bracket, Front Side Radar Sensor, RH | ||||
| 88215-0E010 |
Bracket, Front Side Radar Sensor, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 88215C — Bracket, Front Side Radar Sensor, LH | ||||
| 88215-0E020 |
Bracket, Front Side Radar Sensor, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 882B1 — Sensor, Front Side Radar | ||||
| 882B1-0E010 note |
Sensor, Front Side Radar
2022-10 → 2024-11
ended
|
AALH15,TALA1#,TALH17 | — | |
| 882B1-0E012 note |
Sensor, Front Side Radar
2024-11 → —
|
AALH15,TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
