Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

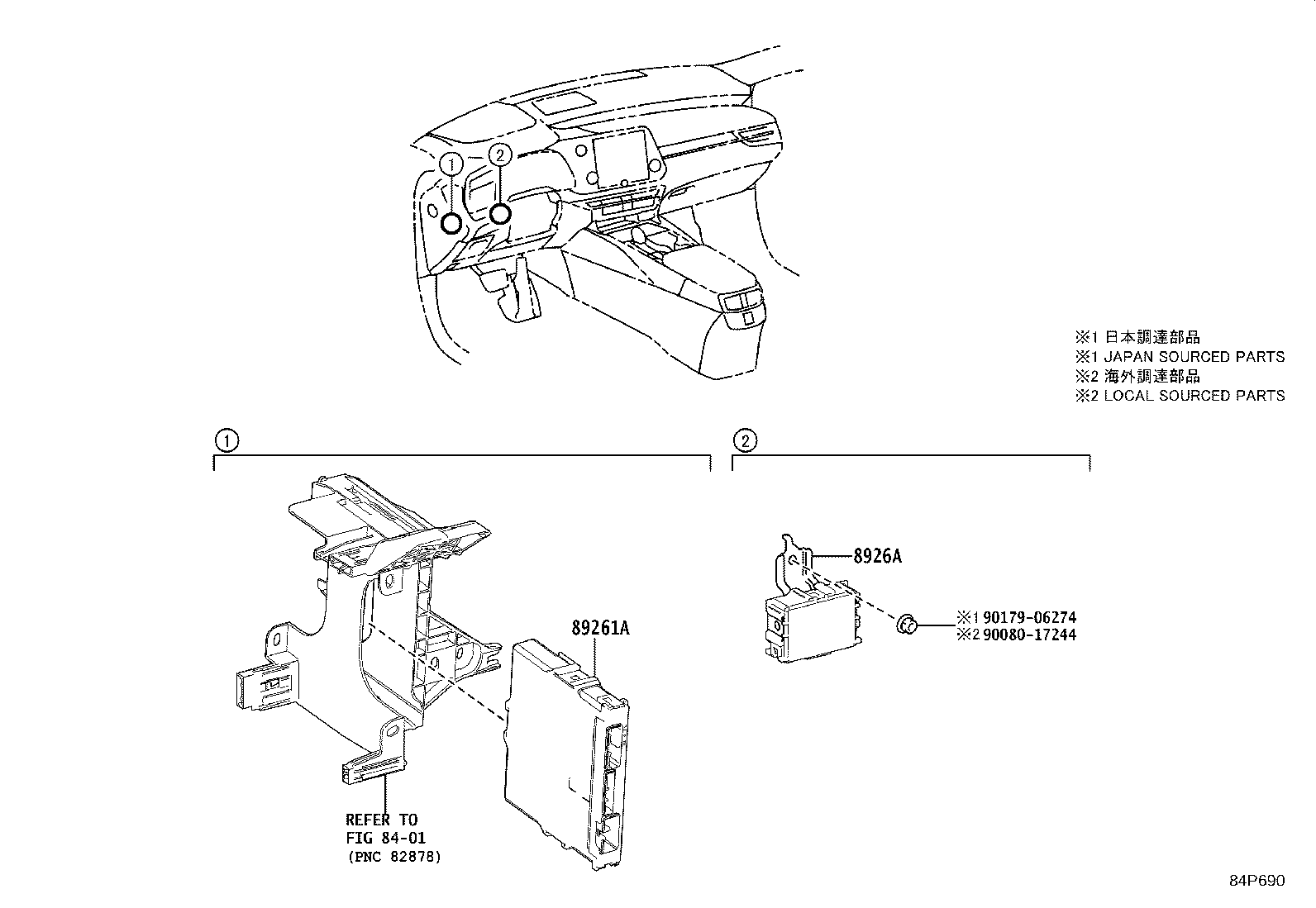

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89261A — Computer, Engine Stop And Start | ||||
| 89261-0E090 note |
Computer, Engine Stop And Start
2022-10 → —
|
TALA15 | — | |
| 89261-0E160 note |
Computer, Engine Stop And Start
2022-10 → 2023-07
ended
|
TALA1# | — | |
| 89261-0E161 note |
Computer, Engine Stop And Start
2023-08 → —
|
TALA1# | — | |
| 8926A — Filter, Engine Stop & Start Solenoid | ||||
| 8926A-0E050 |
Filter, Engine Stop & Start Solenoid
2022-10 → —
|
TALA1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
