Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

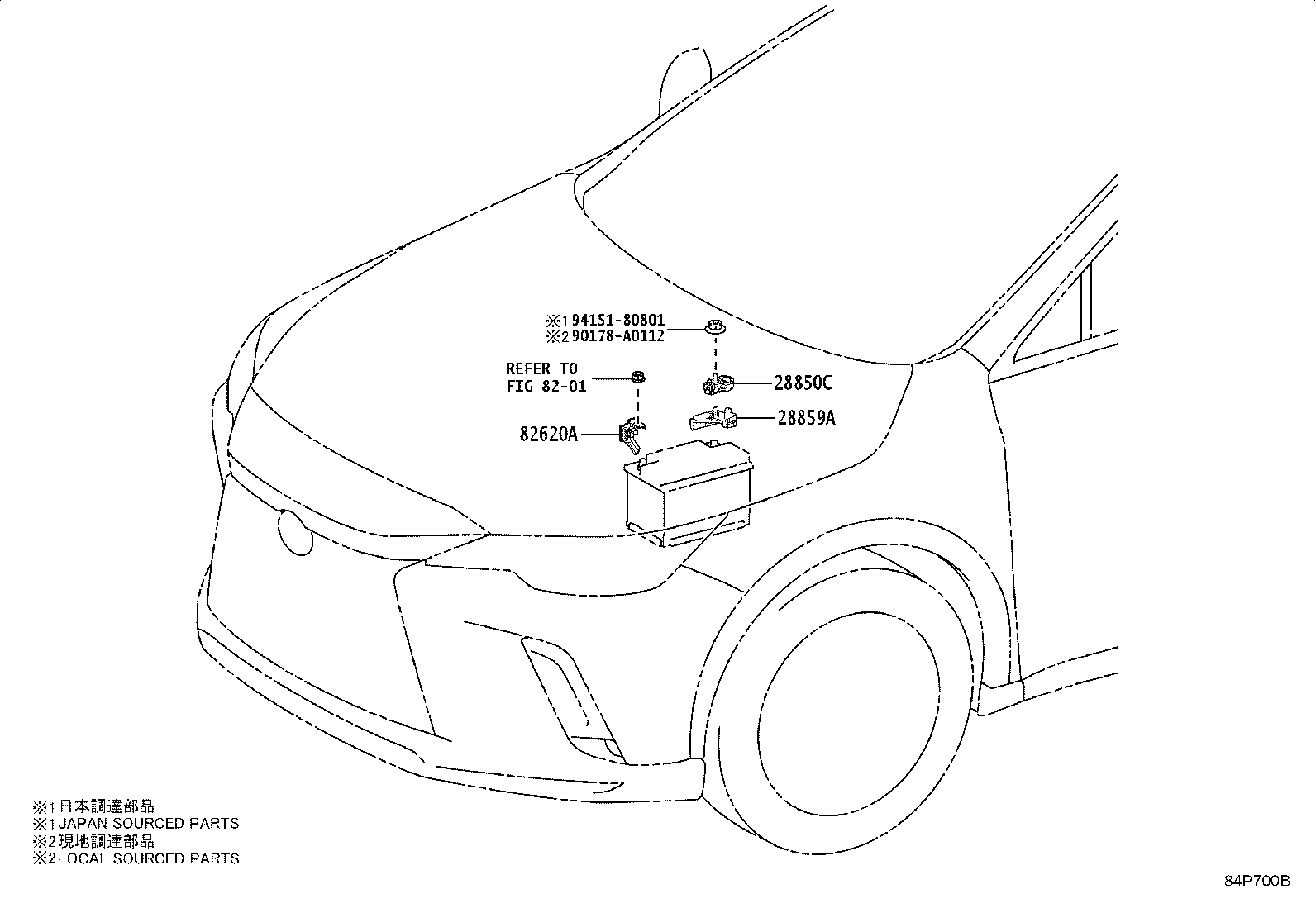

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28850C — Sensor Assy, Battery State | ||||
| 28850-K0010 |
Sensor Assy, Battery State
2022-10 → —
|
A25AFXS,T24AFTS AALH15,TALA1#,TALH17 | — | |
| 28859A — Holder, Battery Current Sensor | ||||
| 28859-F0240 |
Holder, Battery Current Sensor
2022-10 → —
|
T24AFTS TALA1# | — | |
| 82620A — Block Assy, Fusible Link | ||||
| 82620-78080 |
Block Assy, Fusible Link
2022-10 → —
|
TALA1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
