Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

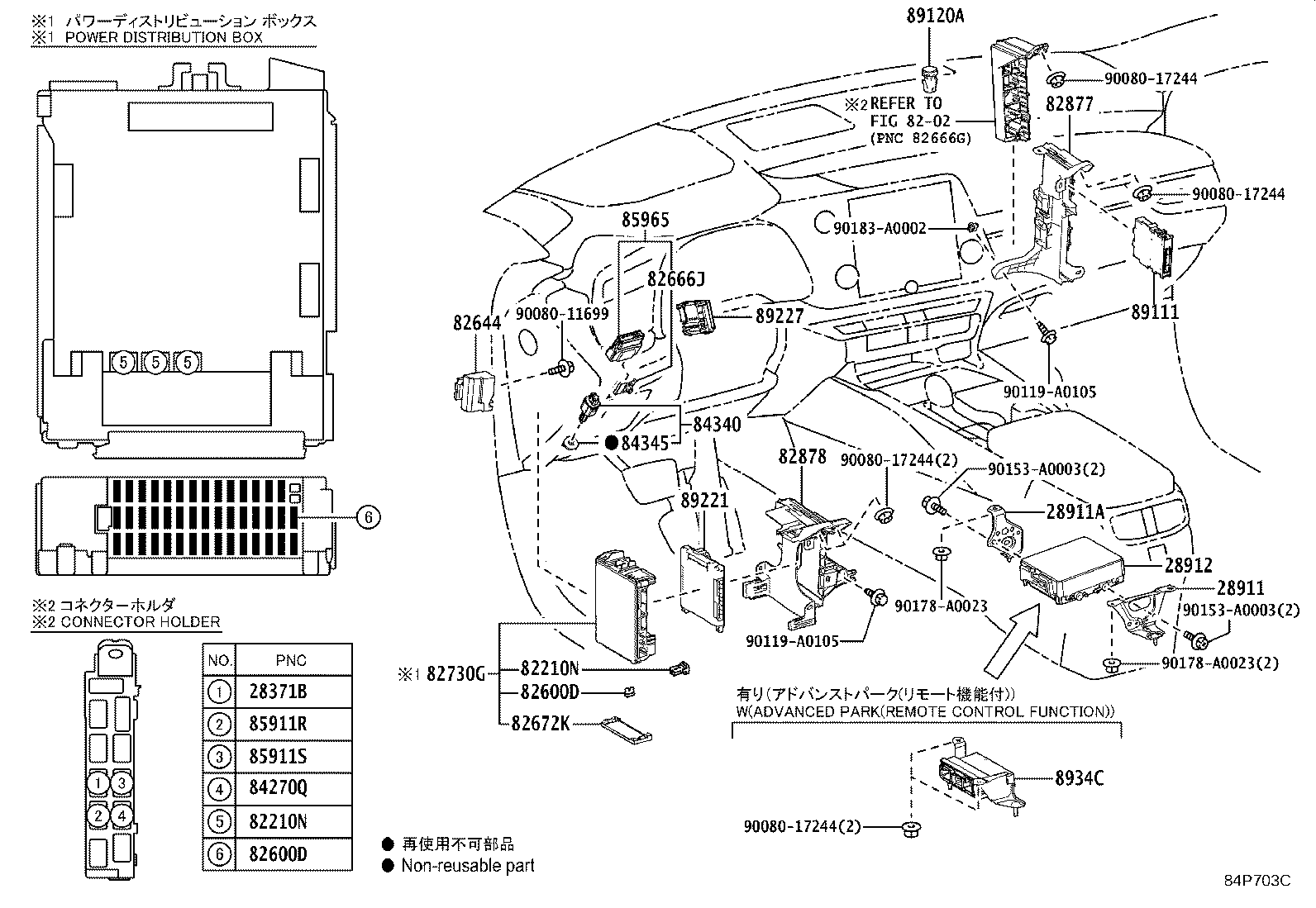

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28371B — Relay, Igr | ||||
| 90080-87026 |
Relay, Igr
2022-10 → —
|
A25AFXS,T24AFTS AALH15,TALA1#,TALH17 | — | |
| 28911 — Bracket, Integration Control Supply, NO.1 | ||||
| 28911-25070 note |
Bracket, Integration Control Supply, NO.1
2023-09 → —
|
T24AFTS TALA1# | — | |
| 28911-F0070 |
Bracket, Integration Control Supply, NO.1
2022-10 → —
|
A25AFXS,T24AFTS AALH15,TALA1#,TALH17 | — | |
| 28911A — Bracket, Integration Control Supply, NO.2 | ||||
| 28911-25080 note |
Bracket, Integration Control Supply, NO.2
2023-09 → —
|
T24AFTS TALA1# | — | |
| 28911-F0080 |
Bracket, Integration Control Supply, NO.2
2022-10 → —
|
A25AFXS,T24AFTS AALH15,TALA1#,TALH17 | — | |
| 28912 — Supply, Integration Control | ||||
| 28912-25010 |
Supply, Integration Control
2022-10 → —
|
A25AFXS,T24AFTS AALH15,TALA1#,TALH17 | — | |
| 28912-25061 note |
Supply, Integration Control
2023-09 → 2024-08
ended
|
T24AFTS TALA1# | — | |
| 28912-25062 note |
Supply, Integration Control
2024-09 → —
|
T24AFTS TALA1# | — | |
| 28912-25070 note |
Supply, Integration Control
2022-10 → —
|
A25AFXS,T24AFTS AALH15,TALH17 | — | |
| 82210N — Instrument Panel Fusible Link | ||||
| 90982-08306 note |
Instrument Panel Fusible Link
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 82600D — Instrument Panel Fuse | ||||
| 90982-09019 note |
Instrument Panel Fuse
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 90982-09020 note |
Instrument Panel Fuse
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 90982-09021 note |
Instrument Panel Fuse
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 90982-09022 note |
Instrument Panel Fuse
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 90982-09023 note |
Instrument Panel Fuse
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 90982-09024 note |
Instrument Panel Fuse
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 90982-09025 note |
Instrument Panel Fuse
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 90982-09026 note |
Instrument Panel Fuse
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 82644 — Computer, Semiconductor Power Integration | ||||
| 82644-48030 note |
Computer, Semiconductor Power Integration
2022-10 → —
|
AALH15,TALA15,TALH17 | — | |
| 82644-48030 note |
Computer, Semiconductor Power Integration
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 82644-48040 |
Computer, Semiconductor Power Integration
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 82666J — Holder, Connector, NO.3 | ||||
| 82666-26350 note |
Holder, Connector, NO.3
2022-10 → 2023-09
ended
|
AALH15,TALA1# | — | |
| 82666-26350 note |
Holder, Connector, NO.3
2022-10 → 2023-09
ended
|
AALH15,TALA1# | — | |
| 82666-26350 note |
Holder, Connector, NO.3
2022-10 → 2023-09
ended
|
TALA15 | — | |
| 82666-26350 |
Holder, Connector, NO.3
2022-10 → —
|
TALH17 | — | |
| 82666-26350 note |
Holder, Connector, NO.3
2023-09 → —
|
AALH15,TALA1# | — | |
| 82672K — Cover, Power Distribution Box | ||||
| 82672-0E210 |
Cover, Power Distribution Box
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 82730G — Box Assy, Power Distribution | ||||
| 82730-0EC20 |
Box Assy, Power Distribution
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 82877 — Box, Computer Integration, RH | ||||
| 82877-F6010 |
Box, Computer Integration, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 82878 — Box, Computer Integration, LH | ||||
| 82878-F6010 |
Box, Computer Integration, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 84270Q — Relay, Lamp Cut | ||||
| 90080-87026 note |
Relay, Lamp Cut
2022-12 → —
|
TALA1# | — | |
| 90987-02027 |
Relay, Lamp Cut
2022-10 → 2022-12
ended
|
TALA1# | — | |
| 90987-02027 note |
Relay, Lamp Cut
2022-12 → —
|
TALA1# | — | |
| 84340 — Switch Assy, Stop Lamp | ||||
| 84340-19075 |
Switch Assy, Stop Lamp
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 84345 — Adjuster, Stop Lamp Switch Mounting | ||||
| 84345-08010 |
Adjuster, Stop Lamp Switch Mounting
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 85911R — Relay, Rear Seat Heater, RH | ||||
| 90080-87026 |
Relay, Rear Seat Heater, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 90080-87026 note |
Relay, Rear Seat Heater, RH
2022-10 → —
|
AALH15,TALA1# | — | |
| 90080-87026 note |
Relay, Rear Seat Heater, RH
2022-10 → —
|
TALA15 | — | |
| 90080-87026 note |
Relay, Rear Seat Heater, RH
2022-10 → —
|
TALH17 | — | |
| 85911S — Relay, Rear Seat Heater, LH | ||||
| 90080-87026 |
Relay, Rear Seat Heater, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 90080-87026 note |
Relay, Rear Seat Heater, LH
2022-10 → —
|
AALH15,TALA1# | — | |
| 90080-87026 note |
Relay, Rear Seat Heater, LH
2022-10 → —
|
TALA15 | — | |
| 90080-87026 note |
Relay, Rear Seat Heater, LH
2022-10 → —
|
TALH17 | — | |
| 85965 — Relay, Room Lamp Control | ||||
| 85965-48010 |
Relay, Room Lamp Control
2022-10 → 2024-11
ended
|
TALH17 | — | |
| 85965-48010 note |
Relay, Room Lamp Control
2023-09 → 2024-11
ended
|
AALH15,TALA1# | — | |
| 85965-48010 note |
Relay, Room Lamp Control
2022-10 → 2023-09
ended
|
TALA15 | — | |
| 85965-48010 note |
Relay, Room Lamp Control
2022-10 → 2023-09
ended
|
AALH15,TALA1# | — | |
| 85965-48010 note |
Relay, Room Lamp Control
2022-10 → 2023-09
ended
|
AALH15,TALA1# | — | |
| 85965-78020 |
Relay, Room Lamp Control
2024-11 → —
|
TALH17 | — | |
| 85965-78020 note |
Relay, Room Lamp Control
2024-11 → —
|
AALH15,TALA1# | — | |
| 89111 — Computer, Network Gateway | ||||
| 89111-48290 note |
Computer, Network Gateway
2022-10 → 2024-09
ended
|
TALA1# | — | |
| 89111-48300 note |
Computer, Network Gateway
2022-10 → 2024-09
ended
|
AALH15,TALH17 | — | |
| 89111-48400 note |
Computer, Network Gateway
2024-10 → —
|
TALA1# | — | |
| 89111-48410 note |
Computer, Network Gateway
2024-10 → —
|
AALH15,TALH17 | — | |
| 89120A — Sensor, Automatic Light Control | ||||
| 89121-0E060 |
Sensor, Automatic Light Control
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 89221 — Computer, Multiplex Network Body | ||||
| 89221-48640 |
Computer, Multiplex Network Body
2022-10 → 2023-08
ended
|
AALH15,TALA1#,TALH17 | — | |
| 89221-48840 |
Computer, Multiplex Network Body
2023-08 → 2024-01
ended
|
AALH15,TALA1#,TALH17 | — | |
| 89221-48841 |
Computer, Multiplex Network Body
2024-02 → 2024-11
ended
|
AALH15,TALA1#,TALH17 | — | |
| 89227 — Computer, Multiplex Tilt & Telescopic | ||||
| 89227-0C040 |
Computer, Multiplex Tilt & Telescopic
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 8934C — Circuit, Second Power Supply Remote Parking | ||||
| 8934C-48010 note |
Circuit, Second Power Supply Remote Parking
2023-09 → —
|
TALA1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
