Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

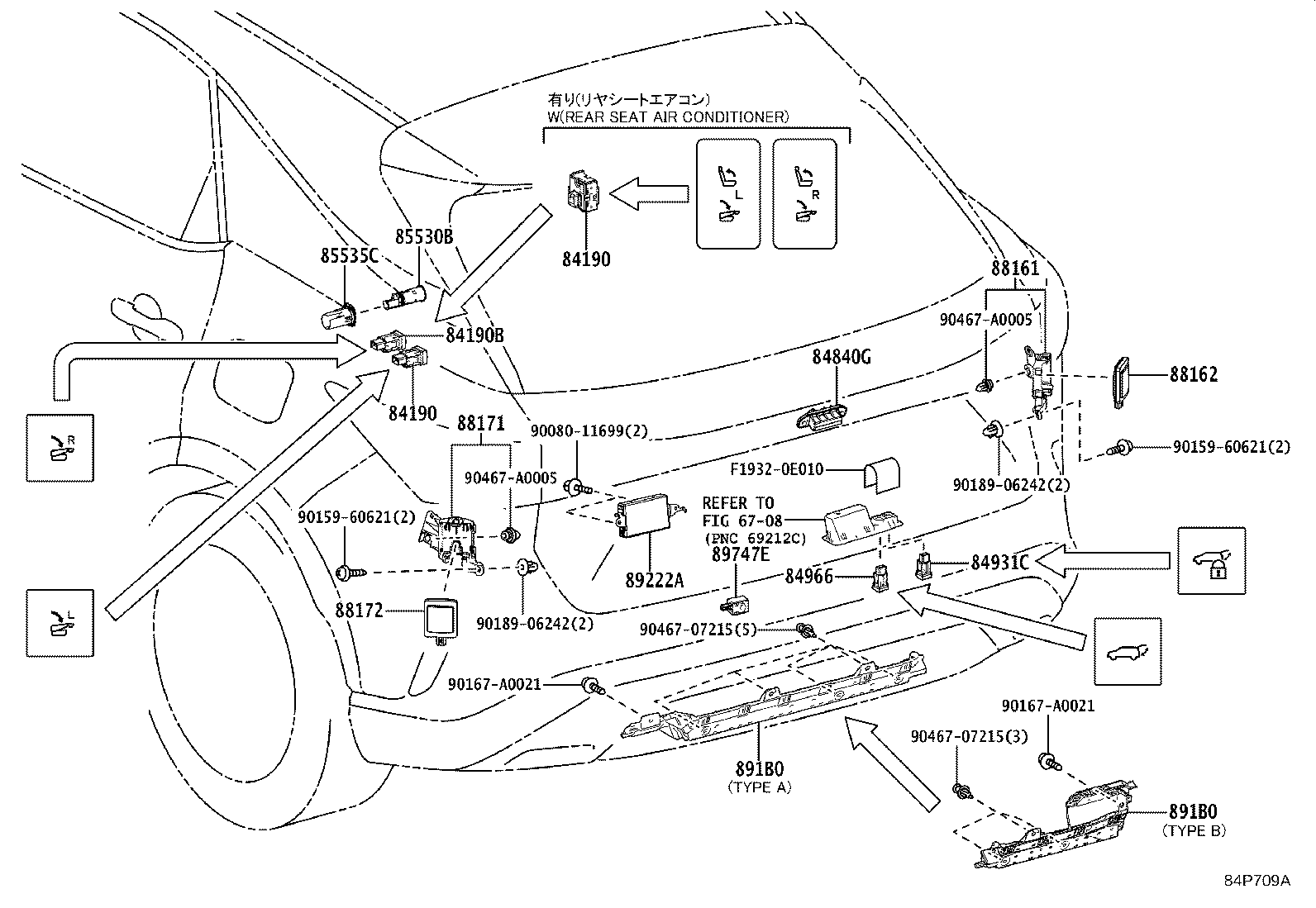

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84190 — Switch Assy, Fold Seat | ||||
| 84190-0E040 |
Switch Assy, Fold Seat
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 84190-0E100 note |
Switch Assy, Fold Seat
2022-10 → —
|
AALH15,TALA1# | — | |
| 84190-0E100 note |
Switch Assy, Fold Seat
2022-10 → —
|
TALA15 | — | |
| 84190-0E100 note |
Switch Assy, Fold Seat
2022-10 → —
|
TALH17 | — | |
| 84190B — Switch Assy, Fold Seat, NO.2 | ||||
| 84190-0E050 |
Switch Assy, Fold Seat, NO.2
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 84840G — Switch Assy, Back Door Opener | ||||
| 84840-47040 |
Switch Assy, Back Door Opener
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 84931C — Switch, Back Door Control | ||||
| 84930-F6020 |
Switch, Back Door Control
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 84966 — Switch, Power Back Door Control | ||||
| 84966-F6010 |
Switch, Power Back Door Control
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 85530B — Socket Assy, Power Outlet, Rear NO.1 | ||||
| 85530-52010 |
Socket Assy, Power Outlet, Rear NO.1
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 85535C — Cover, Power Outlet Socket, Rear | ||||
| 85535-78010 |
Cover, Power Outlet Socket, Rear
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 88161 — Bracket, Blind Spot Monitor, RH | ||||
| 88161-0E020 |
Bracket, Blind Spot Monitor, RH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 88162 — Sensor, Blind Spot Monitor, RH | ||||
| 88162-0E220 |
Sensor, Blind Spot Monitor, RH
2022-10 → 2024-09
ended
|
AALH15,TALA1#,TALH17 | — | |
| 88171 — Bracket, Blind Spot Monitor, LH | ||||
| 88171-0E020 |
Bracket, Blind Spot Monitor, LH
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 88172 — Sensor, Blind Spot Monitor, LH | ||||
| 88162-0E220 |
Sensor, Blind Spot Monitor, LH
2022-10 → 2024-09
ended
|
AALH15,TALA1#,TALH17 | — | |
| 891B0 — Sensor Assy, Kick Door Control | ||||
| 891B0-0E020 note |
Sensor Assy, Kick Door Control
2022-10 → 2024-02
ended
|
AALH15,TALA1#,TALH17 | — | |
| 891B0-0E021 note |
Sensor Assy, Kick Door Control
2024-03 → —
|
AALH15,TALA1#,TALH17 | — | |
| 891B0-48050 note |
Sensor Assy, Kick Door Control
2022-10 → 2024-03
ended
|
AALH15,TALA1#,TALH17 | — | |
| 891B0-48050 note |
Sensor Assy, Kick Door Control
2022-10 → 2024-03
ended
|
AALH15,TALA1#,TALH17 | — | |
| 891B0-48051 note |
Sensor Assy, Kick Door Control
2024-04 → —
|
AALH15,TALA1#,TALH17 | — | |
| 891B0-48051 note |
Sensor Assy, Kick Door Control
2024-04 → —
|
AALH15,TALA1#,TALH17 | — | |
| 89222A — Computer, Multiplex Network Door | ||||
| 89222-0E190 |
Computer, Multiplex Network Door
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 89747E — Buzzer, Power Back Door Warning | ||||
| 89747-0R020 |
Buzzer, Power Back Door Warning
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
