Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

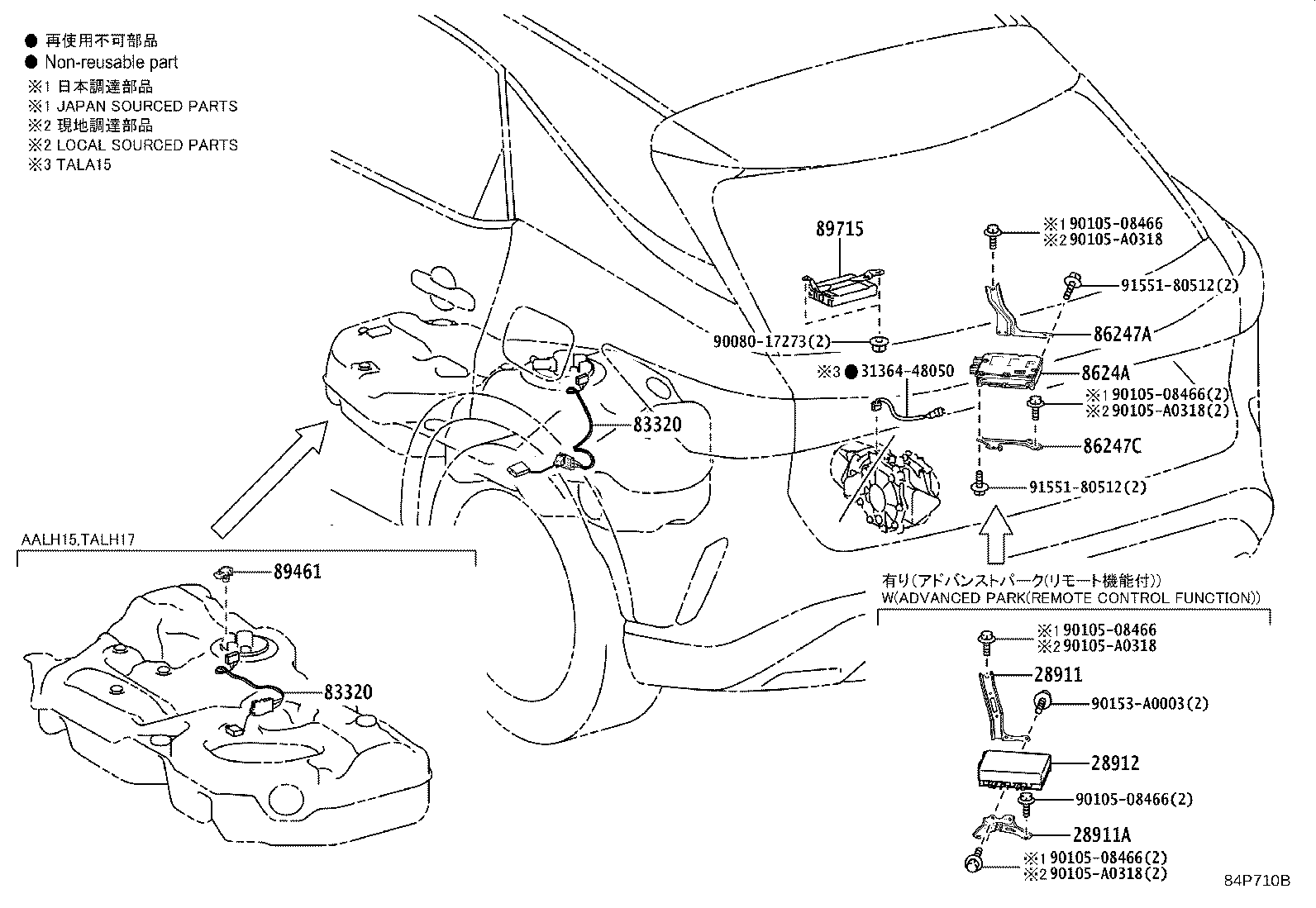

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28911 — Bracket, Integration Control Supply, NO.1 | ||||
| 28911-25070 note |
Bracket, Integration Control Supply, NO.1
2023-09 → —
|
T24AFTS TALA1# | — | |
| 28911-F0070 |
Bracket, Integration Control Supply, NO.1
2022-10 → —
|
A25AFXS,T24AFTS AALH15,TALA1#,TALH17 | — | |
| 28911A — Bracket, Integration Control Supply, NO.2 | ||||
| 28911-25080 note |
Bracket, Integration Control Supply, NO.2
2023-09 → —
|
T24AFTS TALA1# | — | |
| 28911-F0080 |
Bracket, Integration Control Supply, NO.2
2022-10 → —
|
A25AFXS,T24AFTS AALH15,TALA1#,TALH17 | — | |
| 28912 — Supply, Integration Control | ||||
| 28912-25010 |
Supply, Integration Control
2022-10 → —
|
A25AFXS,T24AFTS AALH15,TALA1#,TALH17 | — | |
| 28912-25061 note |
Supply, Integration Control
2023-09 → 2024-08
ended
|
T24AFTS TALA1# | — | |
| 28912-25062 note |
Supply, Integration Control
2024-09 → —
|
T24AFTS TALA1# | — | |
| 28912-25070 note |
Supply, Integration Control
2022-10 → —
|
A25AFXS,T24AFTS AALH15,TALH17 | — | |
| 83320 — Gage Assy, Fuel Sender | ||||
| 83320-0E061 |
Gage Assy, Fuel Sender
2022-10 → —
|
AALH15,TALH17 | — | |
| 83320-0E120 |
Gage Assy, Fuel Sender
2022-10 → —
|
TALA1# | — | |
| 86247A — Bracket, Voltage Inverter | ||||
| 86247-48160 note |
Bracket, Voltage Inverter
2022-10 → —
|
AALH15,TALH17 | — | |
| 86247C — Bracket, Voltage Inverter, NO.2 | ||||
| 86247-48170 note |
Bracket, Voltage Inverter, NO.2
2022-10 → —
|
AALH15,TALH17 | — | |
| 8624A — Inverter, Voltage | ||||
| 8624A-48010 note |
Inverter, Voltage
2022-10 → —
|
AALH15,TALH17 | — | |
| 89461 — Sensor, Vapor Pressure | ||||
| 89461-48020 |
Sensor, Vapor Pressure
2022-10 → —
|
AALH15,TALH17 | — | |
| 89715 — Computer, Fold Seat Control | ||||
| 89715-0E050 note |
Computer, Fold Seat Control
2022-10 → —
|
AALH15,TALA1# | — | |
| 89715-0E050 note |
Computer, Fold Seat Control
2022-10 → —
|
TALA15 | — | |
| 89715-0E050 note |
Computer, Fold Seat Control
2022-10 → —
|
TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
