Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

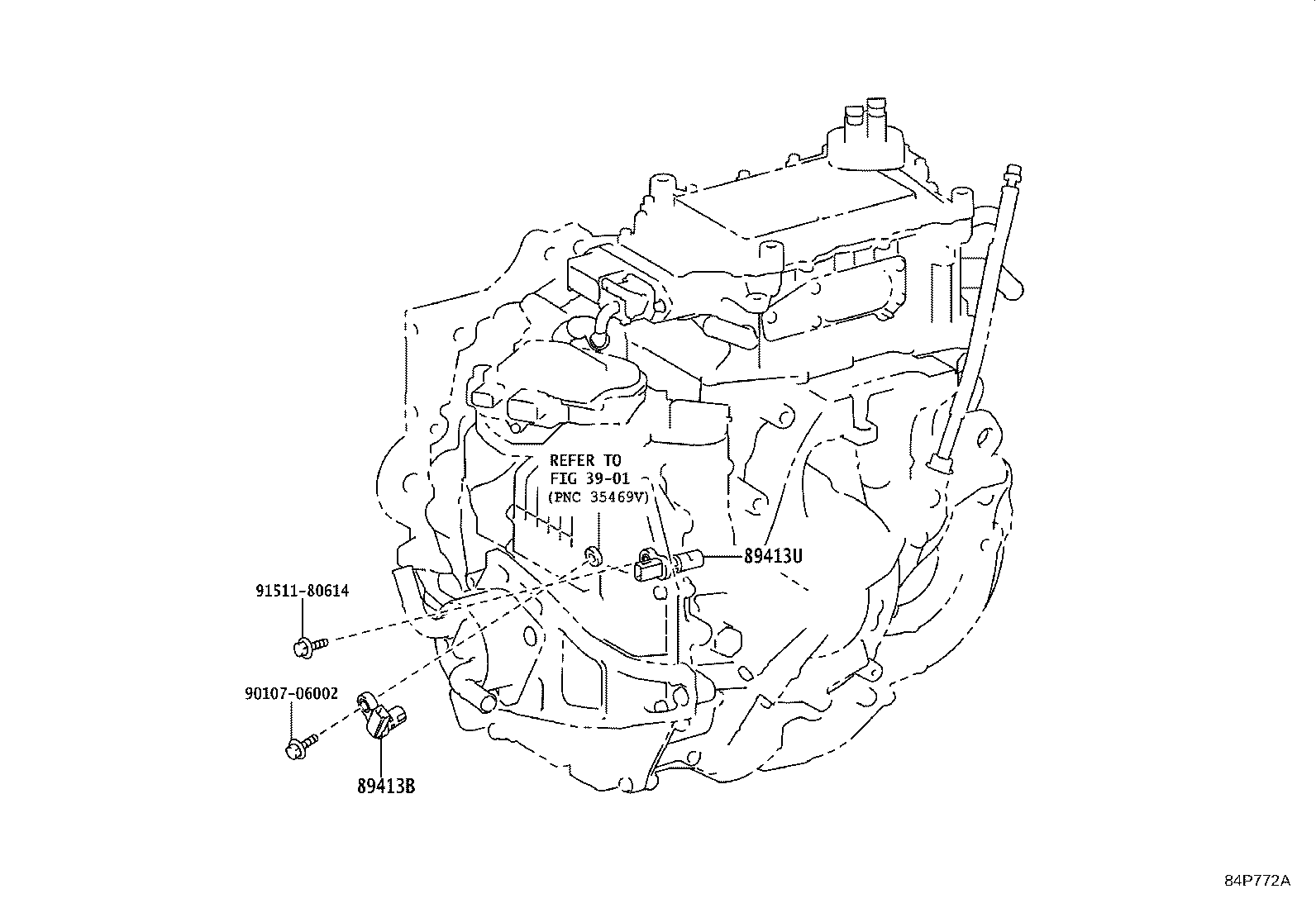

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89413B — Sensor, Transmission Revolution | ||||
| 89413-30020 |
Sensor, Transmission Revolution
2022-10 → —
|
TALH17 | — | |
| 89413U — Sensor, Transmission Revolution, NO.2 | ||||
| 89413-30030 |
Sensor, Transmission Revolution, NO.2
2022-10 → —
|
TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
