Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

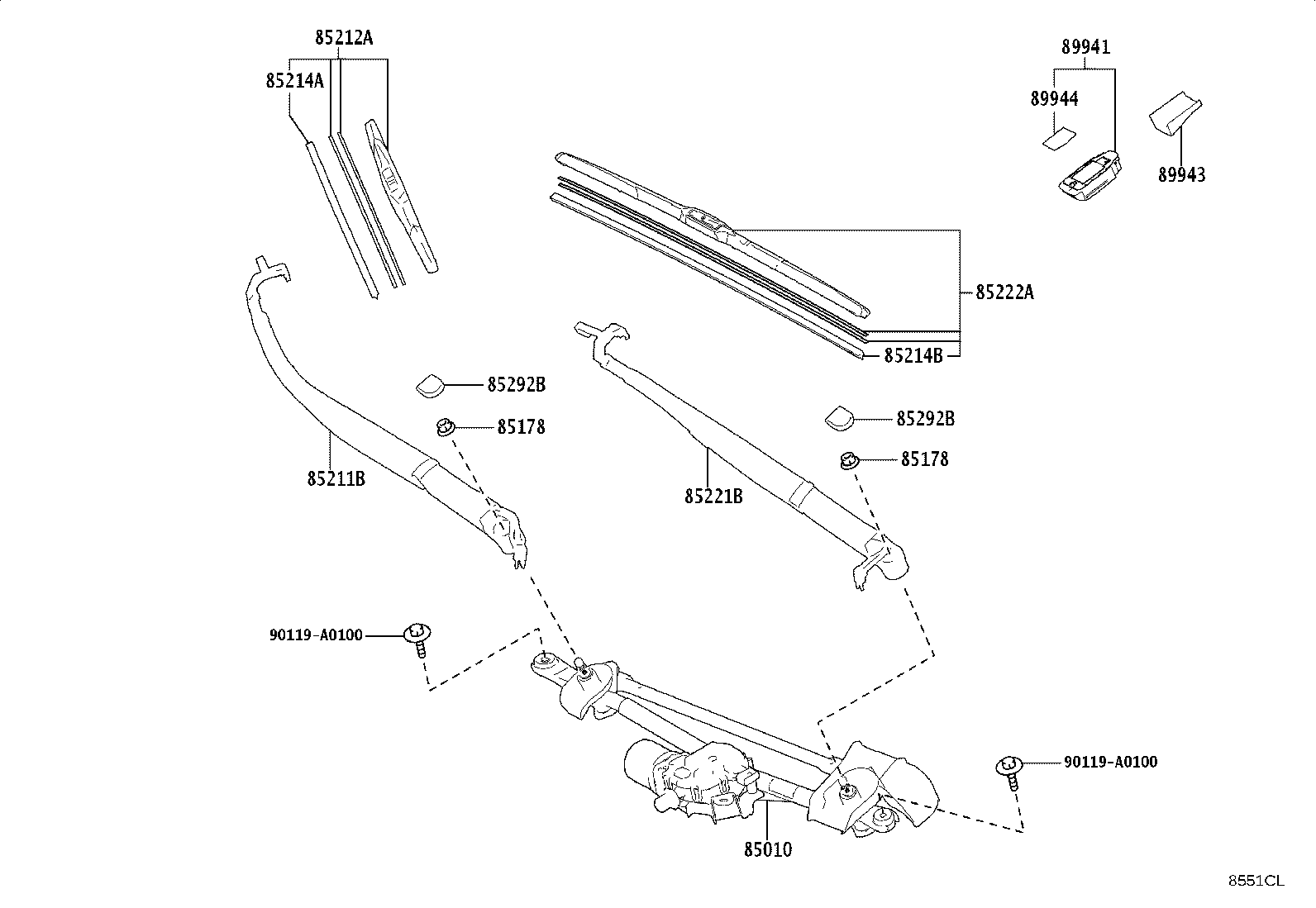

14 parts on this figure

Part number	Description	Fitment	Price
85010 — Motor & Link Assy, FR Wiper
85010-0E200	Motor & Link Assy, FR Wiper 2022-10 → 2022-11 ended	AALH15,TALA1#,TALH17	—
85010-0E201	Motor & Link Assy, FR Wiper 2022-11 → 2023-04 ended	AALH15,TALA1#,TALH17	—
85010-0E202	Motor & Link Assy, FR Wiper 2023-05 → —	AALH15,TALA1#,TALH17	—
85178 — Nut (FOR FRONT WIPER ARM SETTING)
90182-A0017	Nut (FOR FRONT WIPER ARM SETTING) 2022-10 → —	AALH15,TALA1#,TALH17	—
85211B — Arm, Front Wiper, RH
85211-0E170	Arm, Front Wiper, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
85212A — Blade, FR Wiper, RH
85212-48190	Blade, FR Wiper, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
85214A — Rubber, Wiper, RH
85214-33180	Rubber, Wiper, RH 2022-10 → —	AALH15,TALA1#,TALH17	—
85214B — Rubber, Wiper, LH
85214-62010	Rubber, Wiper, LH 2022-10 → —	AALH15,TALA1#,TALH17	—
85221B — Arm, Front Wiper, LH
85221-0E180	Arm, Front Wiper, LH 2022-10 → —	AALH15,TALA1#,TALH17	—
85222A — Blade, FR Wiper, LH
85222-48200	Blade, FR Wiper, LH 2022-10 → —	AALH15,TALA1#,TALH17	—
85292B — Cap, Front Wiper Arm Head
85292-AA010	Cap, Front Wiper Arm Head 2022-10 → —	AALH15,TALA1#,TALH17	—
89941 — Sensor, Rain
89941-78020	Sensor, Rain 2022-10 → —	AALH15,TALA1#,TALH17	—
89943 — Cover, Rain Sensor
89943-76020	Cover, Rain Sensor 2022-10 → —	AALH15,TALA1#,TALH17	—
89944 — Tape, Rain Sensor
89944-42020	Tape, Rain Sensor 2022-10 → —	AALH15,TALA1#,TALH17	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
