Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

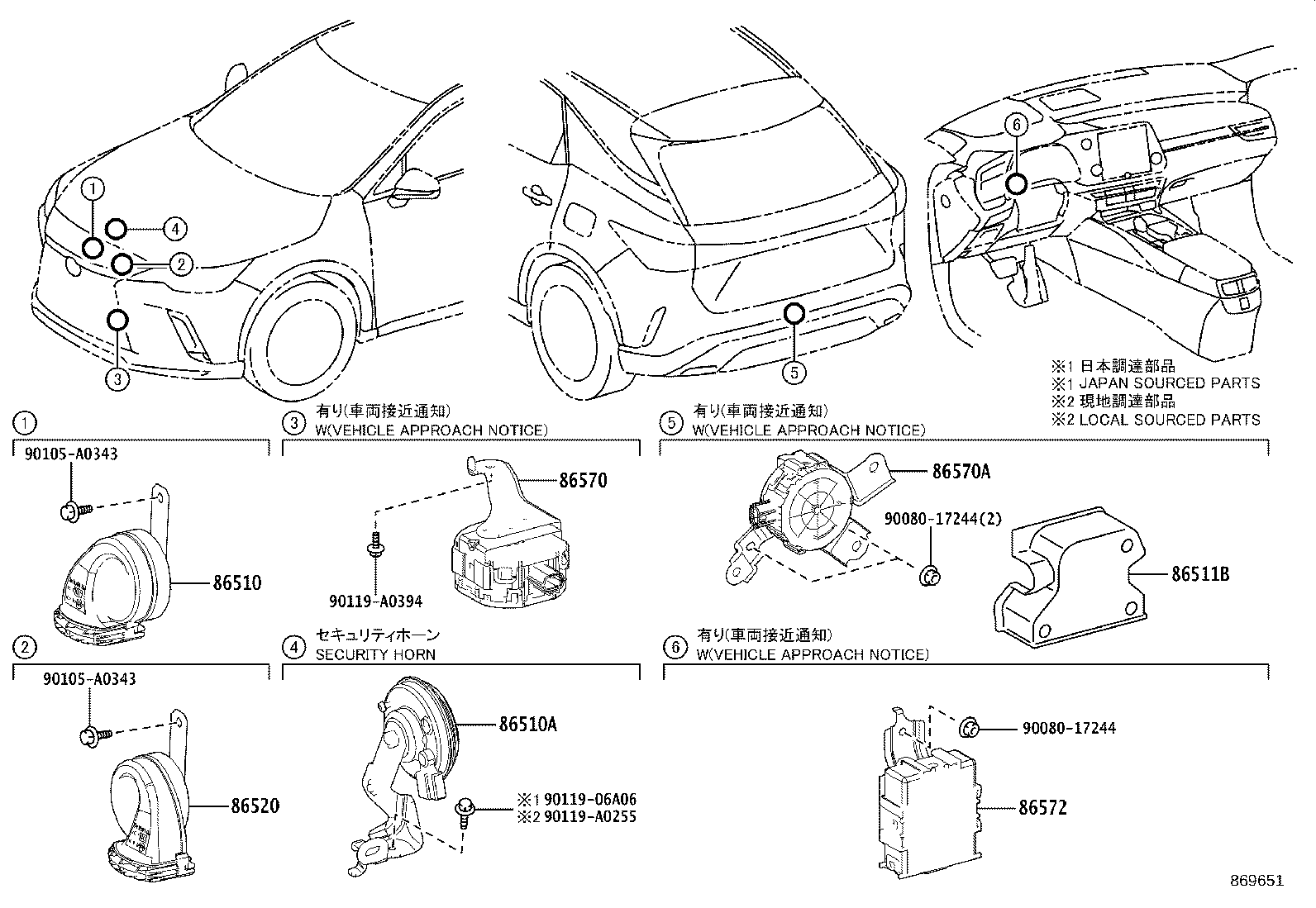

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86510 — Horn Assy, High Pitched | ||||
| 86510-48190 |
Horn Assy, High Pitched
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86510A — Horn Assy, Security | ||||
| 86560-06060 |
Horn Assy, Security
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86511B — Cover, Horn | ||||
| 86511-48010 |
Cover, Horn
2022-10 → —
|
AALH15,TALH17 | — | |
| 86520 — Horn Assy, Low Pitched | ||||
| 86520-30670 |
Horn Assy, Low Pitched
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86570 — Speaker Assy, Vehicle Approaching | ||||
| 86570-48090 |
Speaker Assy, Vehicle Approaching
2022-10 → —
|
AALH15,TALH17 | — | |
| 86570A — Speaker Assy, Vehicle Approaching, NO.2 | ||||
| 86570-48100 |
Speaker Assy, Vehicle Approaching, NO.2
2022-10 → —
|
AALH15,TALH17 | — | |
| 86572 — Controller, Vehicle Approaching Speaker | ||||
| 86572-48180 |
Controller, Vehicle Approaching Speaker
2022-10 → 2024-11
ended
|
AALH15,TALH17 | — | |
| 86572-48330 |
Controller, Vehicle Approaching Speaker
2024-11 → —
|
AALH15,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
