Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

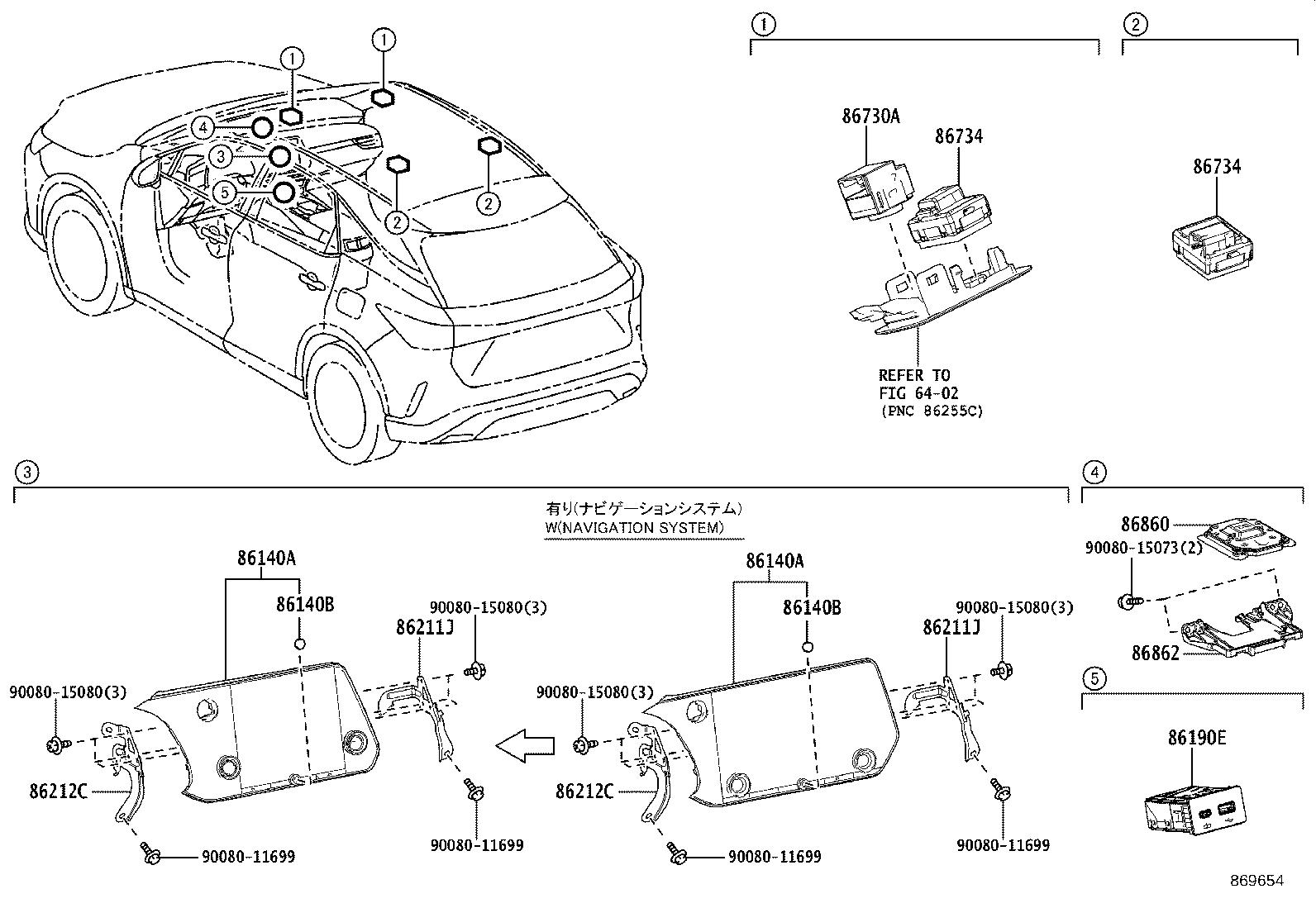

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86140A — Receiver Assy, Radio & Display | ||||
| 86100-0E320 note |
Receiver Assy, Radio & Display
2022-10 → 2024-11
ended
|
AALH15,TALA1#,TALH17 | — | |
| 86100-0E320 note |
Receiver Assy, Radio & Display
2022-10 → 2024-11
ended
|
AALH15,TALA1#,TALH17 | — | |
| 86100-0E400 note |
Receiver Assy, Radio & Display
2022-10 → —
|
AALH15,TALA15,TALH17 | — | |
| 86100-0E400 note |
Receiver Assy, Radio & Display
2022-10 → —
|
AALH15,TALA15,TALH17 | — | |
| 86100-0E400 note |
Receiver Assy, Radio & Display
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86100-0E400 note |
Receiver Assy, Radio & Display
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86100-0E400 note |
Receiver Assy, Radio & Display
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86100-0E400 note |
Receiver Assy, Radio & Display
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86100-0E400 note |
Receiver Assy, Radio & Display
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86100-0E400 note |
Receiver Assy, Radio & Display
2022-10 → —
|
AALH15,TALA15,TALH17 | — | |
| 86100-0E400 note |
Receiver Assy, Radio & Display
2022-10 → —
|
AALH15,TALA15,TALH17 | — | |
| 86100-0E400 note |
Receiver Assy, Radio & Display
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86100-0EB00 note |
Receiver Assy, Radio & Display
2024-11 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86100-0EB00 note |
Receiver Assy, Radio & Display
2024-11 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86140-0E790 note |
Receiver Assy, Radio & Display
2022-10 → 2024-11
ended
|
AALH15,TALA1#,TALH17 | — | |
| 86140-0E800 note |
Receiver Assy, Radio & Display
2022-10 → —
|
AALH15,TALA15 | — | |
| 86140-0E800 note |
Receiver Assy, Radio & Display
2022-10 → —
|
AALH15,TALA1# | — | |
| 86140-0E800 note |
Receiver Assy, Radio & Display
2022-10 → —
|
AALH15,TALA1# | — | |
| 86140-0E800 note |
Receiver Assy, Radio & Display
2022-10 → —
|
AALH15,TALA15 | — | |
| 86140-0E800 note |
Receiver Assy, Radio & Display
2022-10 → 2024-11
ended
|
TALH17 | — | |
| 86140-0E800 note |
Receiver Assy, Radio & Display
2022-10 → 2024-11
ended
|
TALH17 | — | |
| 86140-0E800 note |
Receiver Assy, Radio & Display
2022-10 → 2024-11
ended
|
TALH17 | — | |
| 86140-0E800 note |
Receiver Assy, Radio & Display
2022-10 → 2024-11
ended
|
TALH17 | — | |
| 86140-0EF30 note |
Receiver Assy, Radio & Display
2024-11 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86140B — Knob, Radio & Display Receiver Switch | ||||
| 90011-25347 note |
Knob, Radio & Display Receiver Switch
2024-11 → —
|
AALH15,TALA15,TALH17 | — | |
| 90011-25347 note |
Knob, Radio & Display Receiver Switch
2024-11 → —
|
AALH15,TALA15,TALH17 | — | |
| 90011-25347 note |
Knob, Radio & Display Receiver Switch
2024-11 → —
|
AALH15,TALA15,TALH17 | — | |
| 90011-25347 note |
Knob, Radio & Display Receiver Switch
2024-11 → —
|
AALH15,TALA15 | — | |
| 90011-25347 note |
Knob, Radio & Display Receiver Switch
2024-11 → —
|
AALH15,TALA1#,TALH17 | — | |
| 90011-25347 note |
Knob, Radio & Display Receiver Switch
2024-11 → —
|
AALH15,TALA1#,TALH17 | — | |
| 90011-25347 note |
Knob, Radio & Display Receiver Switch
2024-11 → —
|
AALH15,TALA1#,TALH17 | — | |
| 90011-25347 note |
Knob, Radio & Display Receiver Switch
2024-11 → —
|
AALH15,TALA1#,TALH17 | — | |
| 90011-25347 note |
Knob, Radio & Display Receiver Switch
2024-11 → —
|
AALH15,TALA1#,TALH17 | — | |
| 90011-25347 note |
Knob, Radio & Display Receiver Switch
2024-11 → —
|
AALH15,TALA1#,TALH17 | — | |
| 90011-25347 note |
Knob, Radio & Display Receiver Switch
2024-11 → —
|
AALH15,TALA1# | — | |
| 90011-25347 note |
Knob, Radio & Display Receiver Switch
2024-11 → —
|
AALH15,TALA15,TALH17 | — | |
| 90011-25347 note |
Knob, Radio & Display Receiver Switch
2024-11 → —
|
AALH15,TALA15 | — | |
| 90011-25347 |
Knob, Radio & Display Receiver Switch
2022-10 → 2024-11
ended
|
AALH15,TALA1#,TALH17 | — | |
| 90011-25347 note |
Knob, Radio & Display Receiver Switch
2024-11 → —
|
AALH15,TALA1# | — | |
| 86190E — Adapter Assy, Stereo Jack | ||||
| 86190-48110 |
Adapter Assy, Stereo Jack
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86211J — Bracket, Radio Receiver, NO.1 | ||||
| 86211-0E240 |
Bracket, Radio Receiver, NO.1
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86212C — Bracket, Radio Receiver, NO.2 | ||||
| 86212-0E240 |
Bracket, Radio Receiver, NO.2
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86730A — Microphone Assy, Telephone | ||||
| 86730-0C010 |
Microphone Assy, Telephone
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86734 — Microphone, Active Noise Control | ||||
| 86734-08010 |
Microphone, Active Noise Control
2022-10 → —
|
TALA1#,TALH17 | — | |
| 86860 — Antenna Assy, Navigation | ||||
| 86880-02090 note |
Antenna Assy, Navigation
2022-10 → 2023-01
ended
|
AALH15,TALA1# | — | |
| 86880-02090 |
Antenna Assy, Navigation
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86880-02090 note |
Antenna Assy, Navigation
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86880-02090 note |
Antenna Assy, Navigation
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86862 — Bracket, Navigation Antenna | ||||
| 86862-48060 note |
Bracket, Navigation Antenna
2022-10 → 2023-01
ended
|
AALH15,TALA1# | — | |
| 86862-48060 |
Bracket, Navigation Antenna
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86862-48060 note |
Bracket, Navigation Antenna
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86862-48060 note |
Bracket, Navigation Antenna
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
