Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

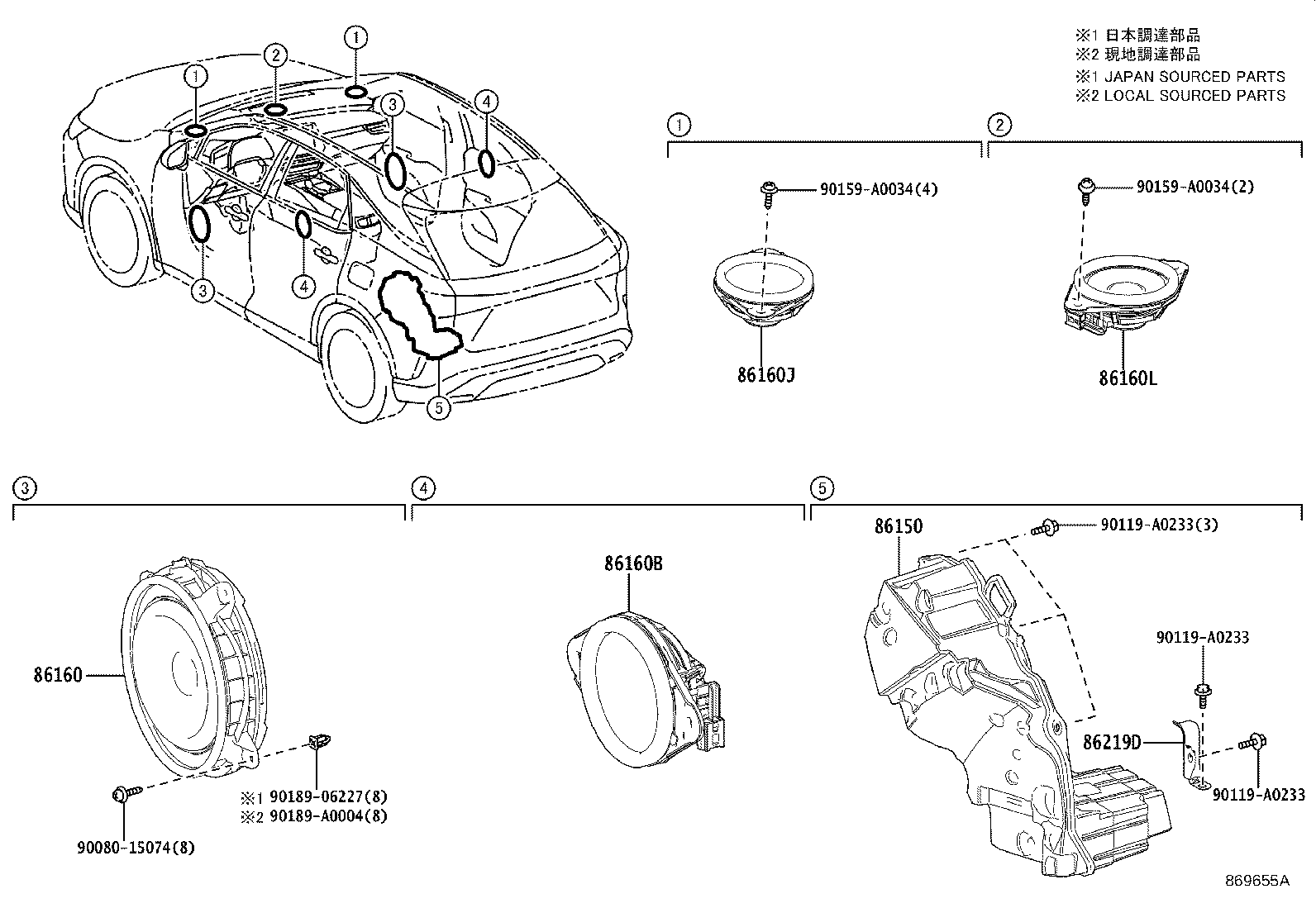

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86150 — Speaker Assy, W/Box, NO.1 | ||||
| 86150-0E130 |
Speaker Assy, W/Box, NO.1
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86150-0E140 note |
Speaker Assy, W/Box, NO.1
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86160 — Speaker Assy, Front NO.1 | ||||
| 86160-0E380 |
Speaker Assy, Front NO.1
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86160-0WY40 note |
Speaker Assy, Front NO.1
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86160B — Speaker Assy, Rear | ||||
| 86160-0E400 |
Speaker Assy, Rear
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86160-0WS20 note |
Speaker Assy, Rear
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86160J — Speaker Assy, Front NO.3 | ||||
| 86160-0E400 |
Speaker Assy, Front NO.3
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86160-0WS20 note |
Speaker Assy, Front NO.3
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86160L — Speaker Assy, Front NO.4 | ||||
| 86160-0E390 |
Speaker Assy, Front NO.4
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86160-0WS20 note |
Speaker Assy, Front NO.4
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86219D — Bracket, Speaker, Rear NO.1 | ||||
| 86219-0E010 |
Bracket, Speaker, Rear NO.1
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
