Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

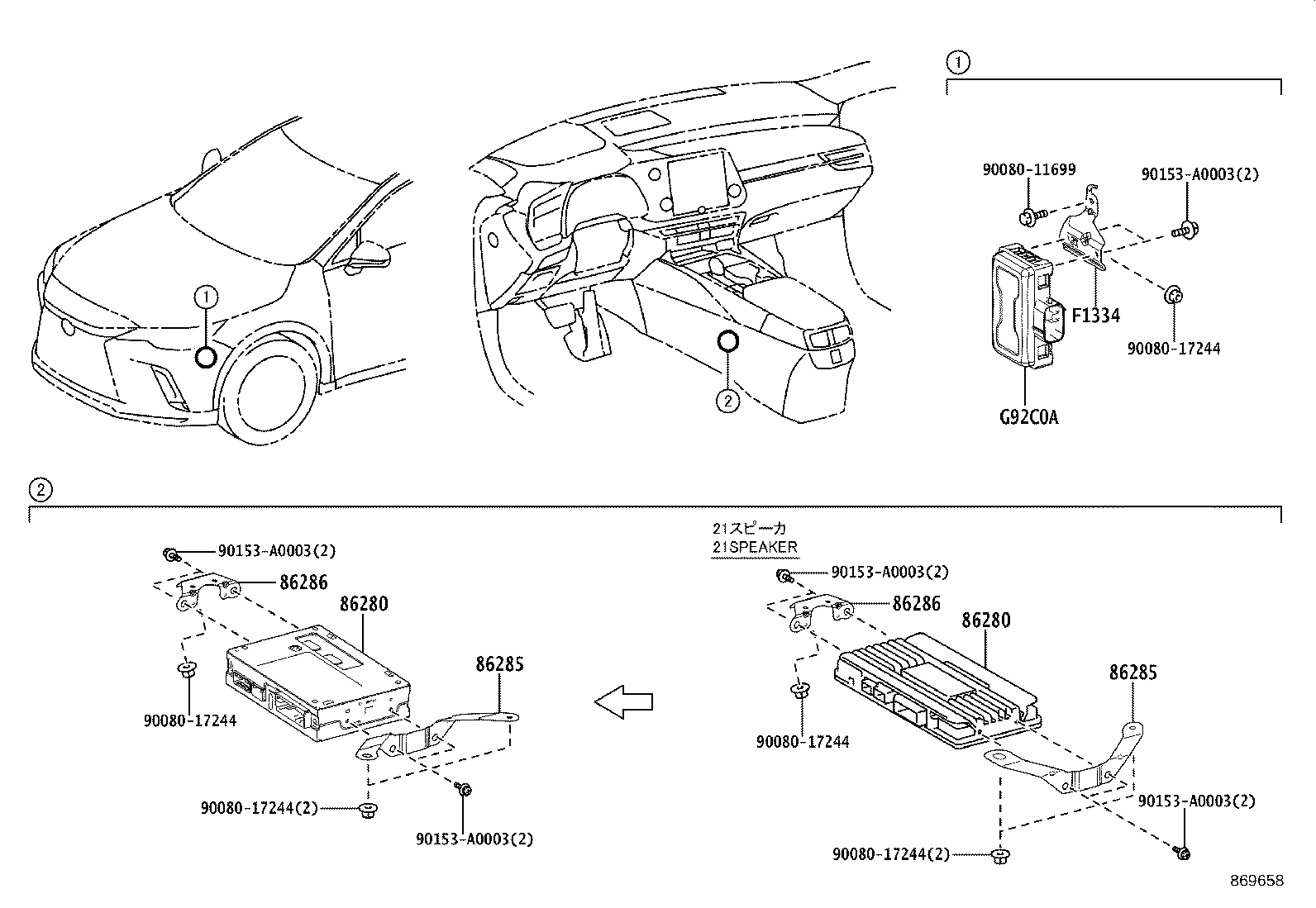

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86280 — Amplifier Assy, Stereo Component | ||||
| 86280-0E280 note |
Amplifier Assy, Stereo Component
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86280-0E290 note |
Amplifier Assy, Stereo Component
2022-10 → 2024-07
ended
|
AALH15,TALA1#,TALH17 | — | |
| 86280-0E291 note |
Amplifier Assy, Stereo Component
2024-08 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86280-0E310 |
Amplifier Assy, Stereo Component
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86285 — Bracket, Amplifier, NO.1 | ||||
| 86285-0E130 |
Bracket, Amplifier, NO.1
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86285-0E140 note |
Bracket, Amplifier, NO.1
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 86286 — Bracket, Amplifier, NO.2 | ||||
| 86286-0E120 |
Bracket, Amplifier, NO.2
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| F1334 — Bracket, Converter Control, NO.1 | ||||
| F1334-0E020 |
Bracket, Converter Control, NO.1
2022-10 → —
|
TALA1# | — | |
| G92C0A — Converter Assy, Eco-run Vehicle | ||||
| G92C0-30020 |
Converter Assy, Eco-run Vehicle
2022-10 → —
|
TALA1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
