Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

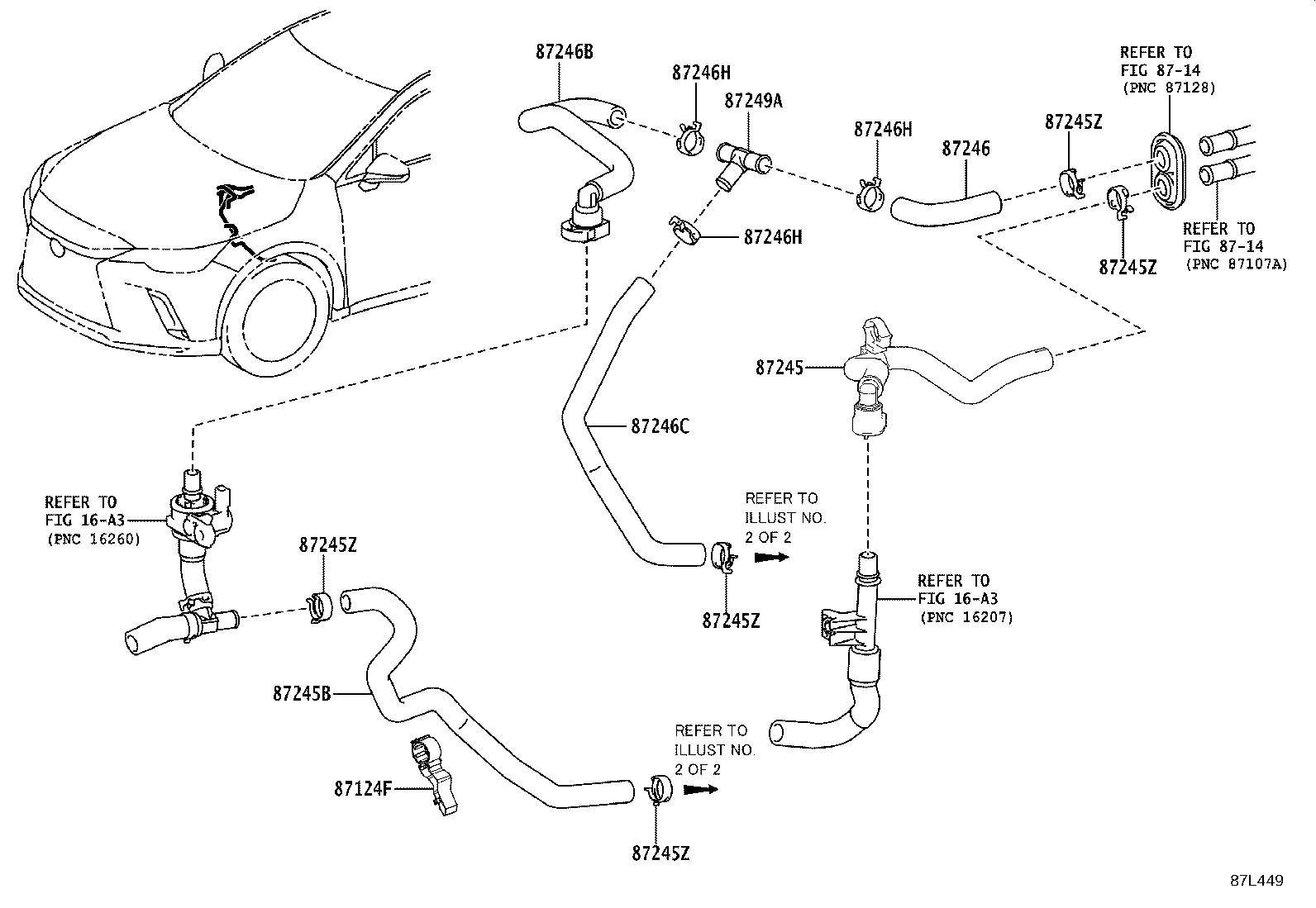

Exploded illustration 87L449 8714 — not listed in this catalogue 87245Z — CLIP OR CLAMP (FOR HEATER WATER HOSE) (3 parts) 87245Z — CLIP OR CLAMP (FOR HEATER WATER HOSE) (3 parts) 87245Z — CLIP OR CLAMP (FOR HEATER WATER HOSE) (3 parts) 87245Z — CLIP OR CLAMP (FOR HEATER WATER HOSE) (3 parts) 87245Z — CLIP OR CLAMP (FOR HEATER WATER HOSE) (3 parts) 87246H — CLIP OR CLAMP(FOR HEATER WATER HOSE) (2 parts) 87246H — CLIP OR CLAMP(FOR HEATER WATER HOSE) (2 parts) 87246 — HOSE, HEATER WATER, OUTLET (3 parts) 87245 — HOSE, HEATER WATER, INLET (3 parts) 87249A — PIPE, HEATER WATER OUTLET, A (1 parts) 87124F — CLAMP, HEATER HOSE, NO.1 (3 parts) 87245B — HOSE, HEATER WATER, INLET B (1 parts) 87246C — HOSE, HEATER WATER, OUTLET C (1 parts) 87246H — CLIP OR CLAMP(FOR HEATER WATER HOSE) (2 parts) 87246B — HOSE, HEATER WATER, OUTLET B (2 parts) 8714 — not listed in this catalogue
87L449 · 15 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
19 parts on this figure
Part number Description Fitment Price
87124F — Clamp, Heater Hose, NO.1
16581-0P130 Clamp, Heater Hose, NO.1
2022-10 → —
AALH15 —
16581-36140 note Clamp, Heater Hose, NO.1
2022-10 → —
TALH17 —
16581-36140 Clamp, Heater Hose, NO.1
2022-10 → —
TALA1# —
87245 — Hose, Heater Water, Inlet
87209-0E720 Hose, Heater Water, Inlet
2022-10 → —
AALH15 —
87209-0E740 Hose, Heater Water, Inlet
2022-10 → —
TALH17 —
87209-0E860 Hose, Heater Water, Inlet
2022-10 → —
TALA1# —
87245B — Hose, Heater Water, Inlet B
87245-0E490 Hose, Heater Water, Inlet B
2022-10 → —
AALH15 —
87245Z — Clip OR Clamp (FOR HEATER WATER HOSE)
90466-A0029 Clip OR Clamp (FOR HEATER WATER HOSE)
2022-10 → —
AALH15 —
90466-A0029 Clip OR Clamp (FOR HEATER WATER HOSE)
2022-10 → —
TALA1# —
90466-A0029 Clip OR Clamp (FOR HEATER WATER HOSE)
2022-10 → —
TALH17 —
87246 — Hose, Heater Water, Outlet
87245-0E530 Hose, Heater Water, Outlet
2022-10 → —
AALH15 —
87245-0EC40 Hose, Heater Water, Outlet
2022-10 → —
TALA1# —
87245-0EC50 Hose, Heater Water, Outlet
2022-10 → —
TALH17 —
87246B — Hose, Heater Water, Outlet B
87209-0E650 Hose, Heater Water, Outlet B
2022-10 → —
AALH15 —
87209-0E830 Hose, Heater Water, Outlet B
2022-10 → —
TALH17 —
87246C — Hose, Heater Water, Outlet C
87245-0E540 Hose, Heater Water, Outlet C
2022-10 → —
AALH15 —
87246H — Clip OR Clamp(FOR HEATER WATER HOSE)
90466-A0029 note Clip OR Clamp(FOR HEATER WATER HOSE)
2022-10 → —
AALH15 —
96138-42501 note Clip OR Clamp(FOR HEATER WATER HOSE)
2022-10 → —
AALH15 —
87249A — Pipe, Heater Water Outlet, A
87248-0E170 Pipe, Heater Water Outlet, A
2022-10 → —
AALH15 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
