Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09

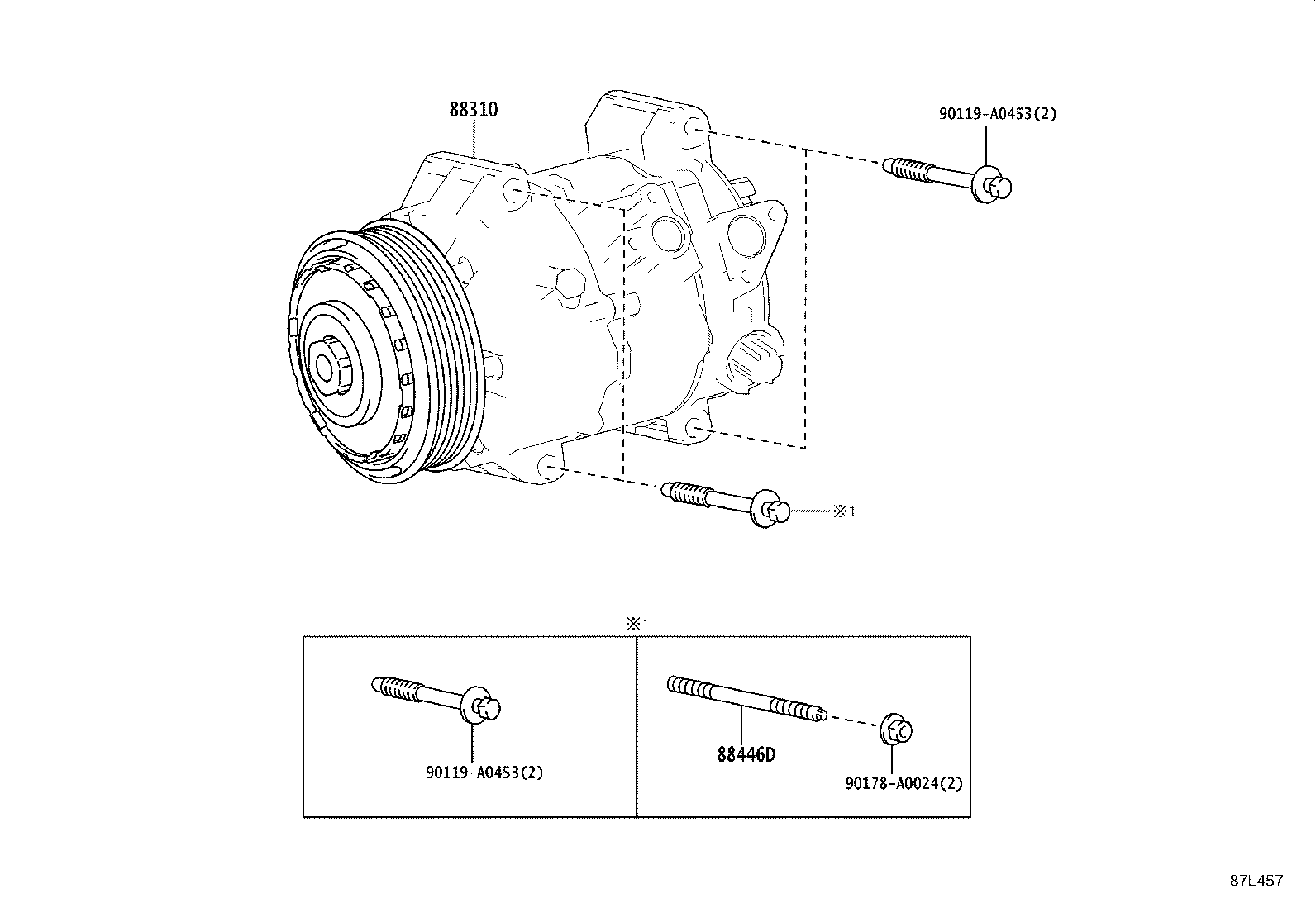

Exploded illustration 87L457 88310 — COMPRESSOR ASSY, W/PULLEY (1 parts) 90119A0453 — not listed in this catalogue 90178A0024 — not listed in this catalogue 90119A0453 — not listed in this catalogue 88446D — BOLT, COOLER (1 parts)
87L457 · 2 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
2 parts on this figure
Part number Description Fitment Price
88310 — Compressor Assy, W/Pulley
88310-06570 Compressor Assy, W/Pulley
2022-10 → —
TALA1# —
88446D — Bolt, Cooler
88446-08070 Bolt, Cooler
2022-10 → —
TALA1# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
