Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09

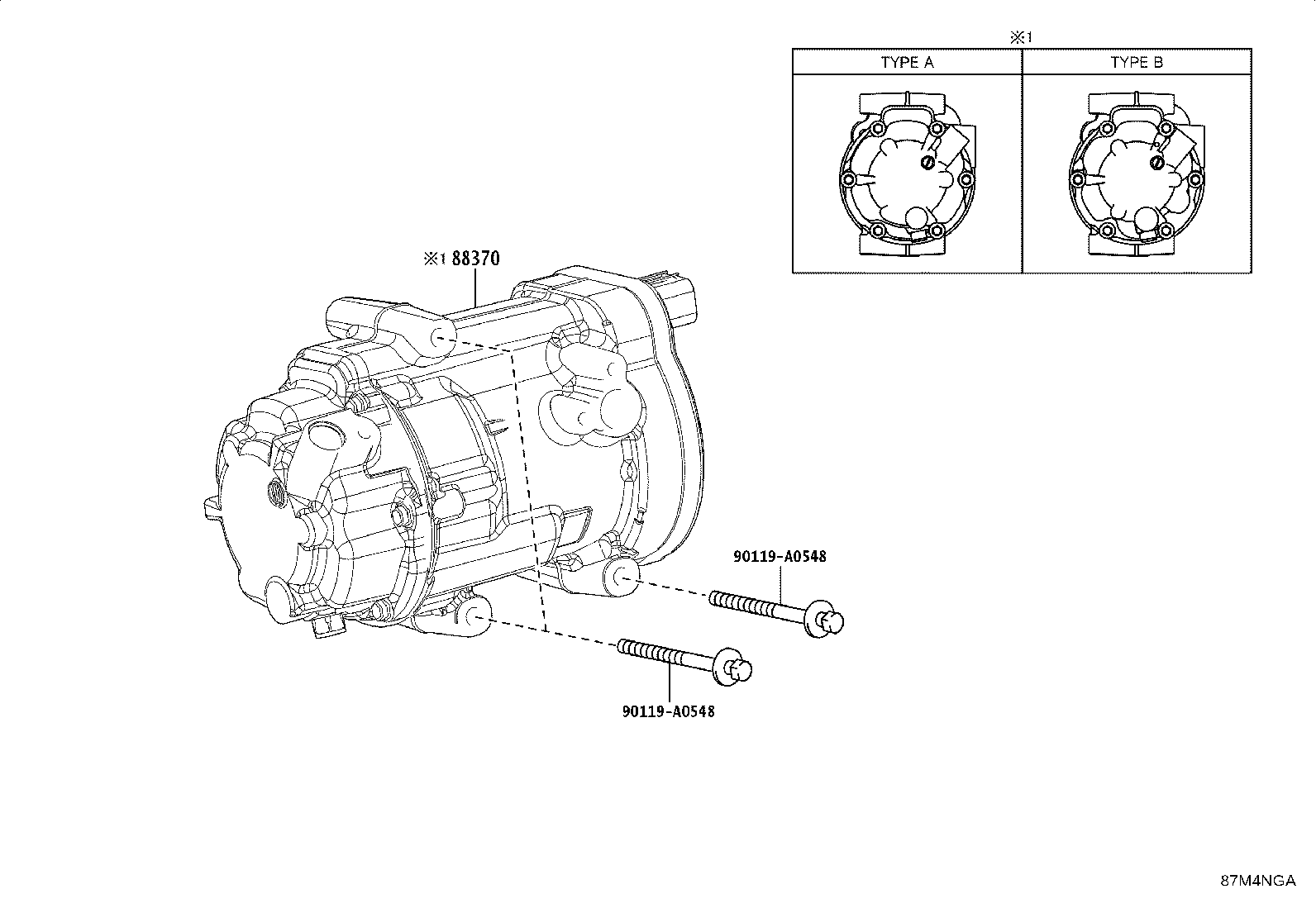

Exploded illustration 87M4NGA 90119A0548 — not listed in this catalogue 88370 — COMPRESSOR ASSY, W/MOTOR (4 parts) 90119A0548 — not listed in this catalogue
87M4NGA · 1 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
4 parts on this figure
Part number Description Fitment Price
88370 — Compressor Assy, W/Motor
88370-0E040 Compressor Assy, W/Motor
2024-12 → —
TALH17 —
88370-33051 note Compressor Assy, W/Motor
2022-10 → 2024-11 ended
AALH15 —
88370-42081 note Compressor Assy, W/Motor
2024-11 → 2025-10 ended
AALH15 —
88370-48210 Compressor Assy, W/Motor
2022-10 → 2024-12 ended
TALH17 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
