Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

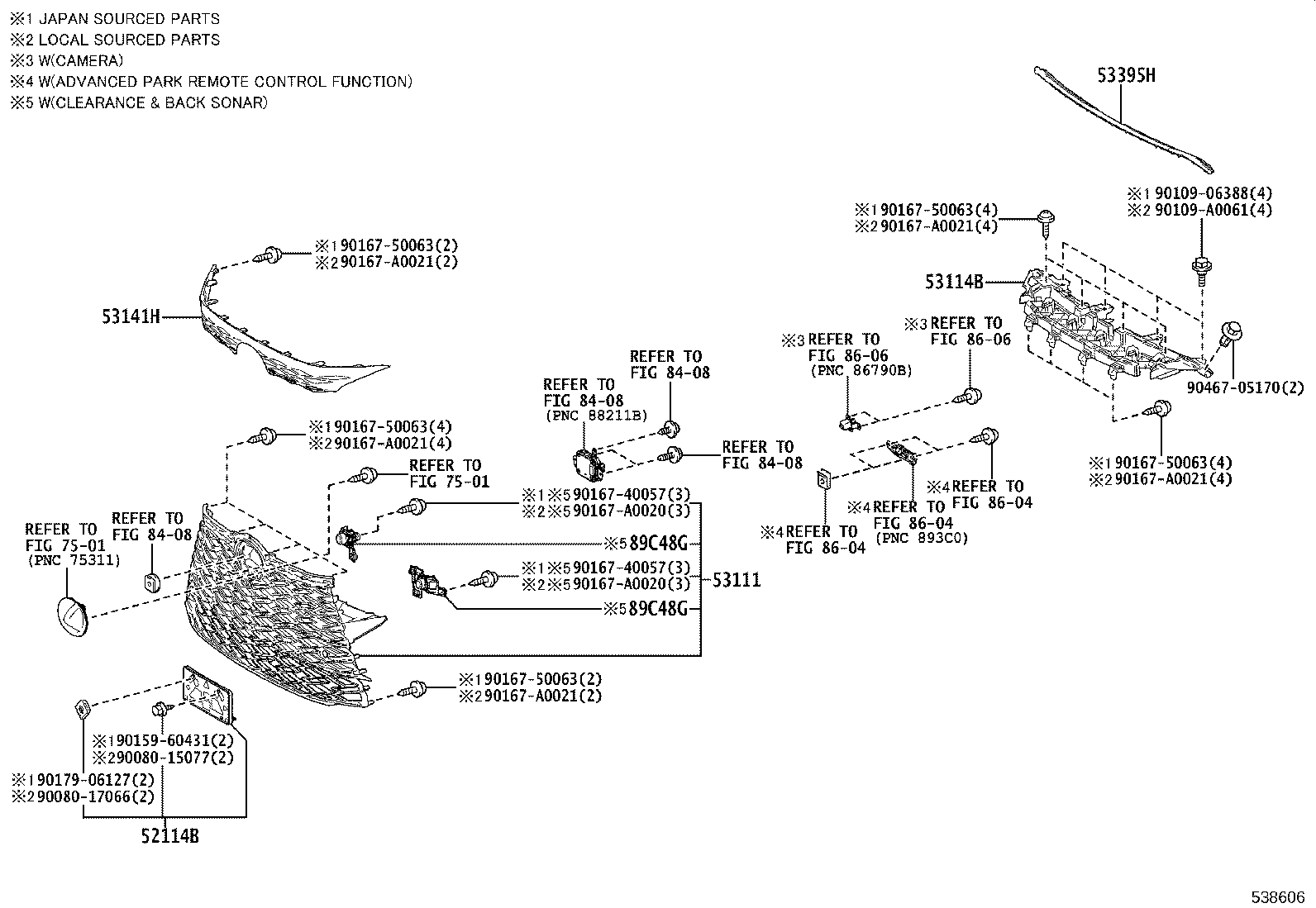

Radiator Grille
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52114B | Bracket, Front Bumper Extension Mounting |
| 53111 | Grille, Radiator |
| 53114B | Grille, Radiator, Upper |
| 53125A | Moulding, Radiator Grille, Center RH |
| 53126A | Moulding, Radiator Grille, Center LH |
| 53141H | Garnish, Radiator Grille |
| 53155D | Seal, Radiator Grille, NO.1 |
| 53395H | Seal, Hood TO Radiator Grille |
| 89C48G | Retainer, Ultrasonic Sensor, Front Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
