Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

12 part groups · 5 illustrations

Illustrations

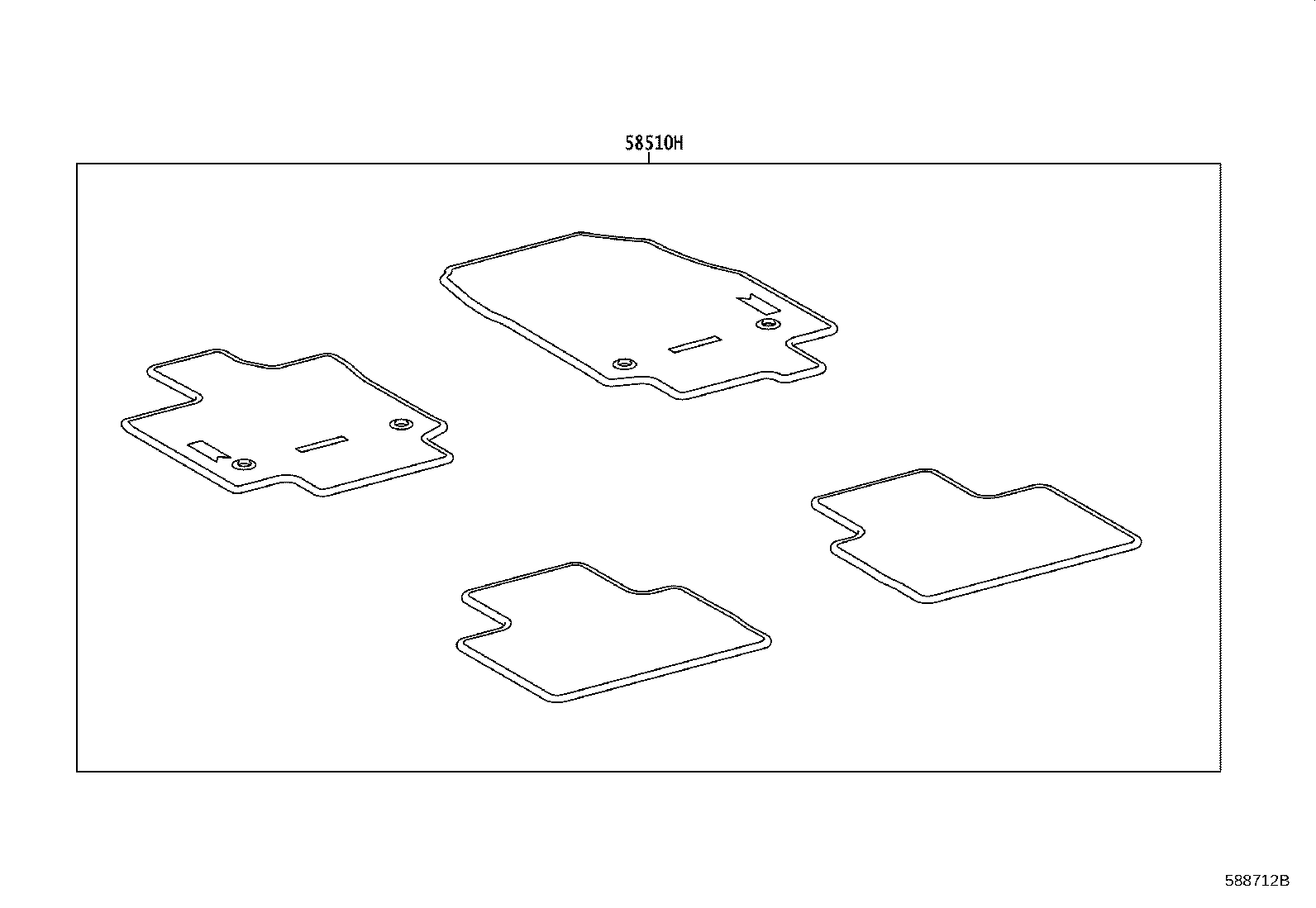

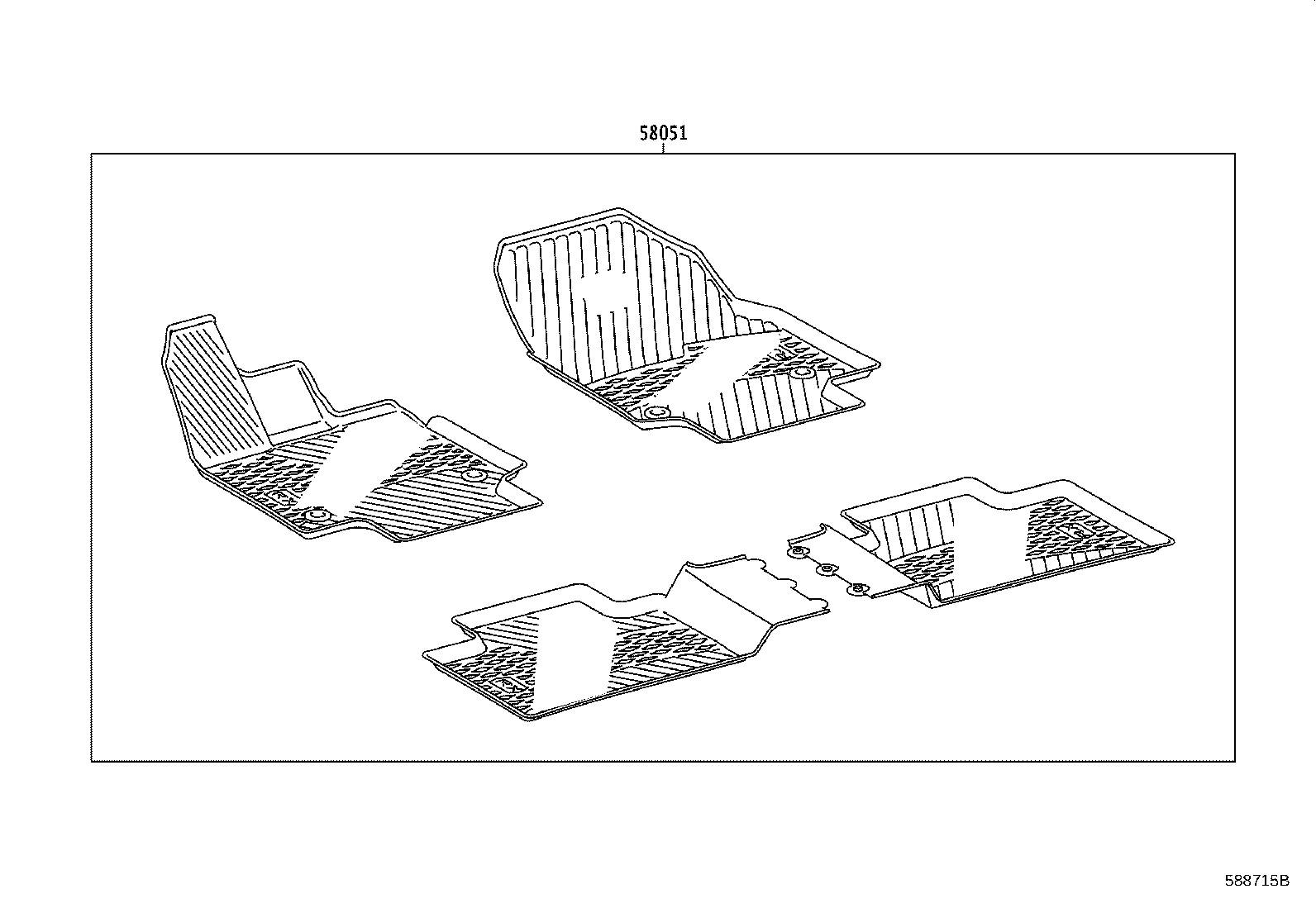

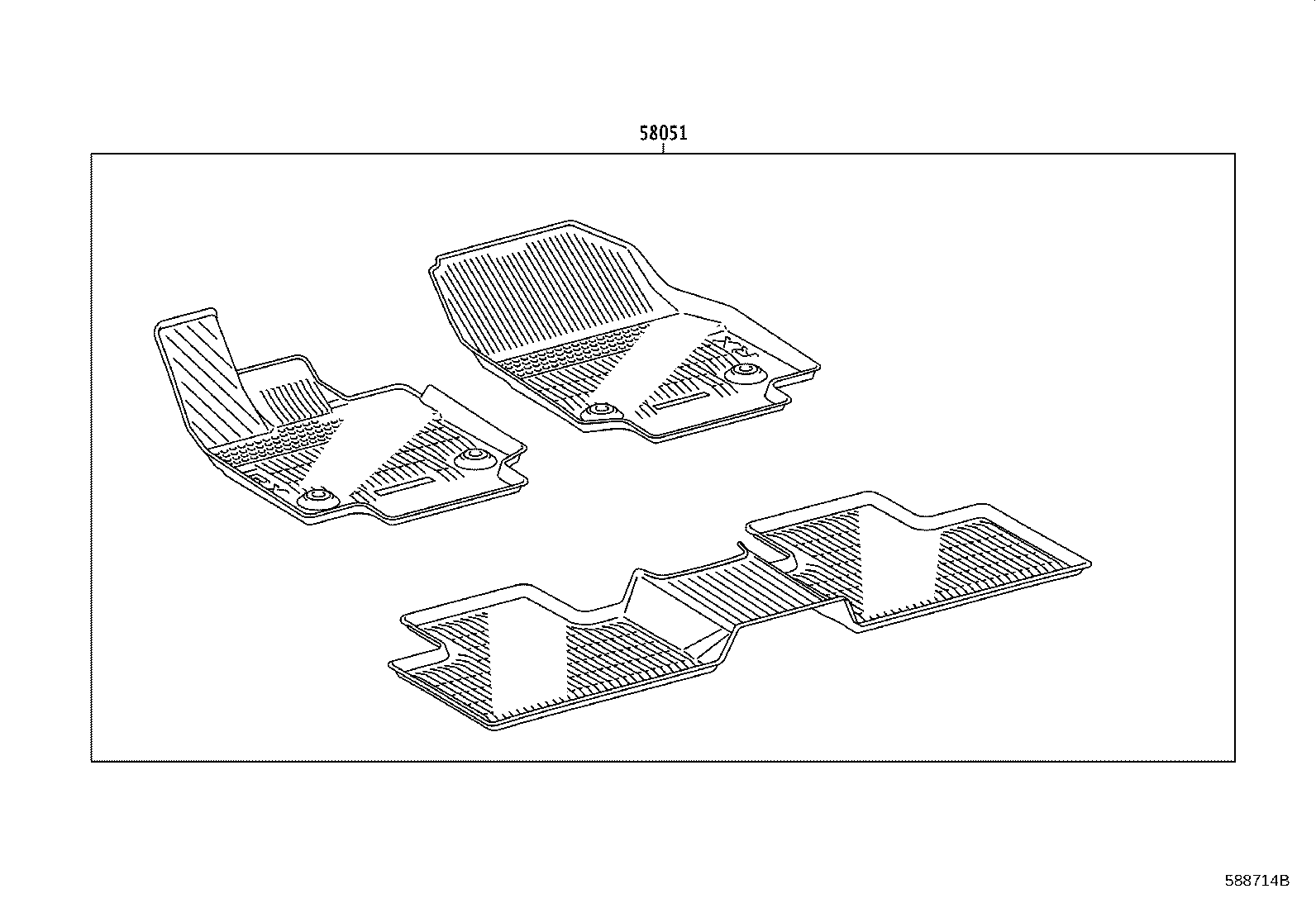

Figure 588734B 588734B 2022-10 → — Figure 588712B 588712B 2022-10 → — Figure 588713B 588713B 2022-10 → — Figure 588714B 588714B 2022-10 → — Figure 588715B 588715B 2022-10 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58051 Mat Set, Floor
58510D Carpet Assy, Floor, Front
58510H Mat Assy, Floor
58511 Mat, Floor, Front
58512J Mat, Floor, NO.2
58520C Clip(FOR FRONT FLOOR CARPET)
58560B Clip(FOR FLOOR CARPET, REAR)
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
