Toyota Lexus RX400H

2005-03 → 2008-12 · chassis MHU3# · catalogue 524410 · United States

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

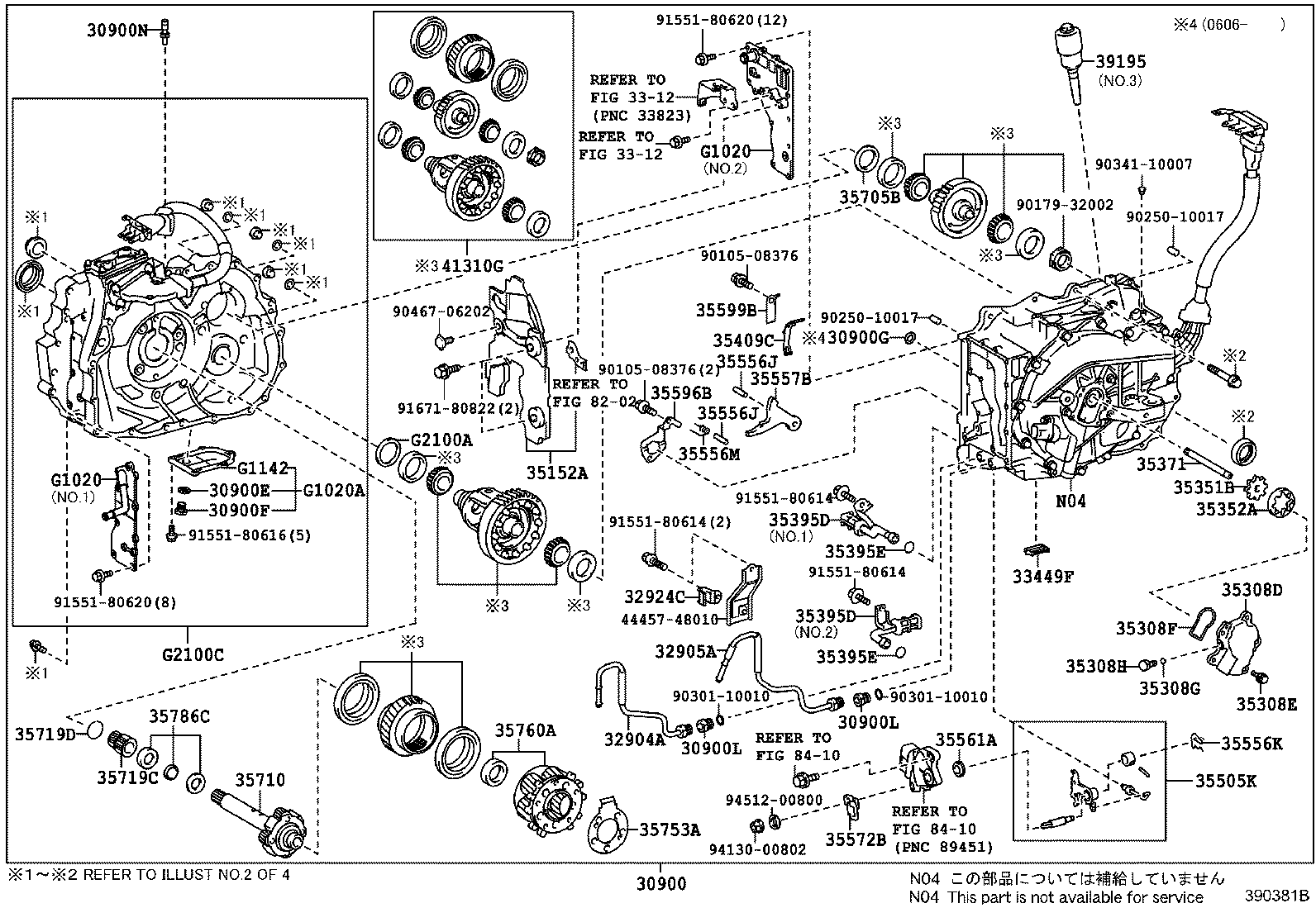

Exploded illustration 390381B 32924C — CLAMP, OIL COOLER TUBE, NO.2 (3 parts) 32904A — TUBE SUB-ASSY, OIL COOLER INLET (3 parts) 30900L — UNION(FOR TRANSAXLE HOUSING) (3 parts) 30900L — UNION(FOR TRANSAXLE HOUSING) (3 parts) 32905A — TUBE SUB-ASSY, OIL COOLER OUTLET (3 parts) 4445748010 — not listed in this catalogue 35572B — LEVER, TRANSMISSION, OUTER (1 parts) 9413000802 — not listed in this catalogue 9010508376 — not listed in this catalogue 9451200800 — not listed in this catalogue 8410 — not listed in this catalogue 8410 — not listed in this catalogue 3312 — not listed in this catalogue 8202 — not listed in this catalogue 9155180614 — not listed in this catalogue 35308D — COVER SUB-ASSY, TRANSMISSION OIL PUMP (1 parts) 35351B — ROTOR, TRANSAXLE OIL PUMP DRIVE (1 parts) 35371 — SHAFT, OIL PUMP DRIVE (1 parts) 35352A — ROTOR, TRANSMISSION OIL PUMP DRIVEN (1 parts) 35308F — RING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER) (1 parts) 30900N — PLUG, BREATHER(FOR TRANSAXLE) (1 parts) 35308H — PLUG (FOR TRANSMISSION OIL PUMP COVER) (1 parts) 35599B — COVER, MANUAL DETENT SPRING (1 parts) 35308G — RING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER) (1 parts) 35308E — BOLT, W/WASHER (FOR TRANSMISSION OIL PUMP COVER) (1 parts) G1020 — COVER ASSY, MOTOR WATER JACKET, NO.1 (4 parts) 9155180620 — not listed in this catalogue 3312 — not listed in this catalogue 35561A — SEAL, TYPE T OIL(FOR PARKING LOCK SHAFT) (1 parts) 35505K — LEVER SUB-ASSY, PARKING LOCK, NO.1 (1 parts) 35556K — SPRING, RETAINER (1 parts) 35705B — SHIM(FOR COUNTER DRIVEN GEAR) (54 parts) 30900 — TRANSAXLE ASSY, HYBRID VEHICLE (8 parts) 30900G — GASKET, NO.2(FOR TRANSAXLE HOUSING & CASE) (3 parts) 33449F — MAGNET, TRANSMISSION NO.1 (1 parts) 35395D — STRAINER, TRANSMISSION OIL (1 parts) 35395E — RING, O(FOR TRANSAXLE OIL STRAINER) (1 parts) 9155180614 — not listed in this catalogue 35395D — STRAINER, TRANSMISSION OIL (1 parts) 35395E — RING, O(FOR TRANSAXLE OIL STRAINER) (1 parts) 9155180614 — not listed in this catalogue 9025010017 — not listed in this catalogue 9025010017 — not listed in this catalogue 35719C — GEAR, PLANETARY SUN (1 parts) 35786C — RACE, THRUST BEARING, NO.1 (1 parts) 35719D — RING, SNAP(FOR PLANETARY SUN GEAR) (29 parts) 35760A — GEAR ASSY, REAR PLANETARY NO.1 (1 parts) 35753A — RECEIVER, PLANETARY OIL (1 parts) 35710 — SHAFT ASSY, INPUT (1 parts) 35596B — PLATE, PAWL STOPPER (1 parts) 35556J — SHAFT, PARKING LOCK PAWL (1 parts) 35556J — SHAFT, PARKING LOCK PAWL (1 parts) 35556M — SPRING, TORSION (1 parts) 35557B — PAWL, PARKING LOCK (1 parts) 35409C — SPRING SUB-ASSY, MANUAL DETENT (1 parts) 9010508376 — not listed in this catalogue 39195 — DAMPER, HV TRANSAXLE MASS (3 parts) 9034110007 — not listed in this catalogue 9017932002 — not listed in this catalogue G2100A — SHIM(FOR DIFFERENTIAL CASE RH) (44 parts) G2100C — GENERATOR ASSY, HYBRID VEHICLE (1 parts) 9155180620 — not listed in this catalogue 30900E — GASKET(FOR TRANSAXLE HOUSING & CASE) (1 parts) 30900F — PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE) (1 parts) G1020A — COVER ASSY, MOTOR WATER JACKET, NO.2 (1 parts) G1142 — COVER, MOTOR WATERJACET (1 parts) 9046706202 — not listed in this catalogue 35152A — COVER, AUTOMATIC TRANSMISSION CASE, NO.2 (1 parts) 9167180822 — not listed in this catalogue 9155180616 — not listed in this catalogue 9030110010 — not listed in this catalogue 9030110010 — not listed in this catalogue G1020 — COVER ASSY, MOTOR WATER JACKET, NO.1 (4 parts) 41310G — GEAR KIT, DIFFERENTIAL & COUNTER DRIVEN (1 parts)
390381B · 50 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
191 parts on this figure
Part number Description Fitment Price
30900 — Transaxle Assy, Hybrid Vehicle
30900-48040 Transaxle Assy, Hybrid Vehicle
2005-03 → 2005-08 ended
MHU3# —
30900-48041 Transaxle Assy, Hybrid Vehicle
2005-08 → 2005-09 ended
MHU3# —
30900-48042 Transaxle Assy, Hybrid Vehicle
2005-09 → 2008-12 ended
MHU3# —
30900-48050 note Transaxle Assy, Hybrid Vehicle
2005-03 → 2005-08 ended
MHU3# —
30900-48051 note Transaxle Assy, Hybrid Vehicle
2005-08 → 2005-09 ended
MHU3# —
30900-48052 note Transaxle Assy, Hybrid Vehicle
2005-09 → 2008-12 ended
MHU3# —
30900-48052 note Transaxle Assy, Hybrid Vehicle
2007-08 → 2008-12 ended
MHU38 —
30900-48052 note Transaxle Assy, Hybrid Vehicle
2007-08 → 2008-12 ended
MHU38 —
30900E — Gasket(FOR TRANSAXLE HOUSING & CASE)
90430-18008 Gasket(FOR TRANSAXLE HOUSING & CASE)
2005-03 → 2008-12 ended
MHU3# —
30900F — Plug, W/Head Straight Screw, NO.2(FOR TRANSAXLE HSG & CASE)
90341-18016 Plug, W/Head Straight Screw, NO.2(FOR TRANSAXLE HSG & CASE)
2005-03 → 2008-12 ended
MHU3# —
30900G — Gasket, NO.2(FOR TRANSAXLE HOUSING & CASE)
35145-48010 note Gasket, NO.2(FOR TRANSAXLE HOUSING & CASE)
2006-06 → 2008-12 ended
MHU3# —
35145-48010 note Gasket, NO.2(FOR TRANSAXLE HOUSING & CASE)
2007-08 → 2008-12 ended
MHU38 —
35145-48010 note Gasket, NO.2(FOR TRANSAXLE HOUSING & CASE)
2007-08 → 2008-12 ended
MHU38 —
30900L — Union(FOR TRANSAXLE HOUSING)
90404-16031 note Union(FOR TRANSAXLE HOUSING)
2005-03 → 2008-12 ended
MHU3# —
90404-16031 note Union(FOR TRANSAXLE HOUSING)
2007-08 → 2008-12 ended
MHU38 —
90404-16031 note Union(FOR TRANSAXLE HOUSING)
2007-08 → 2008-12 ended
MHU38 —
30900N — Plug, Breather(FOR TRANSAXLE)
90930-03179 Plug, Breather(FOR TRANSAXLE)
2005-03 → 2008-12 ended
MHU3# —
32904A — Tube Sub-assy, Oil Cooler Inlet
32904-48130 note Tube Sub-assy, Oil Cooler Inlet
2007-08 → 2008-12 ended
MHU38 —
32904-48130 note Tube Sub-assy, Oil Cooler Inlet
2007-08 → 2008-12 ended
MHU38 —
32904-48130 note Tube Sub-assy, Oil Cooler Inlet
2005-03 → 2008-12 ended
MHU3# —
32905A — Tube Sub-assy, Oil Cooler Outlet
32905-48140 note Tube Sub-assy, Oil Cooler Outlet
2005-03 → 2008-12 ended
MHU3# —
32905-48140 note Tube Sub-assy, Oil Cooler Outlet
2007-08 → 2008-12 ended
MHU38 —
32905-48140 note Tube Sub-assy, Oil Cooler Outlet
2007-08 → 2008-12 ended
MHU38 —
32924C — Clamp, Oil Cooler Tube, NO.2
90949-01C98 note Clamp, Oil Cooler Tube, NO.2
2005-03 → 2008-12 ended
MHU3# —
90949-01C98 note Clamp, Oil Cooler Tube, NO.2
2007-08 → 2008-12 ended
MHU38 —
90949-01C98 note Clamp, Oil Cooler Tube, NO.2
2007-08 → 2008-12 ended
MHU38 —
33449F — Magnet, Transmission NO.1
33449-12020 Magnet, Transmission NO.1
2005-03 → 2008-12 ended
MHU3# —
35152A — Cover, Automatic Transmission Case, NO.2
35151-48031 Cover, Automatic Transmission Case, NO.2
2005-03 → 2008-12 ended
MHU3# —
35308D — Cover Sub-assy, Transmission Oil Pump
35308-48011 Cover Sub-assy, Transmission Oil Pump
2005-03 → 2008-12 ended
MHU3# —
35308E — Bolt, W/Washer (FOR TRANSMISSION OIL PUMP COVER)
90105-06300 Bolt, W/Washer (FOR TRANSMISSION OIL PUMP COVER)
2005-03 → 2008-12 ended
MHU3# —
35308F — Ring, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
90903-01009 Ring, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
2005-03 → 2008-12 ended
MHU3# —
35308G — Ring, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
90301-06196 Ring, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
2005-03 → 2008-12 ended
MHU3# —
35308H — Plug (FOR TRANSMISSION OIL PUMP COVER)
90341-08001 Plug (FOR TRANSMISSION OIL PUMP COVER)
2005-03 → 2008-12 ended
MHU3# —
35351B — Rotor, Transaxle Oil Pump Drive
35351-47030 Rotor, Transaxle Oil Pump Drive
2005-03 → 2008-12 ended
MHU3# —
35352A — Rotor, Transmission Oil Pump Driven
35352-47020 Rotor, Transmission Oil Pump Driven
2005-03 → 2008-12 ended
MHU3# —
35371 — Shaft, Oil Pump Drive
35371-48010 Shaft, Oil Pump Drive
2005-03 → 2008-12 ended
MHU3# —
35395D — Strainer, Transmission Oil
35395-48010 Strainer, Transmission Oil
2005-03 → 2008-12 ended
MHU3# —
35395E — Ring, O(FOR TRANSAXLE OIL STRAINER)
90301-11019 Ring, O(FOR TRANSAXLE OIL STRAINER)
2005-03 → 2008-12 ended
MHU3# —
35409C — Spring Sub-assy, Manual Detent
35409-48010 Spring Sub-assy, Manual Detent
2005-03 → 2005-05 ended
MHU3# —
35505K — Lever Sub-assy, Parking Lock, NO.1
35505-49005 Lever Sub-assy, Parking Lock, NO.1
2005-03 → 2008-12 ended
MHU3# —
35556J — Shaft, Parking Lock Pawl
35556-48010 Shaft, Parking Lock Pawl
2005-03 → 2008-12 ended
MHU3# —
35556K — Spring, Retainer
90524-09001 Spring, Retainer
2005-03 → 2008-12 ended
MHU3# —
35556M — Spring, Torsion
90949-03134 Spring, Torsion
2005-03 → 2008-12 ended
MHU3# —
35557B — Pawl, Parking Lock
35557-48010 Pawl, Parking Lock
2005-03 → 2008-12 ended
MHU3# —
35561A — Seal, Type T Oil(FOR PARKING LOCK SHAFT)
90311-12002 Seal, Type T Oil(FOR PARKING LOCK SHAFT)
2005-03 → 2008-12 ended
MHU3# —
35572B — Lever, Transmission, Outer
35572-48020 Lever, Transmission, Outer
2005-03 → 2008-12 ended
MHU3# —
35596B — Plate, Pawl Stopper
35596-48010 Plate, Pawl Stopper
2005-03 → 2008-12 ended
MHU3# —
35599B — Cover, Manual Detent Spring
35599-48010 Cover, Manual Detent Spring
2005-03 → 2008-12 ended
MHU3# —
35705B — Shim(FOR COUNTER DRIVEN GEAR)
90564-63001 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63002 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63003 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63004 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63005 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63006 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63007 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63008 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63009 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63010 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63011 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63012 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63013 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63014 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63015 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63016 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63017 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63018 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63019 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63020 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63021 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63022 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63023 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63024 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63025 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63026 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63027 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63028 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63029 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63030 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63031 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63032 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63033 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63034 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63035 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63036 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63037 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63038 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63039 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63040 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63041 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63042 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63043 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63044 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63045 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63046 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63047 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63048 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63049 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63050 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63051 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63052 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63053 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
90564-63054 note Shim(FOR COUNTER DRIVEN GEAR)
2005-03 → 2008-12 ended
MHU38 —
35710 — Shaft Assy, Input
35710-48010 Shaft Assy, Input
2005-03 → 2008-12 ended
MHU3# —
35719C — Gear, Planetary Sun
35719-48010 Gear, Planetary Sun
2005-03 → 2008-12 ended
MHU3# —
35719D — Ring, Snap(FOR PLANETARY SUN GEAR)
90520-37017 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37018 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37019 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37020 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37021 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37022 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37023 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37024 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37025 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37026 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37027 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37028 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37029 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37030 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37031 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37033 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37034 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37035 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37036 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37037 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37038 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37039 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37040 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37041 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37042 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37043 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37044 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37045 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
90520-37046 note Ring, Snap(FOR PLANETARY SUN GEAR)
2005-03 → 2008-12 ended
MHU3# —
35753A — Receiver, Planetary Oil
35753-48021 Receiver, Planetary Oil
2005-03 → 2008-12 ended
MHU3# —
35760A — Gear Assy, Rear Planetary NO.1
35760-48030 Gear Assy, Rear Planetary NO.1
2005-03 → 2008-12 ended
MHU3# —
35786C — Race, Thrust Bearing, NO.1
35786-49015 Race, Thrust Bearing, NO.1
2005-03 → 2008-12 ended
MHU3# —
39195 — Damper, HV Transaxle Mass
33183-48010 note Damper, HV Transaxle Mass
2005-03 → 2008-12 ended
MHU3# —
39195-28011 note Damper, HV Transaxle Mass
2005-03 → 2008-12 ended
MHU38 —
39195-48020 note Damper, HV Transaxle Mass
2005-03 → 2008-12 ended
MHU38 —
41310G — Gear Kit, Differential & Counter Driven
41310-48901 Gear Kit, Differential & Counter Driven
2005-03 → 2008-12 ended
MHU3# —
G1020 — Cover Assy, Motor Water Jacket, NO.1
G1020-48020 note Cover Assy, Motor Water Jacket, NO.1
2005-03 → 2005-08 ended
MHU3# —
G1020-48020 note Cover Assy, Motor Water Jacket, NO.1
2005-03 → 2005-08 ended
MHU3# —
G1020-48021 note Cover Assy, Motor Water Jacket, NO.1
2005-08 → 2008-12 ended
MHU3# —
G1020-48040 note Cover Assy, Motor Water Jacket, NO.1
2005-03 → 2008-12 ended
MHU3# —
G1020A — Cover Assy, Motor Water Jacket, NO.2
G1020-48030 Cover Assy, Motor Water Jacket, NO.2
2005-03 → 2008-12 ended
MHU3# —
G1142 — Cover, Motor Waterjacet
G1142-48030 Cover, Motor Waterjacet
2005-03 → 2008-12 ended
MHU3# —
G2100A — Shim(FOR DIFFERENTIAL CASE RH)
90564-74001 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74002 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74003 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74004 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74005 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74006 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74007 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74008 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74009 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74010 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74011 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74012 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74013 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74014 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74015 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74016 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74017 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74018 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74019 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74020 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74021 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74022 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74023 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74024 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74025 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74026 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74027 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74028 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74029 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74030 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74031 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74032 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74033 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74034 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74035 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74036 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74037 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74038 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74039 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74040 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74041 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74042 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74043 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
90564-74044 note Shim(FOR DIFFERENTIAL CASE RH)
2005-03 → 2008-12 ended
MHU3# —
G2100C — Generator Assy, Hybrid Vehicle
G2100-48040 Generator Assy, Hybrid Vehicle
2005-03 → 2008-12 ended
MHU3# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
