Toyota Lexus RX400H

2005-03 → 2008-12 · chassis MHU3# · catalogue 524410 · United States

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

15 part groups · 2 illustrations

Illustrations

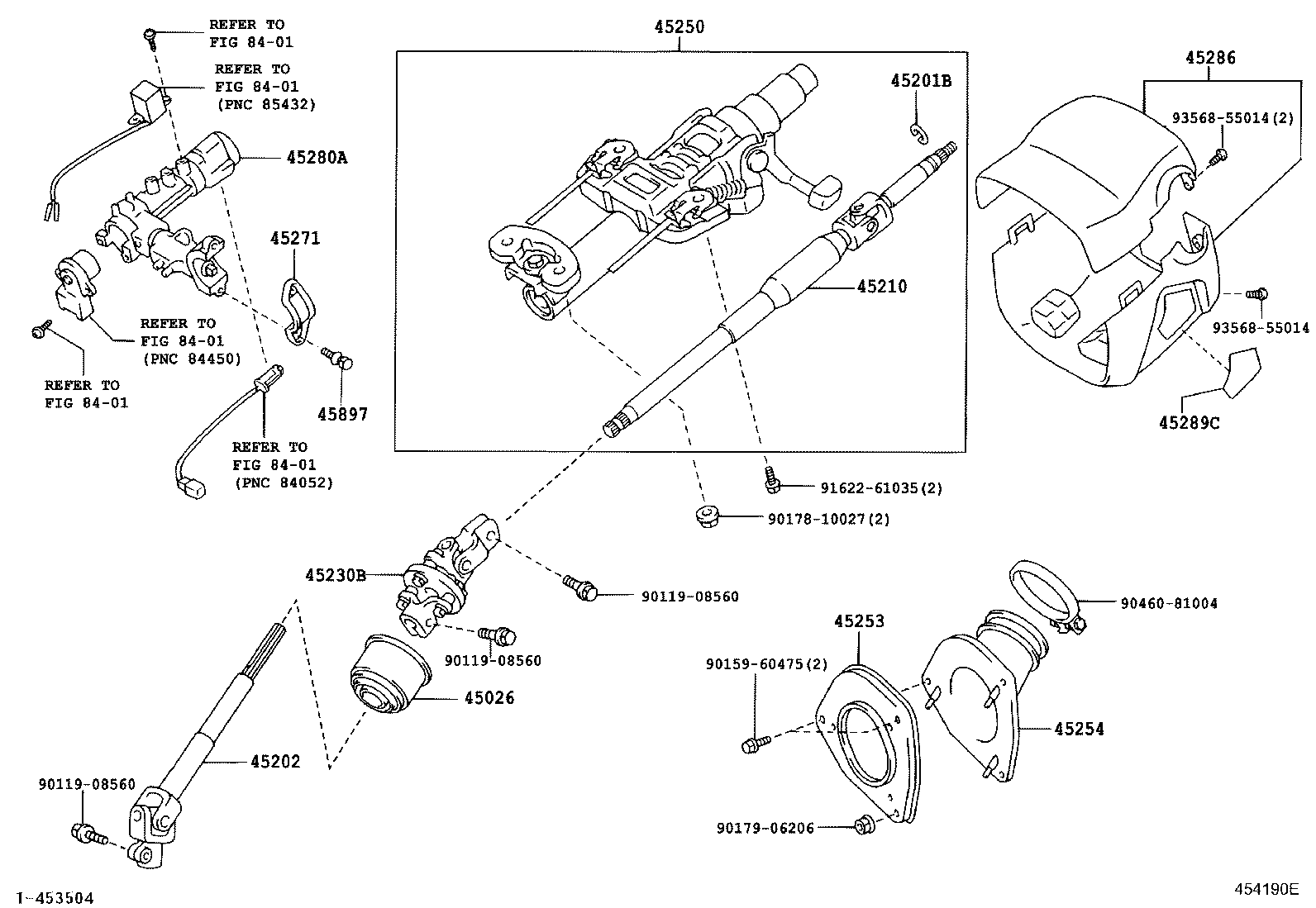

Figure 454189D 454189D 2005-03 → — Figure 454190E 454190E 2005-03 → —

Part groups

PNCDescription
45026 Cover Sub-assy, Steering Column Hole, NO.2
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201G Spring, Compression(FOR STEERING MAIN SHAFT)
45202 Shaft Sub-assy, Steering Intermediate
45210 Shaft Assy, Steering Main
45230B Joint Assy, Steering Shaft Universal
45250 Column Assy, Steering
45253 Cover, Steering Column Hole
45254 Shield, Steering Column Hole
45263 Ring, Steering Column, NO.1
45271 Clamp, Steering Column, Upper
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45289C Cover, Steering Column, Lwr NO.2
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
