Toyota Lexus RX400H

2005-03 → 2008-12 · chassis MHU3# · catalogue 524410 · United States

Supported model Data version 2009-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

82 part groups · 2 illustrations

Illustrations

713858B 2005-03 → —

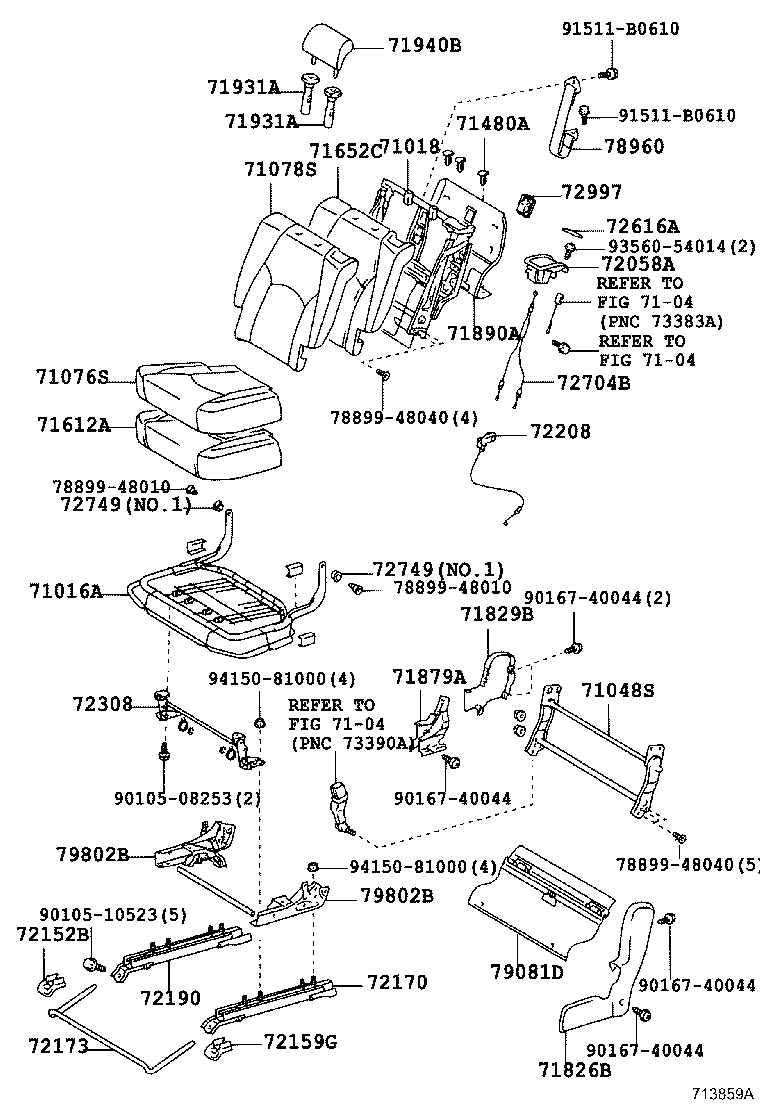

713859A 2005-03 → —

Part groups

PNC	Description
71015A	Frame Sub-assy, Rear Seat Cushion, RH
71016A	Frame Sub-assy, Rear Seat Cushion, LH
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71031A	Clip, Center Seat Cushion
71031S	Cover Sub-assy, Center Seat Cushion
71047S	Frame Sub-assy, Rear Seatback, Lower RH
71048S	Frame Sub-assy, Rear Seatback, Lower LH
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71087	Board Sub-assy, Rear Seatback
71301S	Frame Sub-assy, Center Seat Cushion
71305A	Hinge Sub-assy, Rear Seatback, Center
71305S	Frame Sub-assy, Center Seatback
71389	Spacer, Center Seat Hinge
71398H	Cover, Center Seat Hinge, Upper LH
71480A	Clip (FOR REAR SEATBACK)
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71614	Pad, Rear Seat Cushion, Center
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652C	Pad, Rear Seatback, B
71825B	Moulding, Rear Seat Cushion, RH
71826B	Moulding, Rear Seat Cushion, LH
71828B	Moulding, Rear Seat Cushion, Rear RH
71829B	Moulding, Rear Seat Cushion, Rear LH
71835C	Moulding, Rear Seatback, RH
71836C	Moulding, Rear Seatback, LH
71878A	Cover, Rear Seat Reclining, Inner RH
71879A	Cover, Rear Seat Reclining, Inner LH
71880A	Carpet Assy, Rear Seatback Board, RH
71890A	Carpet Assy, Rear Seatback Board, LH
71931A	Support, Rear Seat Headrest
71931B	Support Assy, Rear NO.1 Seat Headrest
71940B	Headrest Assy, Rear Seat, RH
71960B	Headrest Assy, Rear Seat, Center
72057	Lever Sub-assy, Rear Seat Lock Control, RH
72058A	Lever Sub-assy, Rear Seat Lock Control, LH
72152A	Cover, Rear Seat Track Bracket, Inner
72152B	Cover, Rear Seat Track Bracket, Inner
72159F	Cover, Rear Seat Track Bracket, RH
72159G	Cover, Rear Seat Track Bracket, LH
72160	Track Assy, Rear Seat, Outer RH
72170	Track Assy, Rear Seat, Outer LH
72173	Handle, Rear Seat Track Adjusting
72180C	Track Assy, Rear Seat, Inner RH
72190	Track Assy, Rear Seat Inner, LH
72207A	Plate, Seat Track Stop RH
72208	Plate, Seat Track Stop, LH
72307	Link Sub-assy, Reclining Control, RH
72308	Link Sub-assy, Reclining Control, LH
72553C	Protector, Reclining Cover, RH
72554A	Protector, Reclining Cover, LH
72603	Lock Sub-assy, Rear Seatback, RH
72613B	Striker, Rear Seat Lock
72615A	Cover, Rear Seatback Lock Striker, RH
72616A	Cover, Rear Seatback Lock Striker, LH
72618	Protector, Rear Seatback Lock Striker
72661B	Lever, Rear Seatback Rod Control, Outer
72665	Cover, Rear Seatback Lock, RH
72667	Bezel, Rear Seatback Lock, Upper
72704A	Cable, Rear Seat Reclining Control
72704B	Cable, Rear Seat Reclining Control, NO.2
72749	Spacer, Rear Seat Reclining
72805B	Door Sub-assy, Rear Seat Center Armrest
72830	Armrest Assy, Rear Seat, Center
72881	Support, Rear Seat Center Armrest, RH
72978	Cover, NO.2 Center Seatback
72996	Cover, Rear Seatback, RH
72997	Cover, Rear Seatback, LH
74633A	Cap, Coat Hook
78950	Band Assy, Fold Seat Stopper, NO.1
78960	Band Assy, Fold Seat Stopper, NO.2
79081C	Cover, Rear Seat, NO.1
79081D	Cover, Rear Seat, NO.2
79081E	Cover, Rear Seat, NO.3
79157	Cover, NO.1 Seatback
79801C	Frame, Fold Seat Cushion, NO.2
79802B	Frame, Fold Seat Cushion, NO.1
79873	Wire, Fold Seatback

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
