Toyota Lexus RX400H

2005-03 → 2008-12 · chassis MHU3# · catalogue 524410 · United States

Supported model Data version 2009-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inverter Cooling

4 part groups · 5 illustrations

Illustrations

Figure 84H040B

84H040B 2005-03 → 2007-10

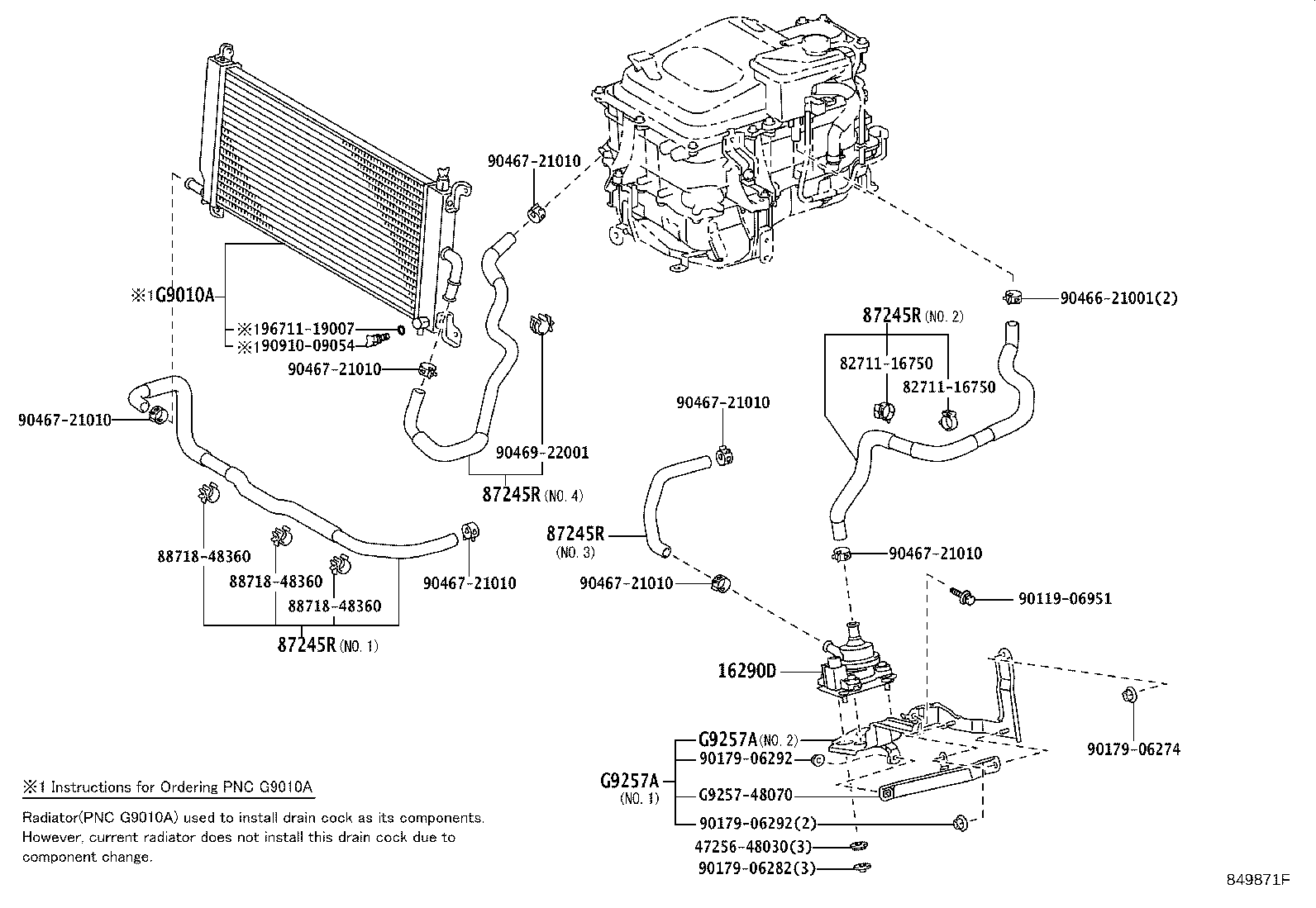

Figure 849871F

849871F 2007-10 → —

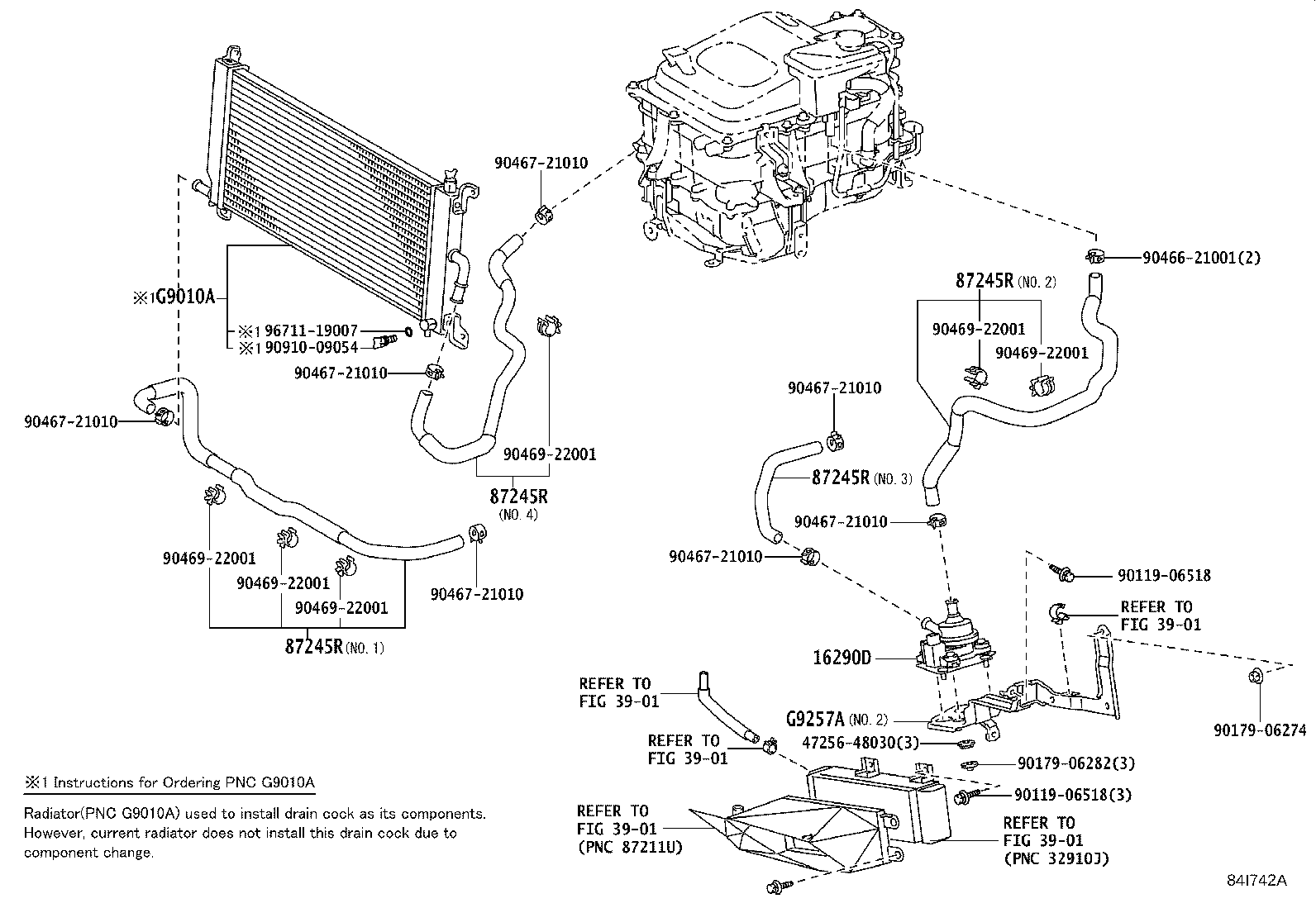

Figure 84I742A

84I742A 2005-03 → 2007-03

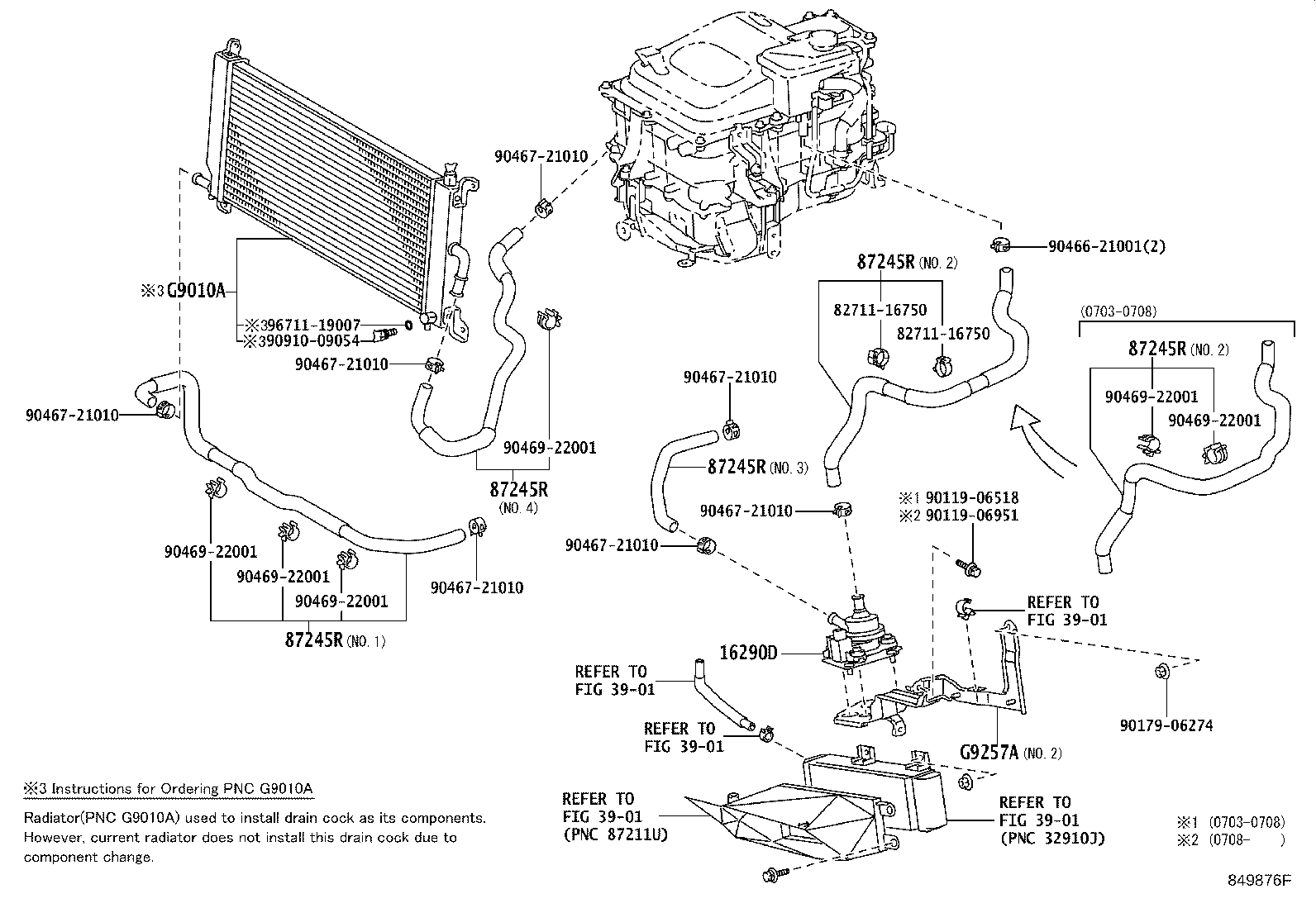

Figure 849876F

849876F 2007-03 → 2007-10

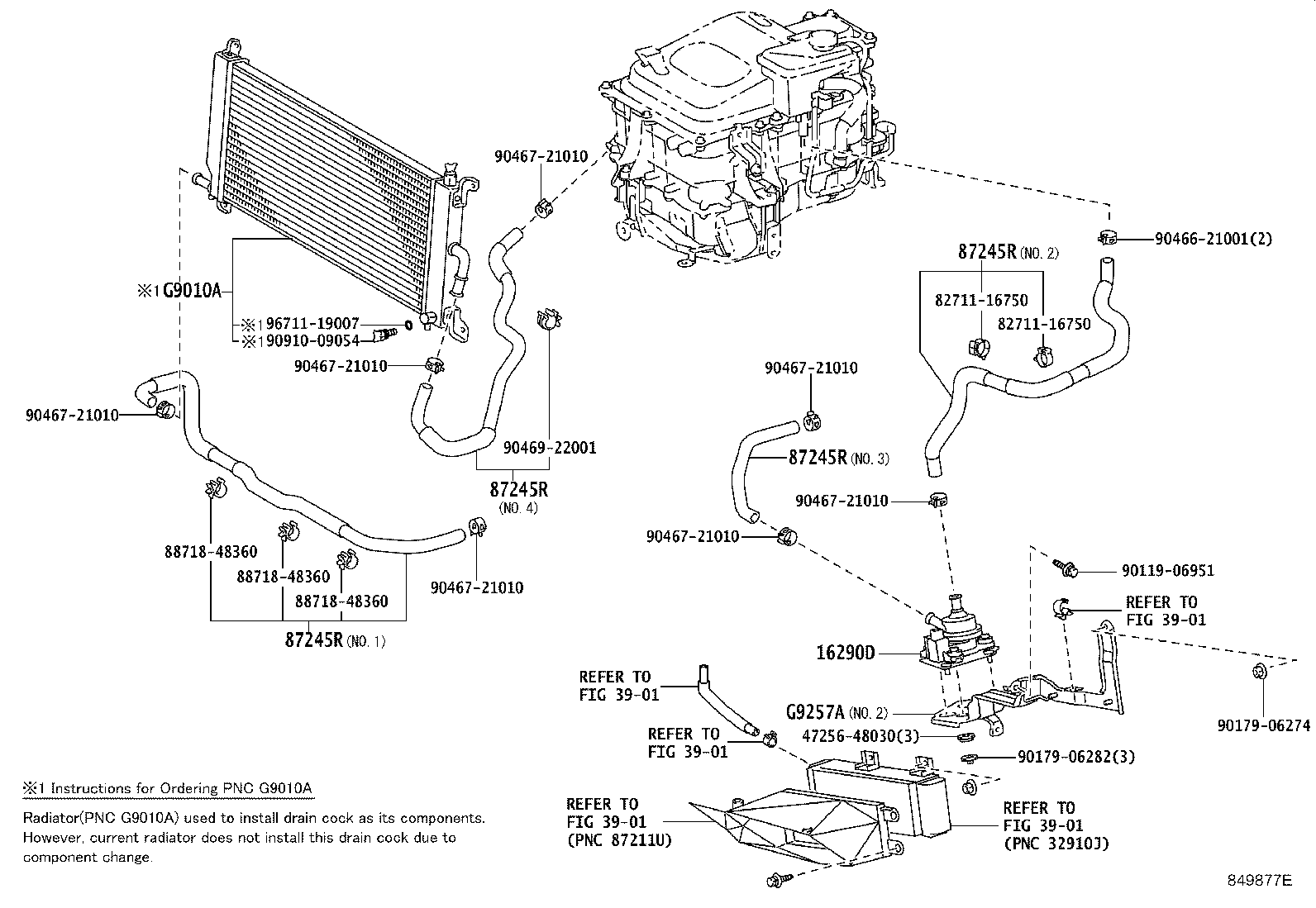

Figure 849877E

849877E 2007-10 → —

Part groups

PNC	Description
16290D	Pump Assy, Water W/Motor
87245R	Hose, Water
G9010A	Radiator Assy
G9257A	Bracket, Inverter, NO.5

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
