Toyota Lexus RX400H

2005-03 → 2008-12 · chassis MHU3# · catalogue 524410 · United States

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

9 part groups · 5 illustrations

Illustrations

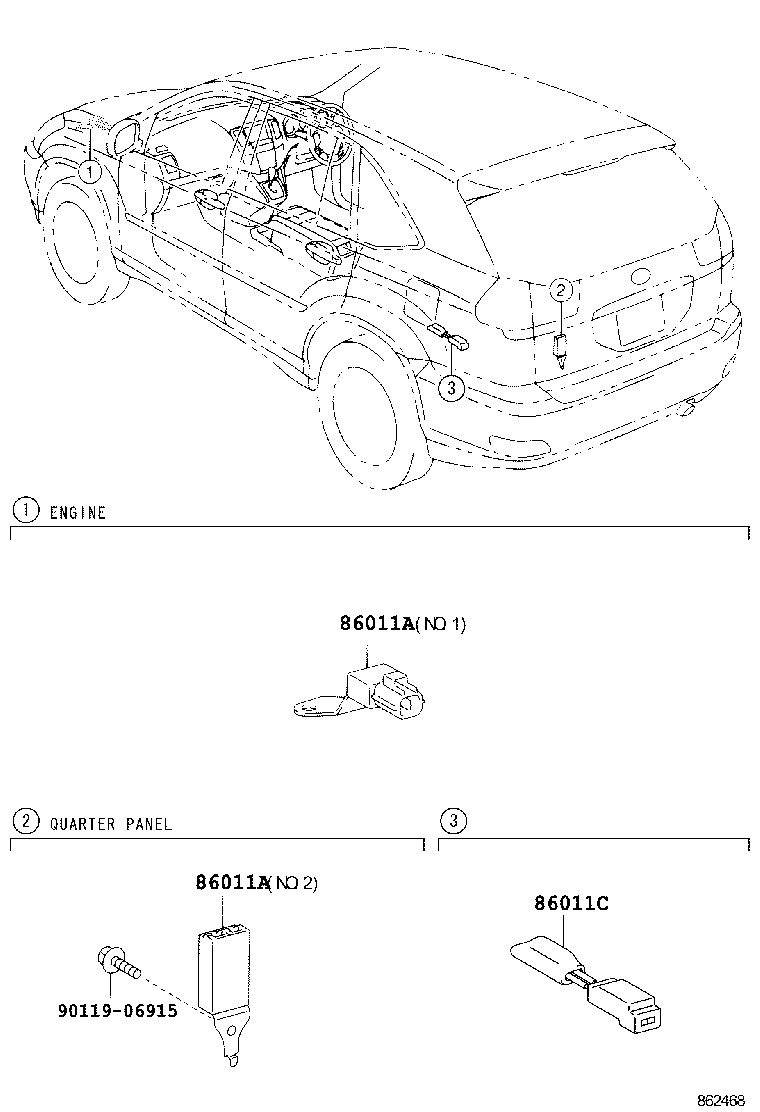

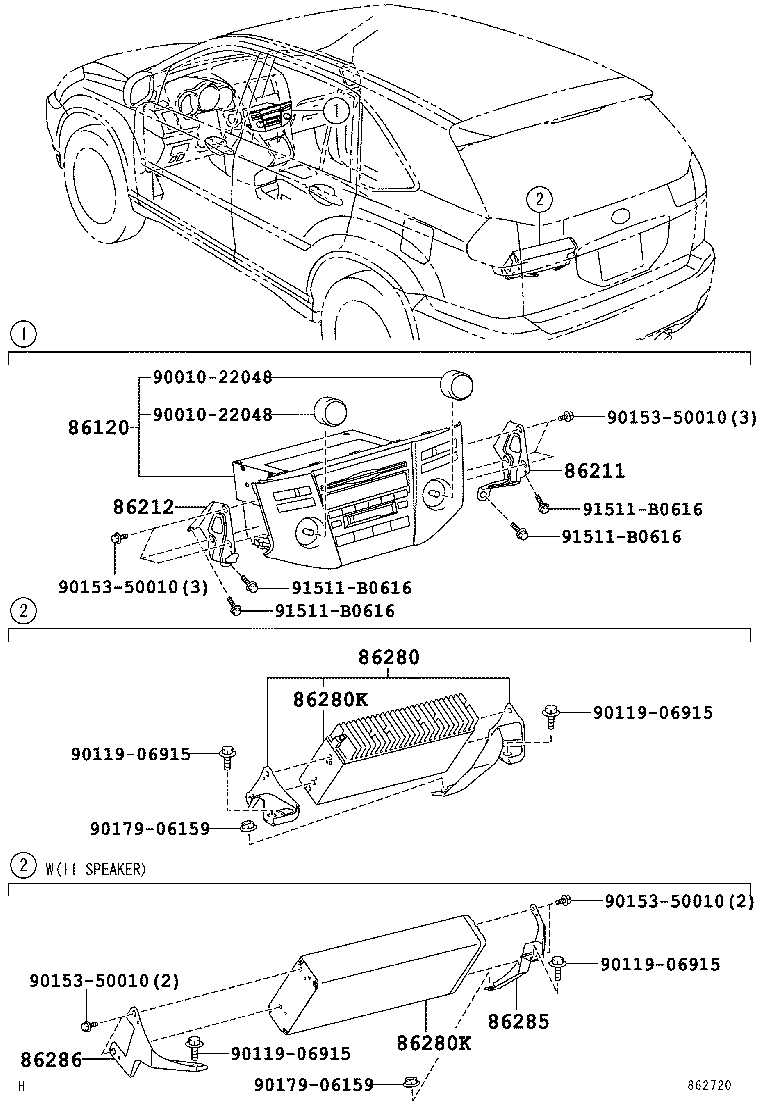

Figure 862464 862464 2005-03 → 2006-08 Figure 862720 862720 2006-08 → — Figure 862661 862661 2005-03 → 2006-08 Figure 862702 862702 2006-08 → — Figure 862468 862468 2005-03 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
86280K Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
