Toyota Lexus RX400H
2005-03 → 2008-12 · chassis MHU3# · catalogue 524410 · United States
Supported model
Data version 2009-04
Camera & Rear Monitor Display

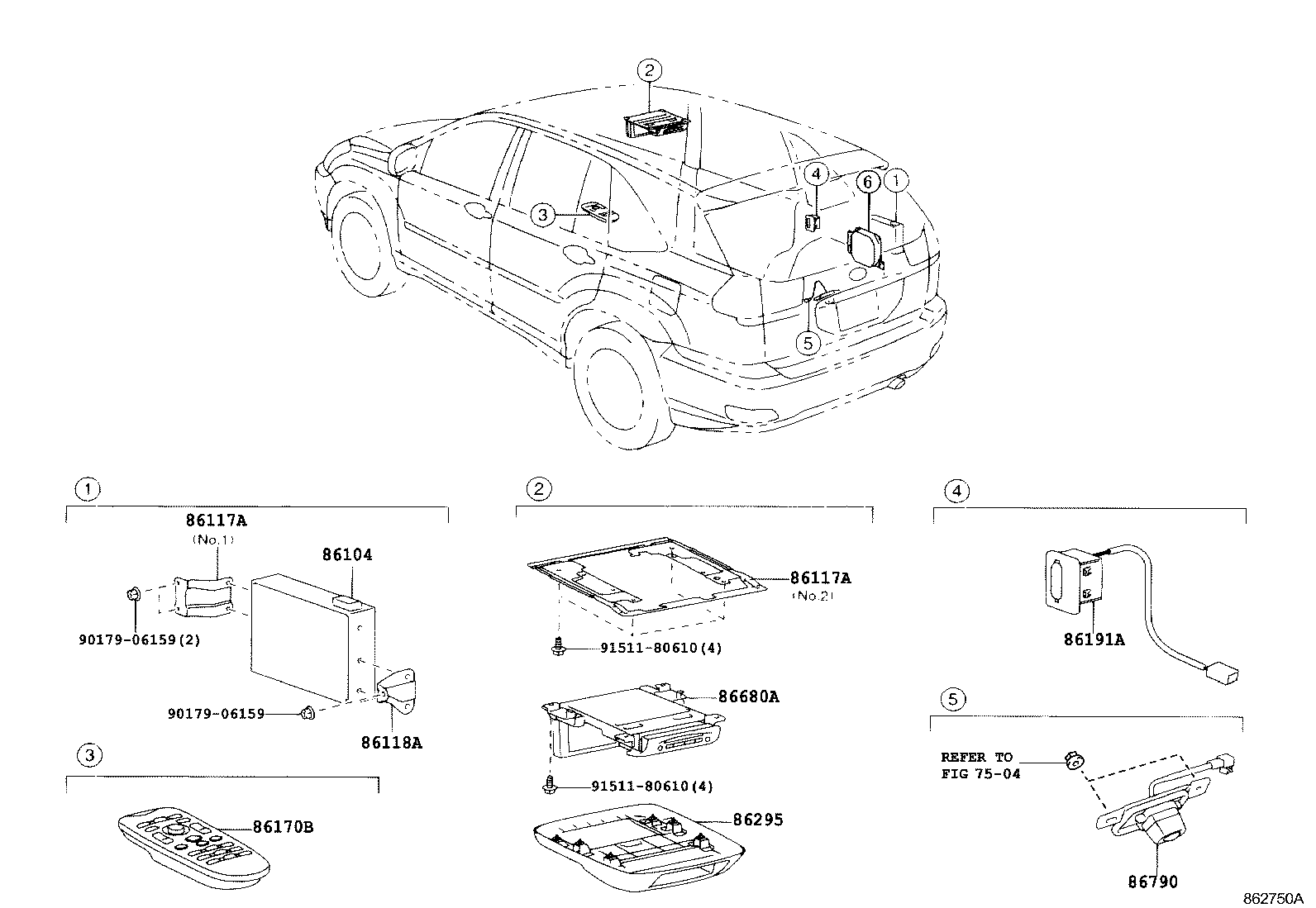

9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86104 | Controller Sub-assy, Multi-display |
| 86117A | Bracket, Television Display, A |
| 86118A | Bracket, Television Display, B |
| 86170B | Switch & Volume Assy, Television |
| 86191A | Terminal, Video(VIDEO ADAPTER) |
| 86295 | Base, Television |
| 86680A | Display Assy, Television |
| 86790 | Camera Assy, Television |
| 86792C | Computer, Parking Assist |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
