Toyota Venza

2020-07 → present · chassis AXUH85 · catalogue 524420 · United States

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

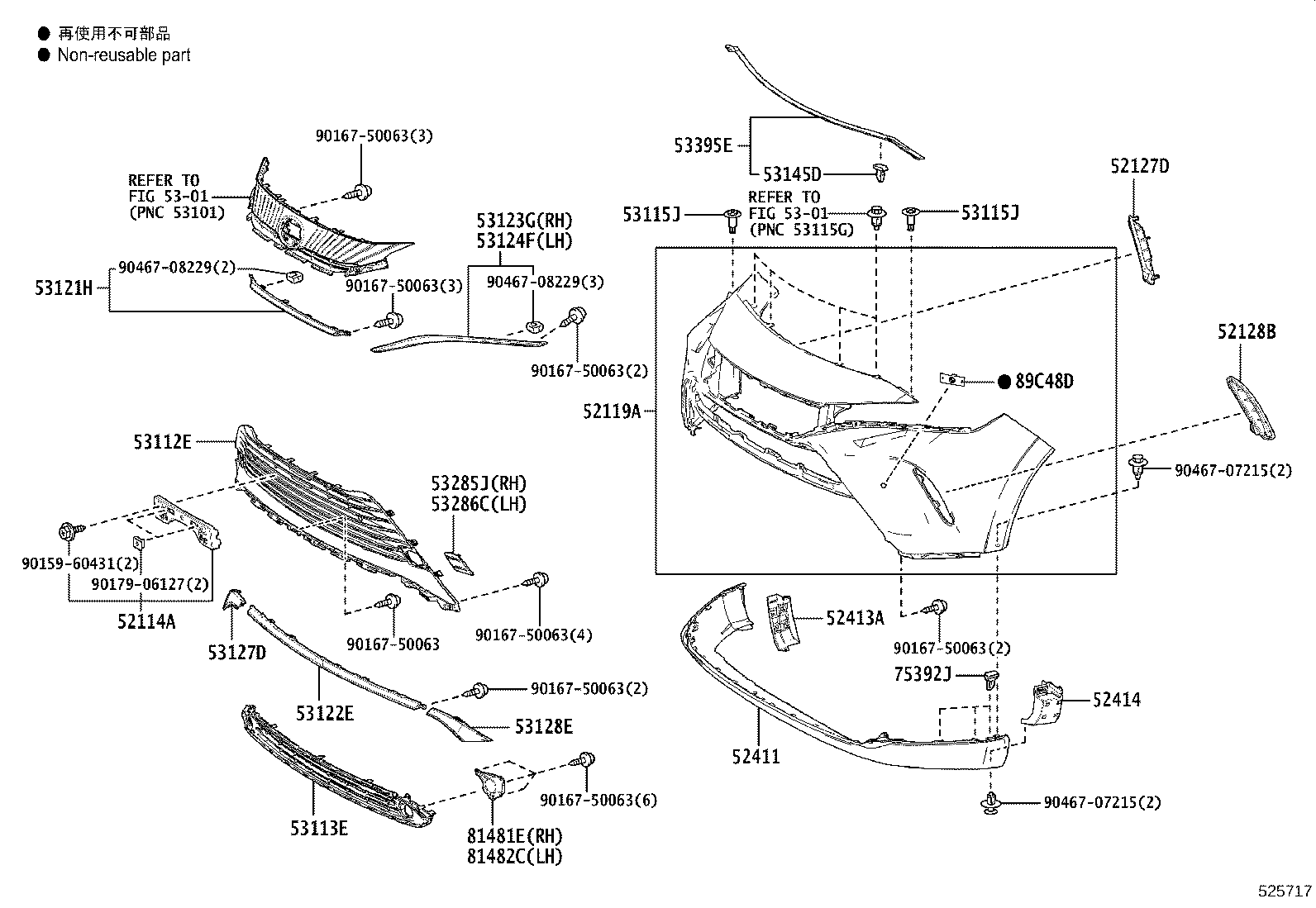

Exploded illustration 525717 89C48D — RETAINER, ULTRASONIC SENSOR, FRONT CORNER (3 parts) 5301 — not listed in this catalogue 5301 — not listed in this catalogue 52114A — BRACKET, FRONT BUMPER EXTENSION MOUNTING (2 parts) 52119A — COVER, FRONT BUMPER (7 parts) 52127D — COVER, FRONT BUMPER HOLE, RH (4 parts) 52128B — COVER, FRONT BUMPER HOLE, LH (3 parts) 52411 — GUARD, FRONT BUMPER (3 parts) 52413A — PAD, FRONT BUMPER GUARD, RH (2 parts) 52414 — PAD, FRONT BUMPER GUARD, LH (2 parts) 53112E — GRILLE, RADIATOR, LOWER NO.1 (6 parts) 53115J — CLIP, RADIATOR GRILLE BRACKET (2 parts) 53115J — CLIP, RADIATOR GRILLE BRACKET (2 parts) 53121H — MOULDING, RADIATOR GRILLE, NO.1 (3 parts) 53122E — MOULDING, RADIATOR GRILLE, LOWER (5 parts) 53123G — MOULDING, RADIATOR GRILLE SIDE, RH (3 parts) 53124F — MOULDING, RADIATOR GRILLE SIDE, LH (3 parts) 53127D — GRILLE, RADIATOR, LOWER SIDE RH (3 parts) 53128E — GRILLE, RADIATOR, LOWER SIDE LH (3 parts) 53145D — CLIP, RADIATOR GRILLE (2 parts) 53285J — COVER, FRONT BUMPER ARM HOLE, RH (2 parts) 53286C — COVER, FRONT BUMPER ARM HOLE, LH (2 parts) 53395E — SEAL, HOOD TO FRONT END PANEL (2 parts) 75392J — RETAINER, OUTSIDE MOULDING (2 parts) 81481E — COVER, FOG LAMP, RH (5 parts) 81482C — COVER, FOG LAMP, LH (5 parts) 9015960431 — not listed in this catalogue 9016750063 — not listed in this catalogue 9016750063 — not listed in this catalogue 9016750063 — not listed in this catalogue 9016750063 — not listed in this catalogue 9016750063 — not listed in this catalogue 9016750063 — not listed in this catalogue 9016750063 — not listed in this catalogue 9016750063 — not listed in this catalogue 9017906127 — not listed in this catalogue 9046708229 — not listed in this catalogue 9046708229 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046707215 — not listed in this catalogue 53113E — GRILLE, RADIATOR, LOWER NO.2 (1 parts)
525717 · 25 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
75 parts on this figure
Part number Description Fitment Price
52114A — Bracket, Front Bumper Extension Mounting
52114-48540 Bracket, Front Bumper Extension Mounting
2020-07 → 2022-10 ended
AXUH85 —
52114-48540 Bracket, Front Bumper Extension Mounting
2022-10 → 2024-08 ended
AXUH85 —
52119A — Cover, Front Bumper
52119-4D967 note Cover, Front Bumper
2020-07 → 2021-10 ended
AXUH85 M —
52119-4D969 note Cover, Front Bumper
2020-07 → 2021-09 ended
AXUH85 G,S —
52119-4D973 note Cover, Front Bumper
2021-09 → 2021-10 ended
AXUH85 G,S —
52119-4D975 note Cover, Front Bumper
2021-10 → 2022-10 ended
AXUH85 M —
52119-4D977 note Cover, Front Bumper
2021-10 → 2022-10 ended
AXUH85 G,S —
52119-4D975 note Cover, Front Bumper
2022-10 → 2024-08 ended
AXUH85 M —
52119-4D977 note Cover, Front Bumper
2022-10 → 2024-08 ended
AXUH85 G,S —
52127D — Cover, Front Bumper Hole, RH
52127-48210 note Cover, Front Bumper Hole, RH
2020-07 → 2022-03 ended
AXUH85 —
52127-48211 note Cover, Front Bumper Hole, RH
2022-03 → 2022-10 ended
AXUH85 —
52127-48200 note Cover, Front Bumper Hole, RH
2022-10 → 2024-08 ended
AXUH85 G —
52127-48211 note Cover, Front Bumper Hole, RH
2022-10 → 2024-08 ended
AXUH85 —
52128B — Cover, Front Bumper Hole, LH
52128-48180 Cover, Front Bumper Hole, LH
2020-07 → 2022-10 ended
AXUH85 —
52128-48170 note Cover, Front Bumper Hole, LH
2022-10 → 2024-08 ended
AXUH85 G —
52128-48180 Cover, Front Bumper Hole, LH
2022-10 → 2024-08 ended
AXUH85 —
52411 — Guard, Front Bumper
52411-48070 Guard, Front Bumper
2020-07 → 2022-10 ended
AXUH85 —
52411-48070 Guard, Front Bumper
2022-10 → 2024-08 ended
AXUH85 —
52411-48100-C0 note Guard, Front Bumper
2022-10 → 2024-08 ended
AXUH85 G —
52413A — Pad, Front Bumper Guard, RH
52413-48010 Pad, Front Bumper Guard, RH
2020-07 → 2022-10 ended
AXUH85 —
52413-48010 Pad, Front Bumper Guard, RH
2022-10 → 2024-08 ended
AXUH85 —
52414 — Pad, Front Bumper Guard, LH
52414-48010 Pad, Front Bumper Guard, LH
2020-07 → 2022-10 ended
AXUH85 —
52414-48010 Pad, Front Bumper Guard, LH
2022-10 → 2024-08 ended
AXUH85 —
53112E — Grille, Radiator, Lower NO.1
53112-48400 note Grille, Radiator, Lower NO.1
2020-07 → 2022-10 ended
AXUH85 M —
53112-48410 note Grille, Radiator, Lower NO.1
2020-07 → 2022-10 ended
AXUH85 G,S —
53112-48420 note Grille, Radiator, Lower NO.1
2020-07 → 2022-10 ended
AXUH85 S —
53112-48400 note Grille, Radiator, Lower NO.1
2022-10 → 2024-08 ended
AXUH85 M —
53112-48410 note Grille, Radiator, Lower NO.1
2022-10 → 2024-08 ended
AXUH85 G,S —
53112-48500 note Grille, Radiator, Lower NO.1
2022-10 → 2024-08 ended
AXUH85 S —
53113E — Grille, Radiator, Lower NO.2
53113-48050 note Grille, Radiator, Lower NO.2
2022-10 → 2024-08 ended
AXUH85 G —
53115J — Clip, Radiator Grille Bracket
90467-05063-C0 note Clip, Radiator Grille Bracket
2020-07 → 2022-10 ended
AXUH85 —
90467-05063-C0 note Clip, Radiator Grille Bracket
2022-10 → 2024-08 ended
AXUH85 —
53121H — Moulding, Radiator Grille, NO.1
53121-48210 Moulding, Radiator Grille, NO.1
2020-07 → 2022-10 ended
AXUH85 —
53121-48210 Moulding, Radiator Grille, NO.1
2022-10 → 2024-08 ended
AXUH85 —
53121-48220 note Moulding, Radiator Grille, NO.1
2022-10 → 2024-08 ended
AXUH85 G —
53122E — Moulding, Radiator Grille, Lower
53122-48150 Moulding, Radiator Grille, Lower
2020-07 → 2022-10 ended
AXUH85 M —
53122-48160 Moulding, Radiator Grille, Lower
2020-07 → 2022-10 ended
AXUH85 G,S —
53122-48150 Moulding, Radiator Grille, Lower
2022-10 → 2024-08 ended
AXUH85 M —
53122-48160 Moulding, Radiator Grille, Lower
2022-10 → 2024-08 ended
AXUH85 G,S —
53122-48170 note Moulding, Radiator Grille, Lower
2022-10 → 2024-08 ended
AXUH85 G —
53123G — Moulding, Radiator Grille Side, RH
53123-48070 Moulding, Radiator Grille Side, RH
2020-07 → 2022-10 ended
AXUH85 —
53123-48070 Moulding, Radiator Grille Side, RH
2022-10 → 2024-08 ended
AXUH85 —
53123-48160 note Moulding, Radiator Grille Side, RH
2022-10 → 2024-08 ended
AXUH85 G —
53124F — Moulding, Radiator Grille Side, LH
53124-48080 Moulding, Radiator Grille Side, LH
2020-07 → 2022-10 ended
AXUH85 —
53124-48080 Moulding, Radiator Grille Side, LH
2022-10 → 2024-08 ended
AXUH85 —
53124-48160 note Moulding, Radiator Grille Side, LH
2022-10 → 2024-08 ended
AXUH85 G —
53127D — Grille, Radiator, Lower Side RH
53127-48040 Grille, Radiator, Lower Side RH
2020-07 → 2022-10 ended
AXUH85 G,S —
53127-48040 Grille, Radiator, Lower Side RH
2022-10 → 2024-08 ended
AXUH85 G,S —
53127-48130 note Grille, Radiator, Lower Side RH
2022-10 → 2024-08 ended
AXUH85 G —
53128E — Grille, Radiator, Lower Side LH
53128-48040 Grille, Radiator, Lower Side LH
2020-07 → 2022-10 ended
AXUH85 G,S —
53128-48040 Grille, Radiator, Lower Side LH
2022-10 → 2024-08 ended
AXUH85 G,S —
53128-48130 note Grille, Radiator, Lower Side LH
2022-10 → 2024-08 ended
AXUH85 G —
53145D — Clip, Radiator Grille
53145-60030 Clip, Radiator Grille
2020-07 → 2022-10 ended
AXUH85 —
53145-60030 Clip, Radiator Grille
2022-10 → 2024-08 ended
AXUH85 —
53285J — Cover, Front Bumper Arm Hole, RH
53285-48090 Cover, Front Bumper Arm Hole, RH
2020-07 → 2022-10 ended
AXUH85 —
53285-48090 note Cover, Front Bumper Arm Hole, RH
2022-10 → 2024-08 ended
AXUH85 —
53286C — Cover, Front Bumper Arm Hole, LH
53286-48140 Cover, Front Bumper Arm Hole, LH
2020-07 → 2022-10 ended
AXUH85 —
53286-48140 note Cover, Front Bumper Arm Hole, LH
2022-10 → 2024-08 ended
AXUH85 —
53395E — Seal, Hood TO Front End Panel
53395-48110 Seal, Hood TO Front End Panel
2020-07 → 2022-10 ended
AXUH85 —
53395-48110 Seal, Hood TO Front End Panel
2022-10 → 2024-08 ended
AXUH85 —
75392J — Retainer, Outside Moulding
75392-35220 Retainer, Outside Moulding
2020-07 → 2022-10 ended
AXUH85 —
75392-35220 Retainer, Outside Moulding
2022-10 → 2024-08 ended
AXUH85 —
81481E — Cover, Fog Lamp, RH
81481-48300 Cover, Fog Lamp, RH
2020-07 → 2021-12 ended
AXUH85 S —
81481-48300 Cover, Fog Lamp, RH
2020-07 → 2022-10 ended
AXUH85 G,M —
81481-48310 Cover, Fog Lamp, RH
2021-12 → 2022-10 ended
AXUH85 S —
81481-48300 note Cover, Fog Lamp, RH
2022-10 → 2024-08 ended
AXUH85 M —
81481-48310 note Cover, Fog Lamp, RH
2022-10 → 2024-08 ended
AXUH85 G,S —
81482C — Cover, Fog Lamp, LH
81482-48250 Cover, Fog Lamp, LH
2020-07 → 2021-12 ended
AXUH85 S —
81482-48250 Cover, Fog Lamp, LH
2020-07 → 2022-10 ended
AXUH85 G,M —
81482-48260 Cover, Fog Lamp, LH
2021-12 → 2022-10 ended
AXUH85 S —
81482-48250 note Cover, Fog Lamp, LH
2022-10 → 2024-08 ended
AXUH85 M —
81482-48260 note Cover, Fog Lamp, LH
2022-10 → 2024-08 ended
AXUH85 G,S —
89C48D — Retainer, Ultrasonic Sensor, Front Corner
89348-48310 Retainer, Ultrasonic Sensor, Front Corner
2020-07 → 2021-08 ended
AXUH85 G,S —
89348-48311 Retainer, Ultrasonic Sensor, Front Corner
2021-09 → 2022-10 ended
AXUH85 G,S —
89348-48311 Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2024-08 ended
AXUH85 G,S —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
