Toyota Venza

2020-07 → present · chassis AXUH85 · catalogue 524420 · United States

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

35 part groups · 3 illustrations

Illustrations

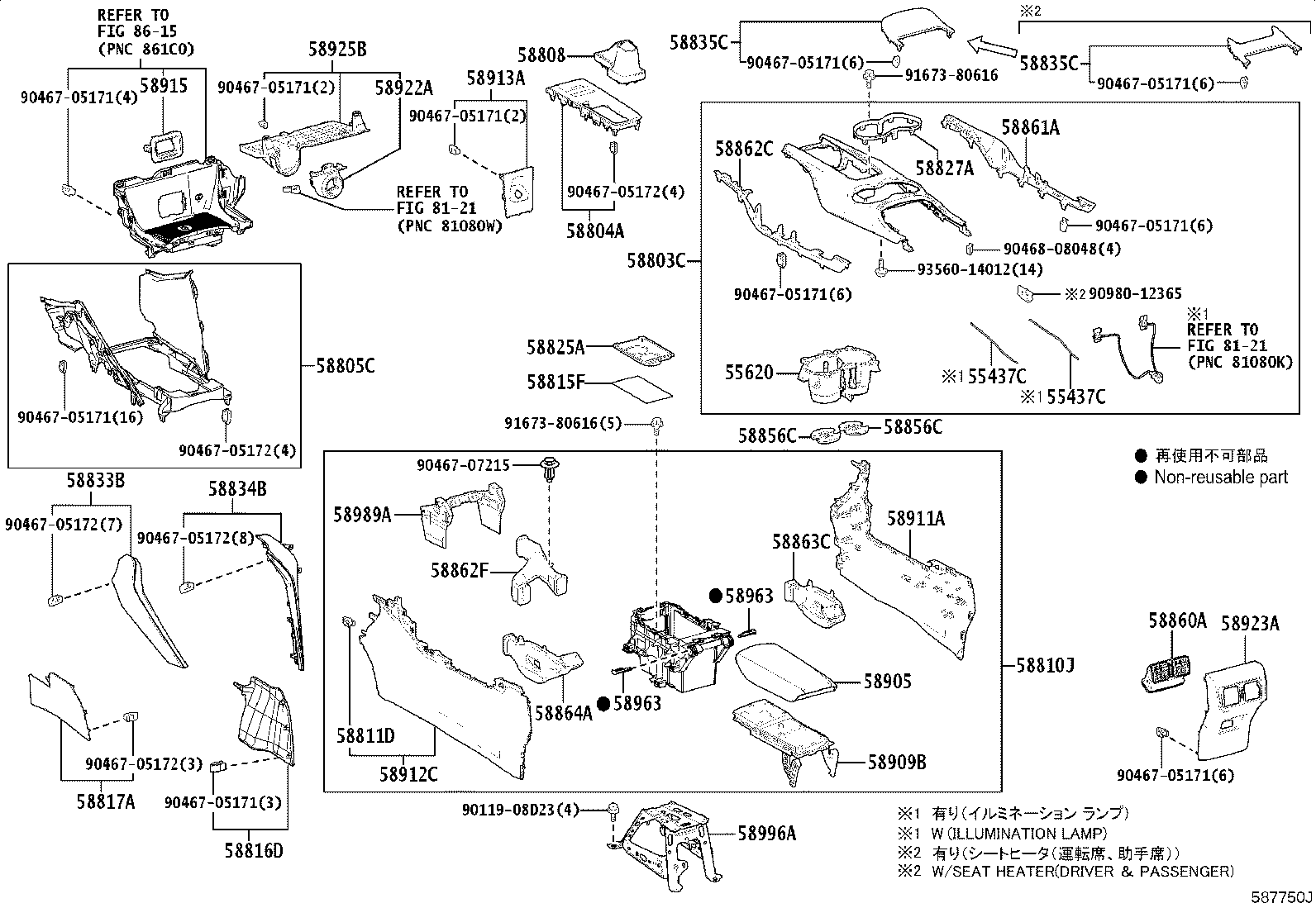

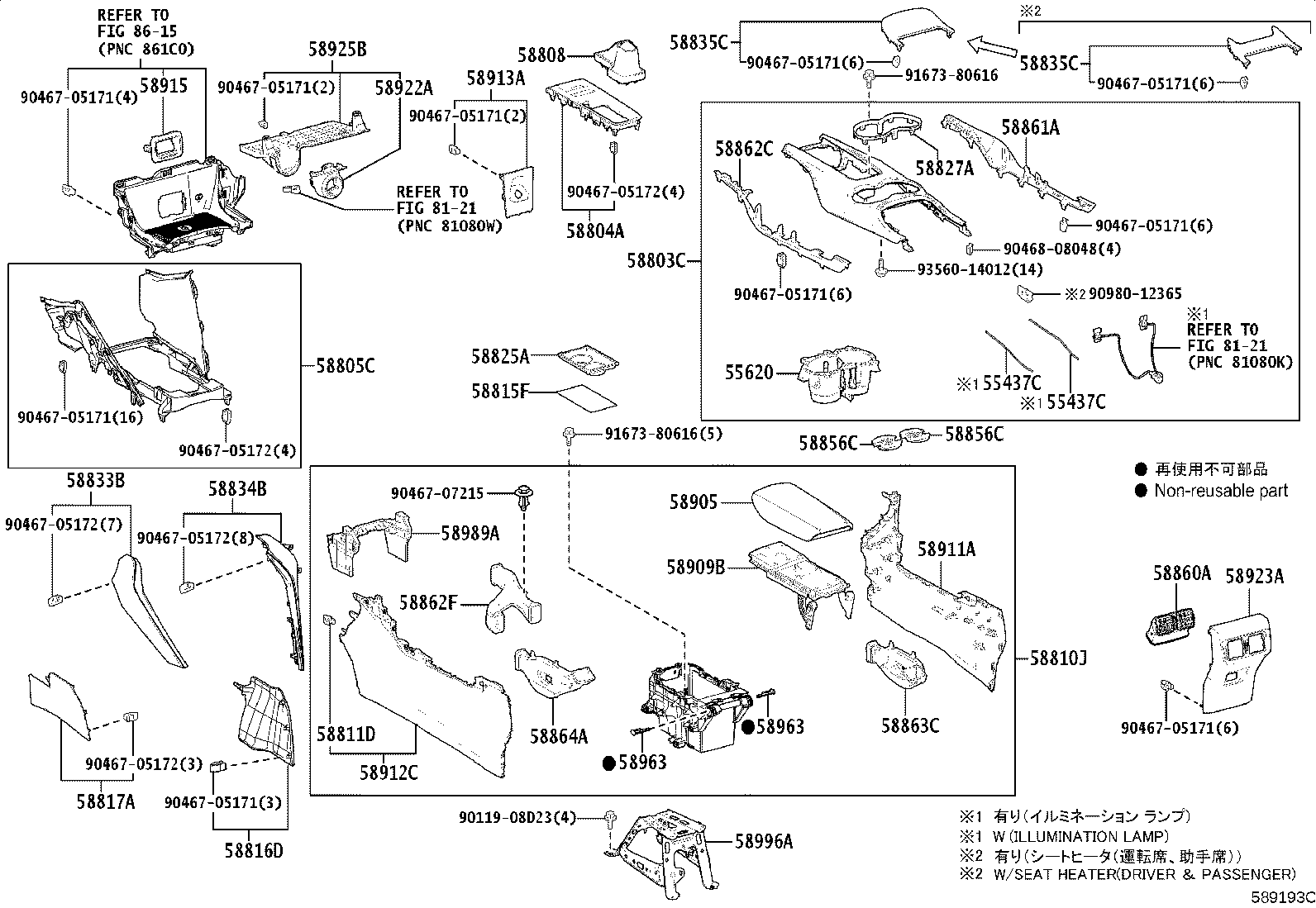

Figure 587559K 587559K 2020-07 → 2020-11 Figure 587750J 587750J 2020-11 → 2022-10 Figure 589193C 589193C 2022-10 → —

Part groups

PNCDescription
55437C Retainer, Instrument Panel Finish Panel, NO.1
55620 Holder Assy, Instrument Panel Cup
58803C Box Sub-assy, Console Cup Holder
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58808 Cover Sub-assy, Shifting Hole
58810J Box Assy, Console
58811D Clip(FOR CONSOLE BOX)
58815F Carpet, Console Box
58816D Insert, Console Box, Front NO.1
58817A Insert, Console Box, Front NO.2
58825A Pocket, Console Box
58827A Garnish, Console Box Pocket
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58835C Ornament, Console Box
58856C Holder, Console
58860A Register Assy, Console Box
58861A Support, Console Box, NO.1
58862C Support, Console Box, NO.2
58862F Duct, Console Box, NO.2
58863C Duct, Console Box, NO.3
58864A Support, Console Box, NO.4
58905 Door Sub-assy, Console Compartment
58909B Retainer Sub-assy, Console Compartment
58911A Panel, Box Side, NO.1
58912C Panel, Box Side, NO.2
58913A Panel, Box, NO.3
58915 Panel, Box Bottom
58922A Plate, Box, Upper NO.2
58923A Panel, Console Rear End
58925B Insulator, Console Box, Upper
58963 Shaft, Console Compartment Door Hinge
58989A Retainer, Console Box
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
