Toyota Venza

2020-07 → present · chassis AXUH85 · catalogue 524420 · United States

Supported model Data version 2022-10

Roof Panel & Back Window Glass

41 part groups · 4 illustrations

PNC	Description
62435	Pad, Roof Side Rail Garnish, RH
62436B	Pad, Roof Side Rail Garnish, LH

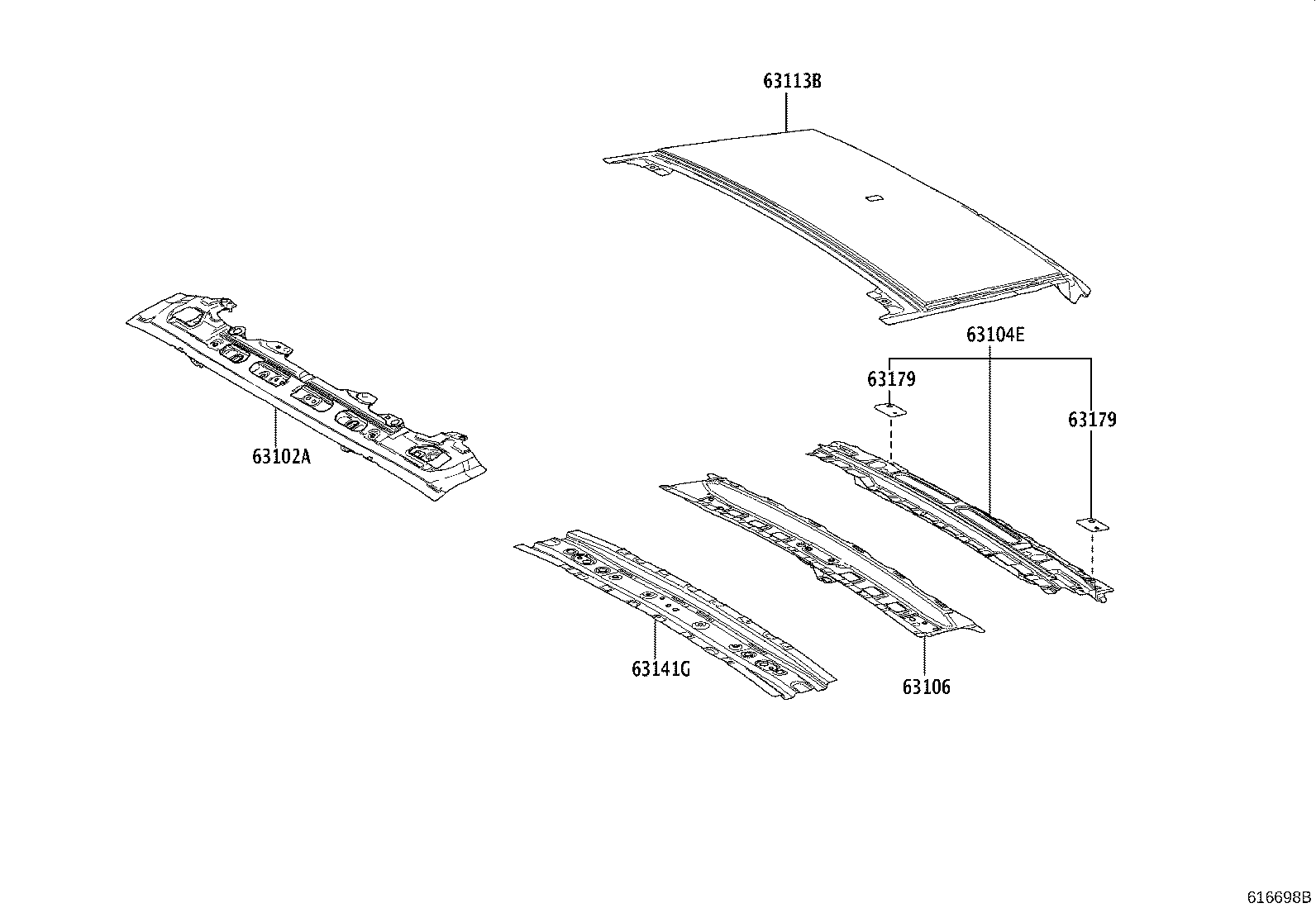

63102A	Panel Sub-assy, Windshield Header
63103A	Reinforcement Sub-assy, Roof Panel
63104E	Reinforcement Sub-assy, Roof Panel, Rear
63106	Reinforcement Sub-assy, Roof Panel, NO.4
63111	Panel, Roof
63113B	Panel, Roof, Rear
63141G	Reinforcement, Roof Panel, NO.1
63143B	Reinforcement, Roof Panel, NO.3
63144A	Reinforcement, Roof Panel, NO.4
63148A	Reinforcement, Roof Panel, NO.7
63149D	Reinforcement, Roof Panel, NO.8
63179	Plate, Roof Panel Reinforcement, LH

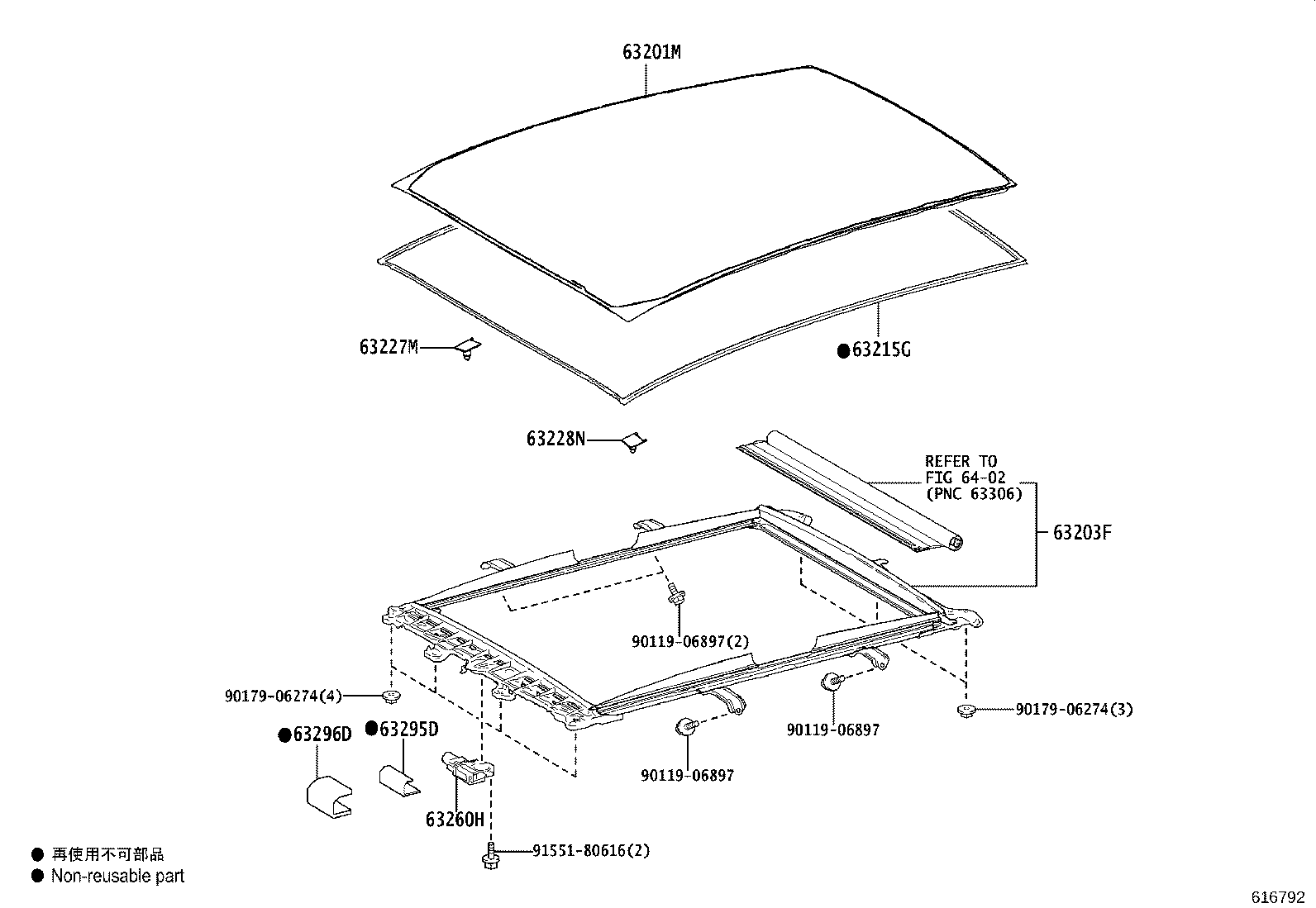

63201M	Glass Sub-assy, Roof Window, NO.1
63203F	Housing Sub-assy, Sliding Roof
63215G	Moulding, Moon Roof, Front
63227M	Clip, Roof Window, Lower
63228N	Clip, Roof Window, Side
63260H	Gear Assy, Sliding Roof Drive
63295D	Pad, Sliding Roof Housing
63296D	Pad, Sliding Roof Housing, NO.2
63437A	Seal, Roof Carrier, NO.2
63438B	Seal, Roof Carrier, NO.3 RH
63439A	Seal, Roof Carrier, NO.3 LH

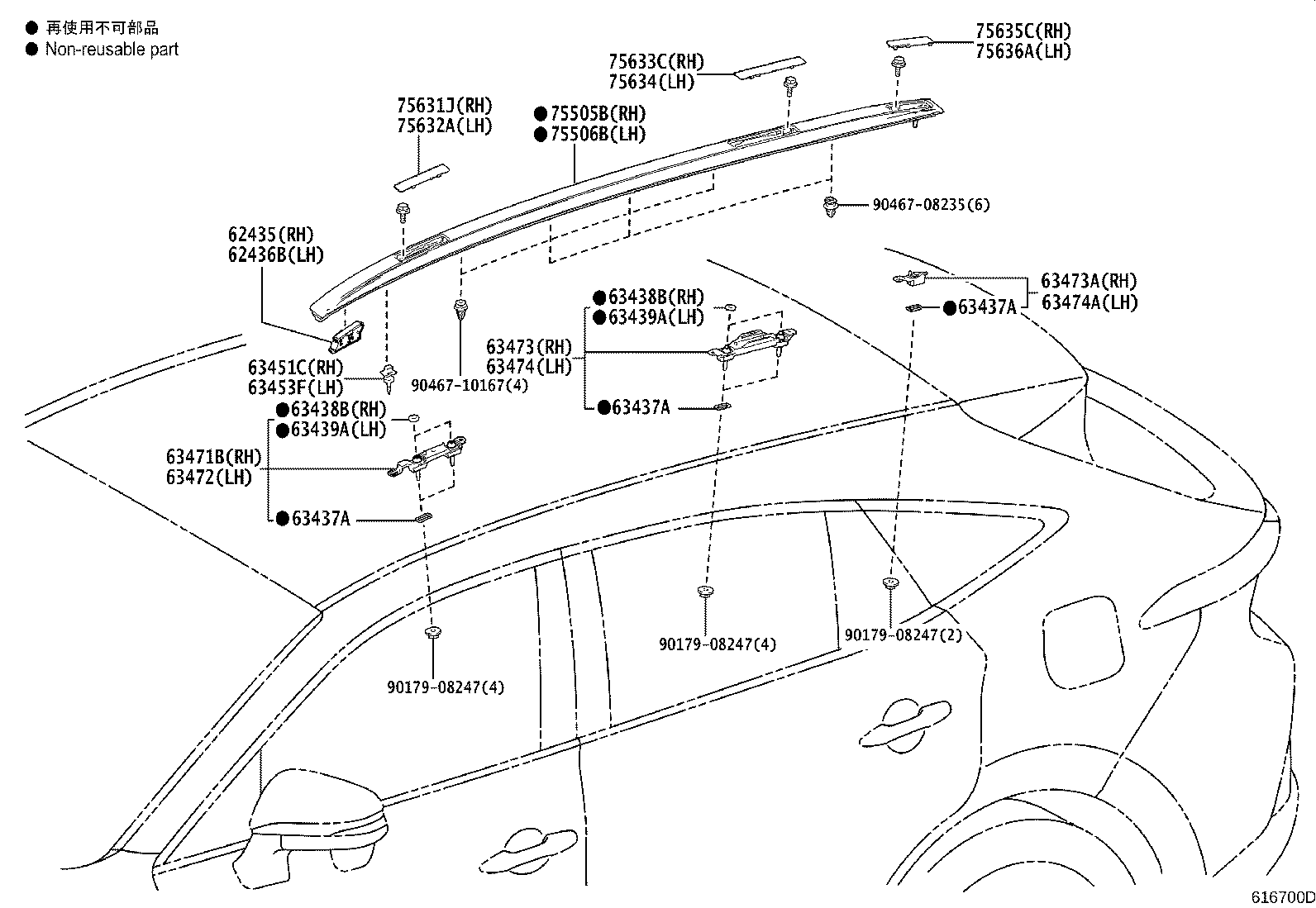

63451C	Retainer, Roof Rack, Front RH
63453F	Retainer, Roof Rack, Front LH
63471B	Leg, Roof Rack, Front RH
63472	Leg, Roof Rack, Front LH
63473	Leg, Roof Rack, Rear RH
63473A	Leg, Roof Rack, Rear NO.2 RH
63474	Leg, Roof Rack, Rear LH
63474A	Leg, Roof Rack, Rear NO.2 LH
75505B	Garnish Sub-assy, Roof Side, Front RH
75506B	Garnish Sub-assy, Roof Side, Front LH
75631J	Lid, Roof Side Garnish, NO.1 RH
75632A	Lid, Roof Side Garnish, NO.1 LH
75633C	Lid, Roof Side Garnish, NO.2 RH
75634	Lid, Roof Side Garnish, NO.2 LH
75635C	Lid, Roof Side Garnish, NO.3 RH
75636A	Lid, Roof Side Garnish, NO.3 LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
