Toyota Venza
2020-07 → present · chassis AXUH85 · catalogue 524420 · United States
Supported model
Data version 2022-10

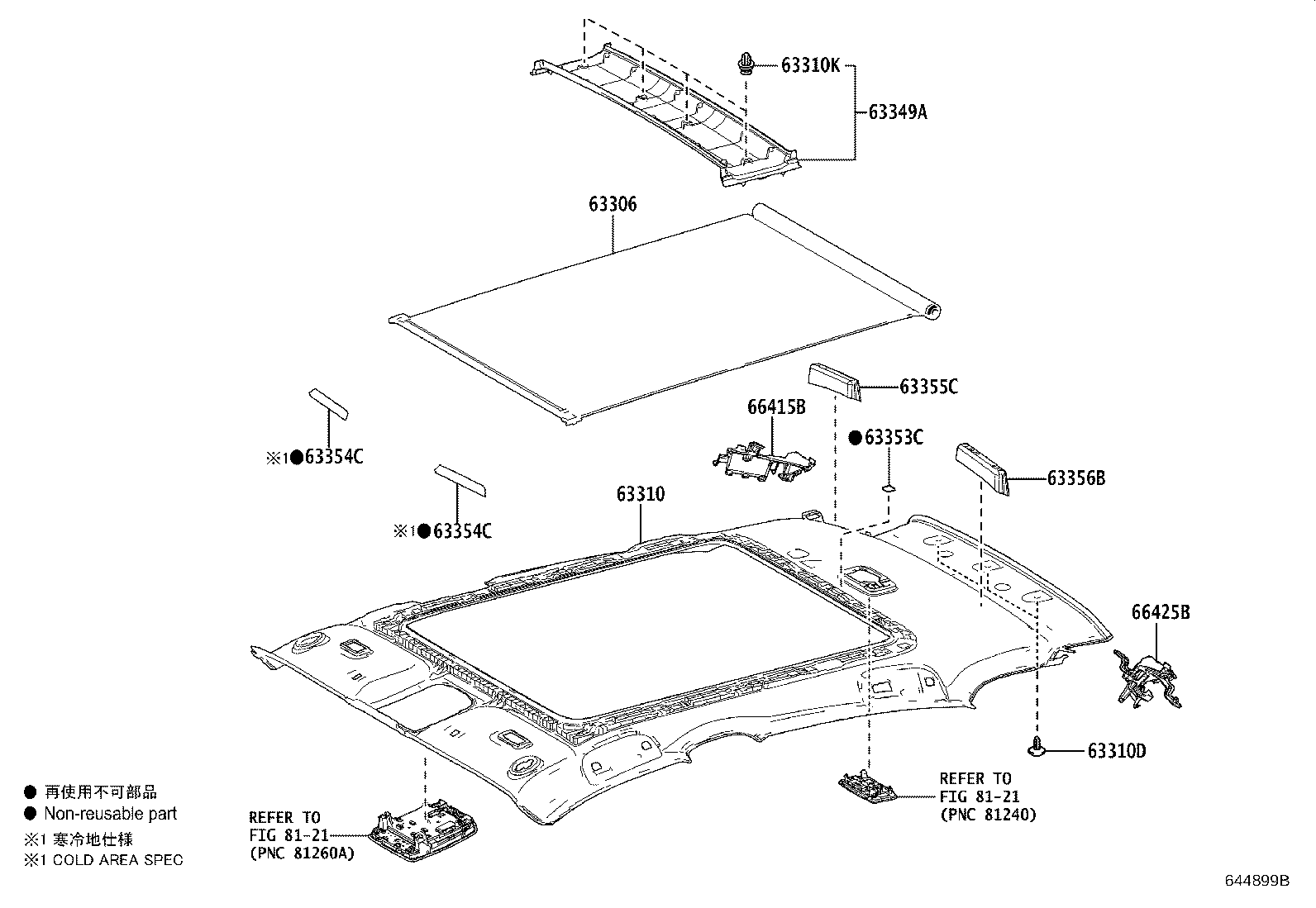

Roof Headlining & Silencer Pad
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63310K | Clip |
| 63327E | Fastener, Roof Headlining, NO.1 |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63349A | Garnish, Roof Headlining, Rear |
| 63351C | Pad, Roof Headlining |
| 63352C | Pad, Roof Headlining, End |
| 63353C | Pad, Roof Headlining, Center |
| 63354C | Pad, Roof Headlining Front Side |
| 63355C | Pad, Roof Headlining, RH |
| 63356B | Pad, Roof Headlining, LH |
| 63361 | Support, Roof Headlining, NO.1 |
| 63362 | Support, Roof Headlining, NO.2 |
| 66415B | Spacer, Side Rail, Rear NO.2 RH |
| 66425B | Spacer, Side Rail, Rear NO.2 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
