Toyota Venza

2020-07 → present · chassis AXUH85 · catalogue 524420 · United States

Supported model Data version 2022-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

80 part groups · 7 illustrations

Illustrations

71C826 2020-07 → —

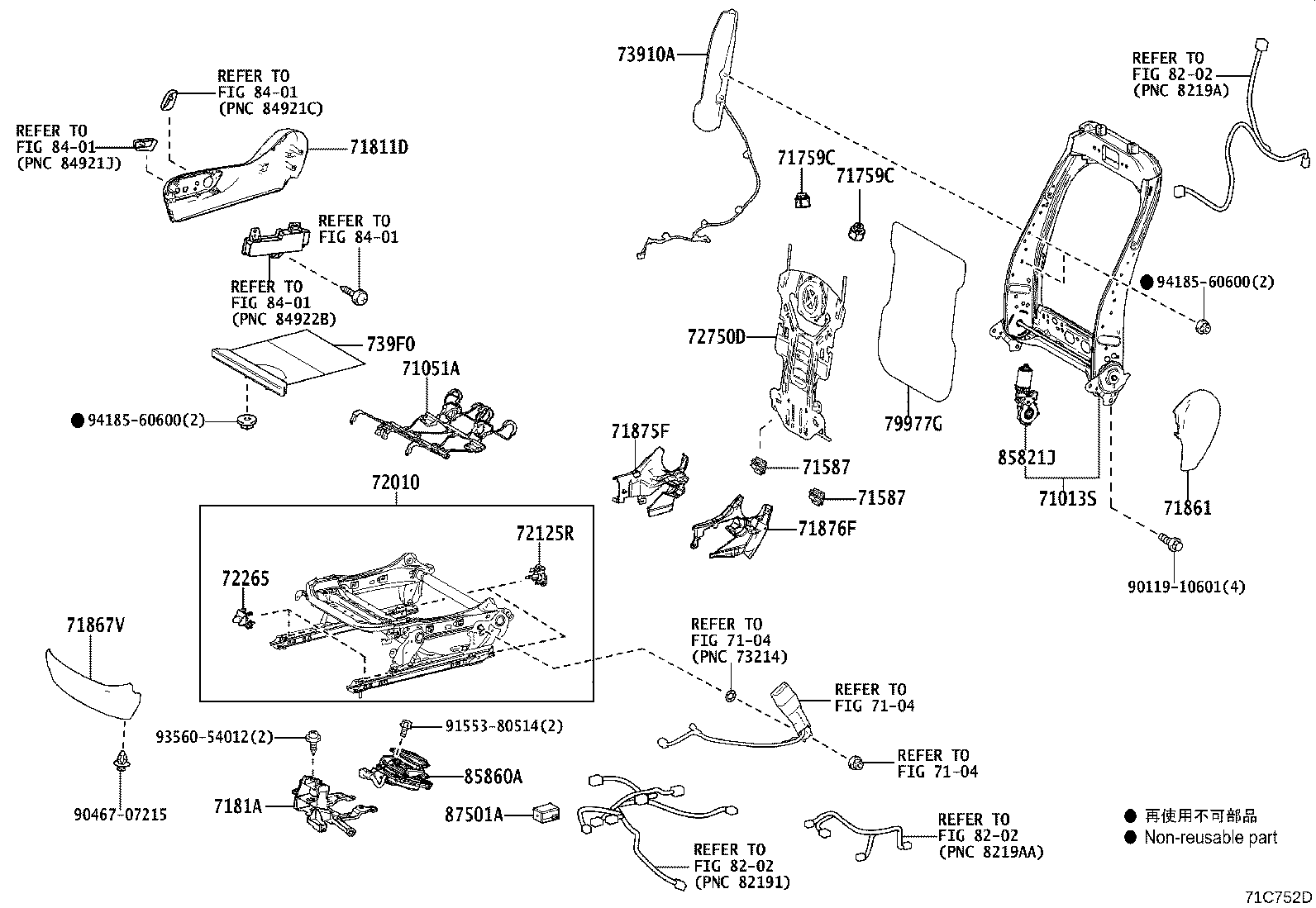

71C752F 2020-07 → 2022-10

Part groups

PNC	Description
71013S	Frame Sub-assy, Front Seatback, RH
71014S	Frame Sub-assy, Front Seatback, LH
71051A	Spring Sub-assy, Front Seat Cushion, RH
71052A	Spring Sub-assy, Front Seat Cushion, LH
71053S	Spring Sub-assy, Front Seatback, RH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587	Protector, Front Seatback Edge
71588	Protector, Front Seatback Edge, NO.2
71759C	Hook, Front Seatback, NO.1
71759D	Hook, Front Seatback, NO.2
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
7181A	Holder, Front Seat Cushion Wire Harness, RH
7181B	Holder, Front Seat Cushion Wire Harness, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71867V	Shield, Front Seat Cushion, Front RH
71868N	Shield, Front Seat Cushion, Front LH
71873	Shield, Front Seat Cushion, Lower RH
71873A	Shield, Front Seat Cushion, Lower
71873U	Shield, Front Seat Cushion, Lower RH
71874	Shield, Front Seat Cushion, Lower LH
71874A	Shield, Front Seat Cushion, Lower LH
71874U	Shield, Front Seat Cushion, Lower LH
71875F	Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G	Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876F	Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G	Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
72010	Adjuster Assy, Front Seat, RH
72020	Adjuster Assy, Front Seat, LH
72123A	Cover, Seat Track Bracket, Outer Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72125P	Cover, Seat Track, Upper Rear NO.3
72125R	Cover, Seat Track, Upper Rear NO.1
72127A	Cover, Seat Track Bracket, Inner Front RH
72128A	Cover, Seat Track Bracket, Inner Front LH
72137T	Cover, Seat Track Bracket, Outer Rear RH
72138N	Cover, Seat Track Bracket, Outer Rear LH
72157F	Cover, Seat Track Bracket, Inner Rear RH
72158E	Cover, Seat Track Bracket, Inner Rear LH
72211	Handle, Seat Track Adjusting
72265	Cover, Seat Track Upper Rail, RH
72266	Cover, Seat Track Upper Rail, LH
72525A	Handle, Reclining Adjuster Release, RH
72551B	Cover, Reclining Hinge, RH
72713	Bracket, Seat Adjuster Shield Clamp, RH
72714	Bracket, Seat Adjuster Shield Clamp, LH
72750D	Adjuster Assy, Lumbar Support, RH
72760D	Adjuster Assy, Lumbar Support, LH
73910A	Airbag Assy, Front Seat, RH
73920A	Airbag Assy, Front Seat, LH
739F0	Airbag Assy, Front Seat Cushion, RH
79977G	Felt, Front Seatback, RH
79977H	Felt, Front Seatback, LH
85821J	Motor Assy, Power Seat Reclining, RH
85821K	Motor Assy, Power Seat Tilt, RH
85821L	Motor Assy, Power Seat Lifter, RH
85822B	Motor Assy, Power Seat Tilt, LH
85822C	Motor Assy, Power Seat Lifter, LH
85860A	Blower Assy, Seat Cushion Climate Control, RH
85860B	Blower Assy, Seat Cushion Climate Control, LH
85862C	Blower, Seat Cushion Climate Control, RH
85867	Blower, Seatback Climate Control, RH
85867A	Blower, Seatback Climate Control, LH
85867G	Blower, Seatback Climate Control, LH
87501A	Control Sub-assy, Seat Heater, RH
87501B	Control Sub-assy, Seat Heater, LH
87510K	Heater Assy, Front Seat Cushion, RH
87510L	Heater Assy, Front Seat Cushion, LH
87510M	Heater Assy, Front Seatback, RH
87510N	Heater Assy, Front Seatback, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
