Toyota Venza

2020-07 → present · chassis AXUH85 · catalogue 524420 · United States

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

13 part groups · 2 illustrations

Illustrations

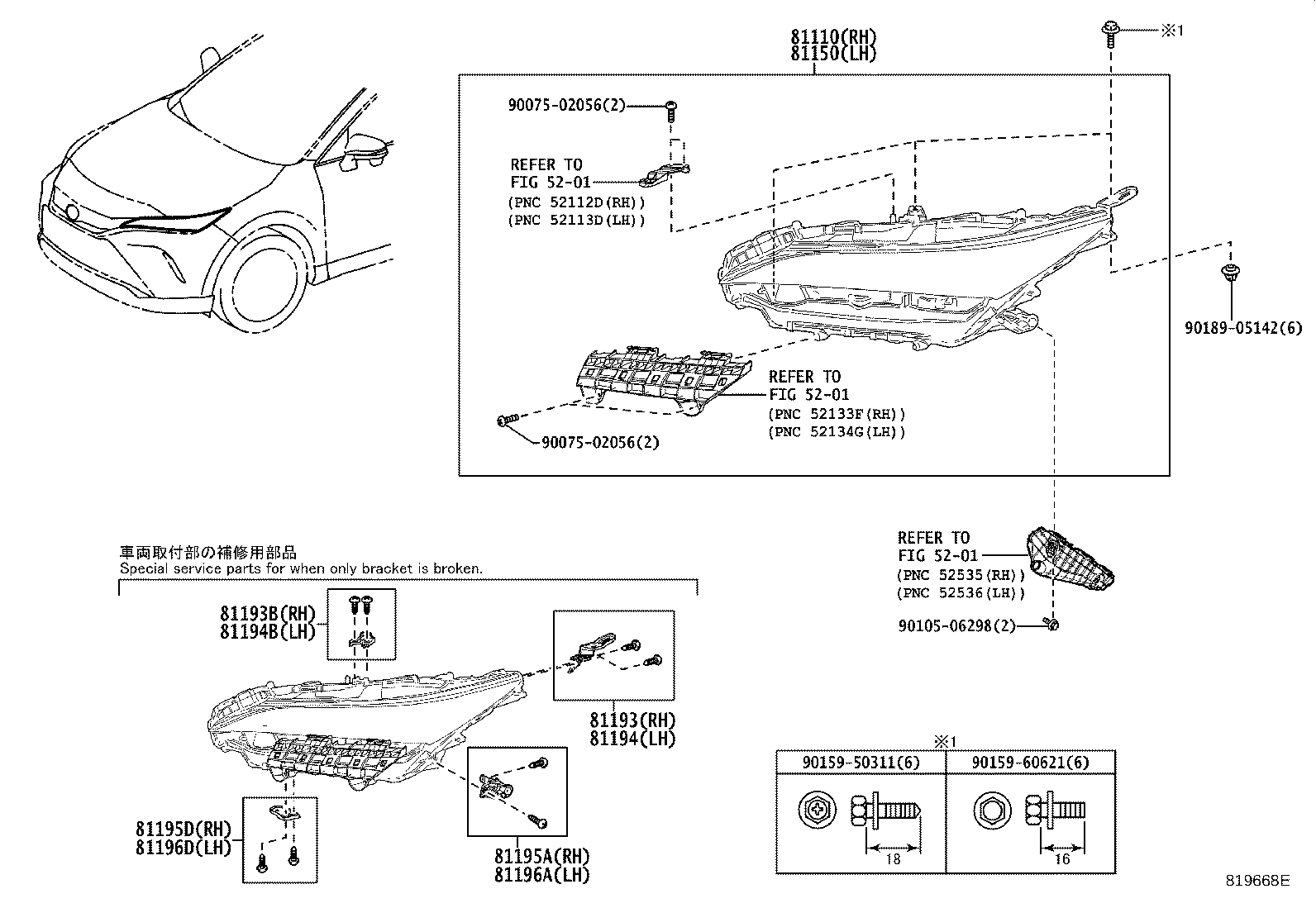

Figure 819667D 819667D 2020-07 → — Figure 819668E 819668E 2020-07 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81135 Unit Assy, Headlamp, RH
8113A Led, Headlamp Front Turn Signal
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81193B Retainer, Headlamp Protector, Upper RH NO.2
81194 Retainer, Headlamp Protector, Upper LH
81194B Retainer, Headlamp Protector, Upper LH NO.2
81195A Retainer, Headlamp Protector, Lower RH
81195D Retainer, Headlamp Protector, Lower RH NO.2
81196A Retainer, Headlamp Protector, Lower LH
81196D Retainer, Headlamp Protector, Lower LH NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
