Toyota Venza
2020-07 → present · chassis AXUH85 · catalogue 524420 · United States
Supported model
Data version 2022-10
Wiring & Clamp
116 part groups · 13 illustrations

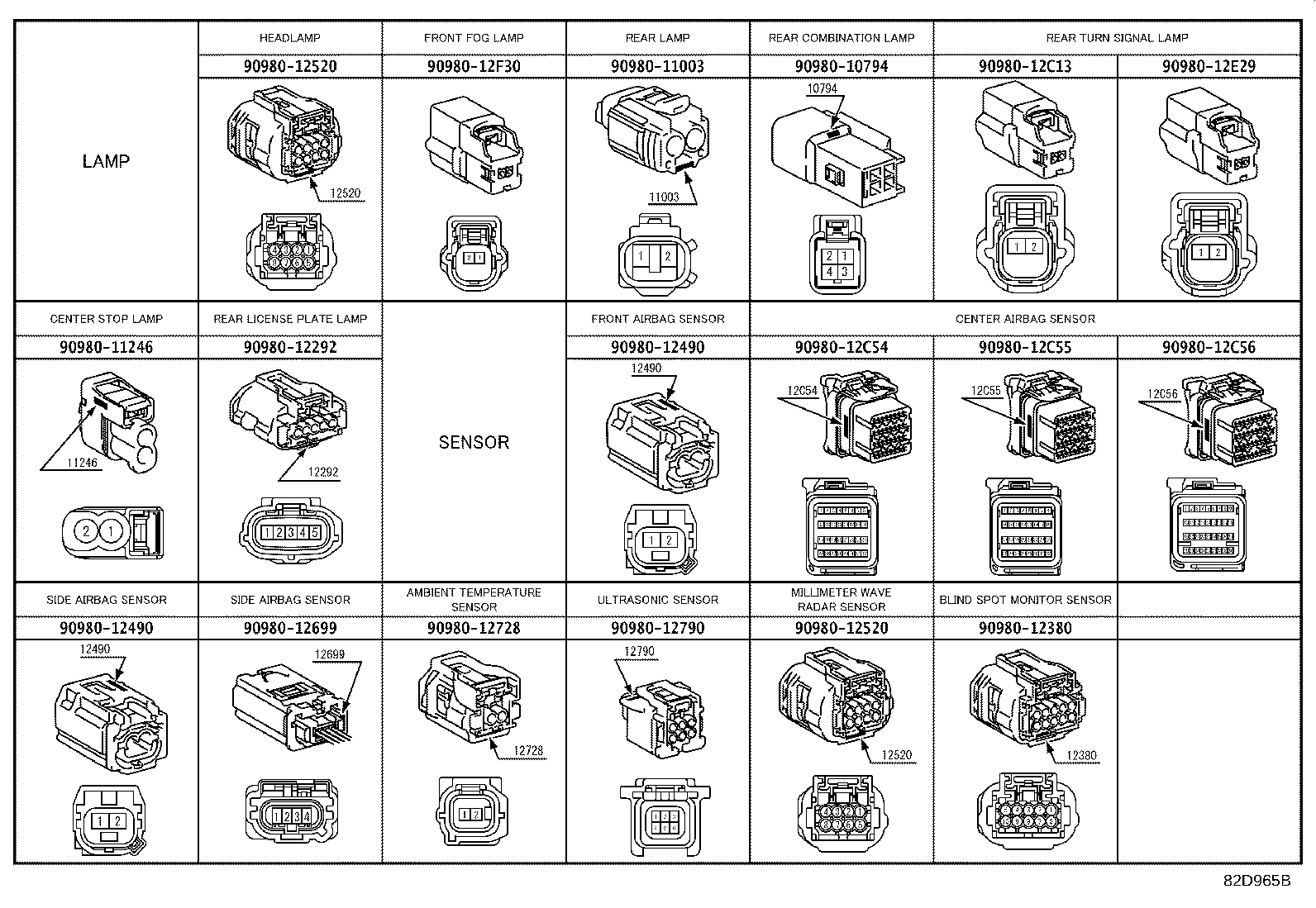

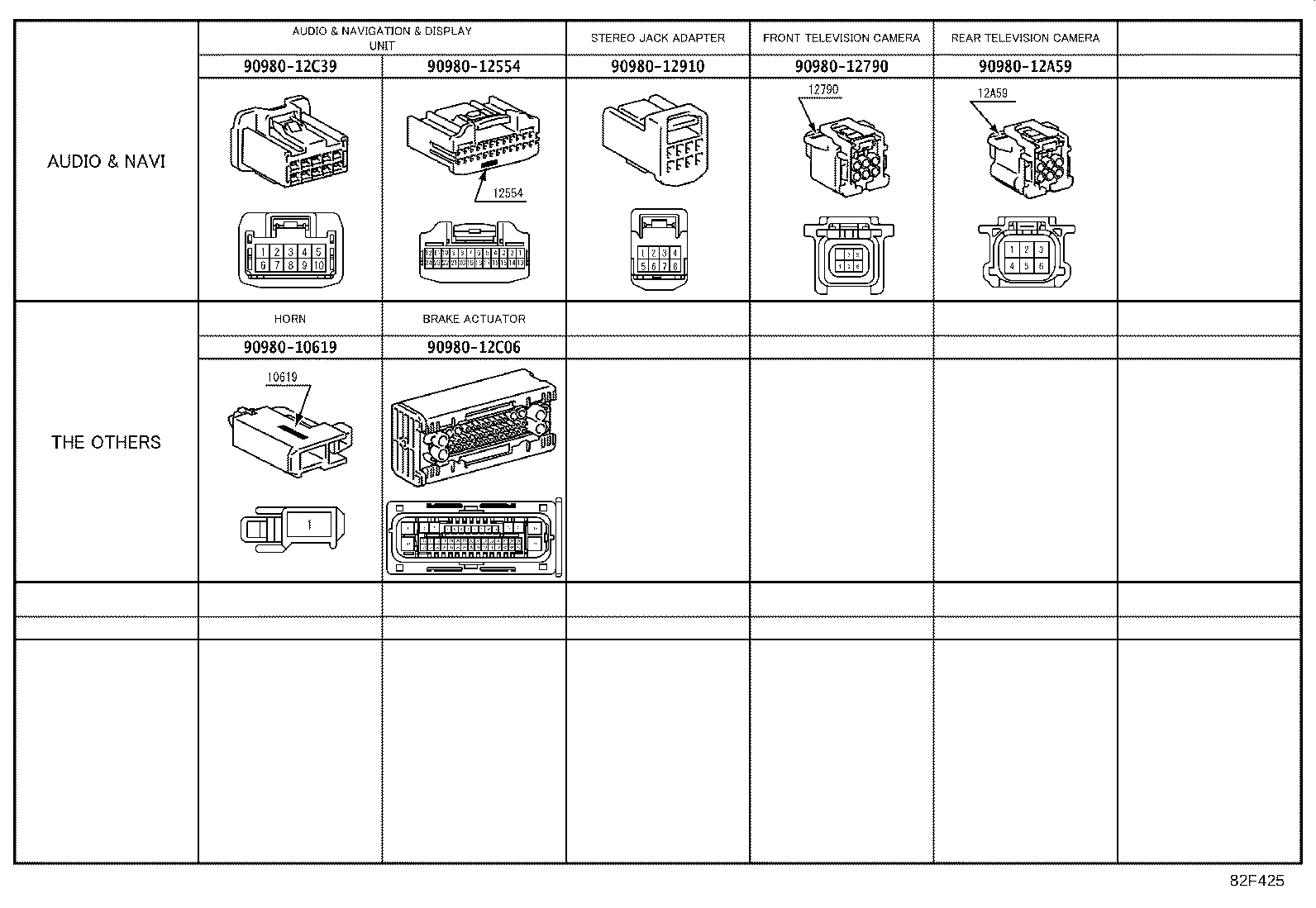

Illustrations
Part groups
| PNC | Description |
|---|---|
| 81269B | Seal, Fog Lamp |
| 82111 | Wire, Engine Room Main |
| 82114 | Wire, Engine Room, NO.4 |

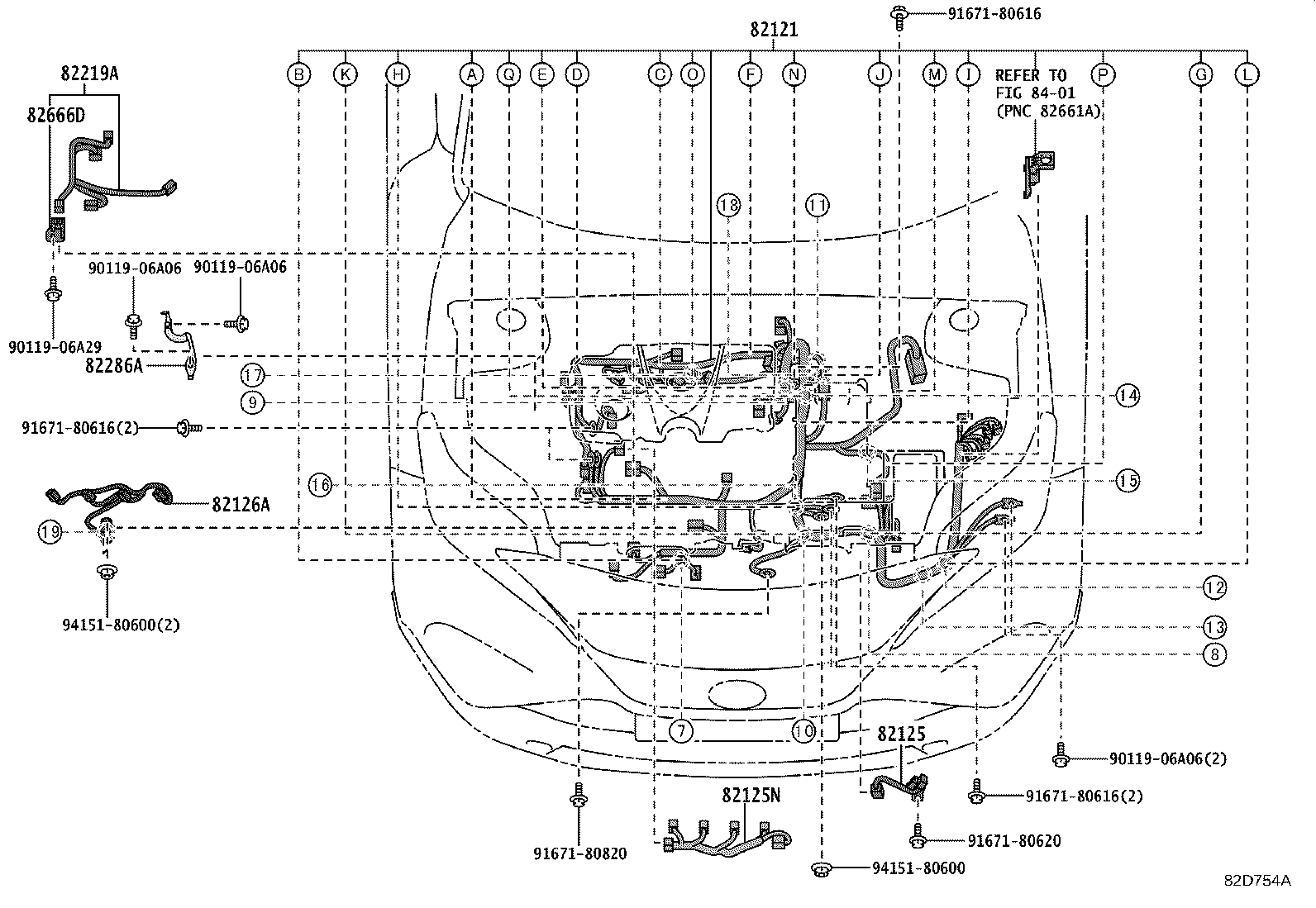

| 82121 | Wire, Engine |
| 82125 | Wire, Transmission |
| 82125N | Wire, Engine, NO.5 |
| 82126A | Wire, Engine, NO.6 |

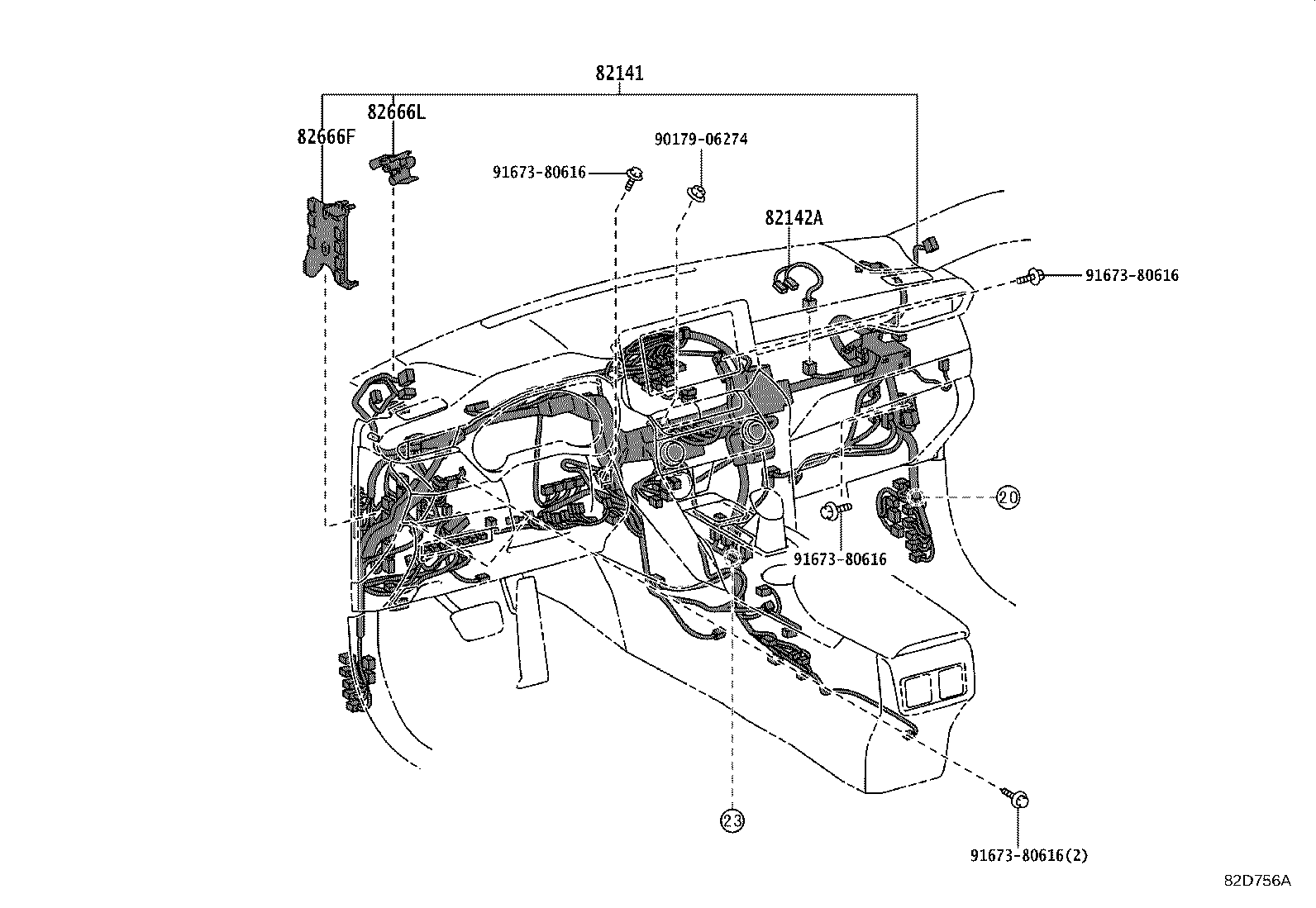

| 82141 | Wire, Instrument Panel |
| 82142A | Wire, Instrument Panel, NO.2 |

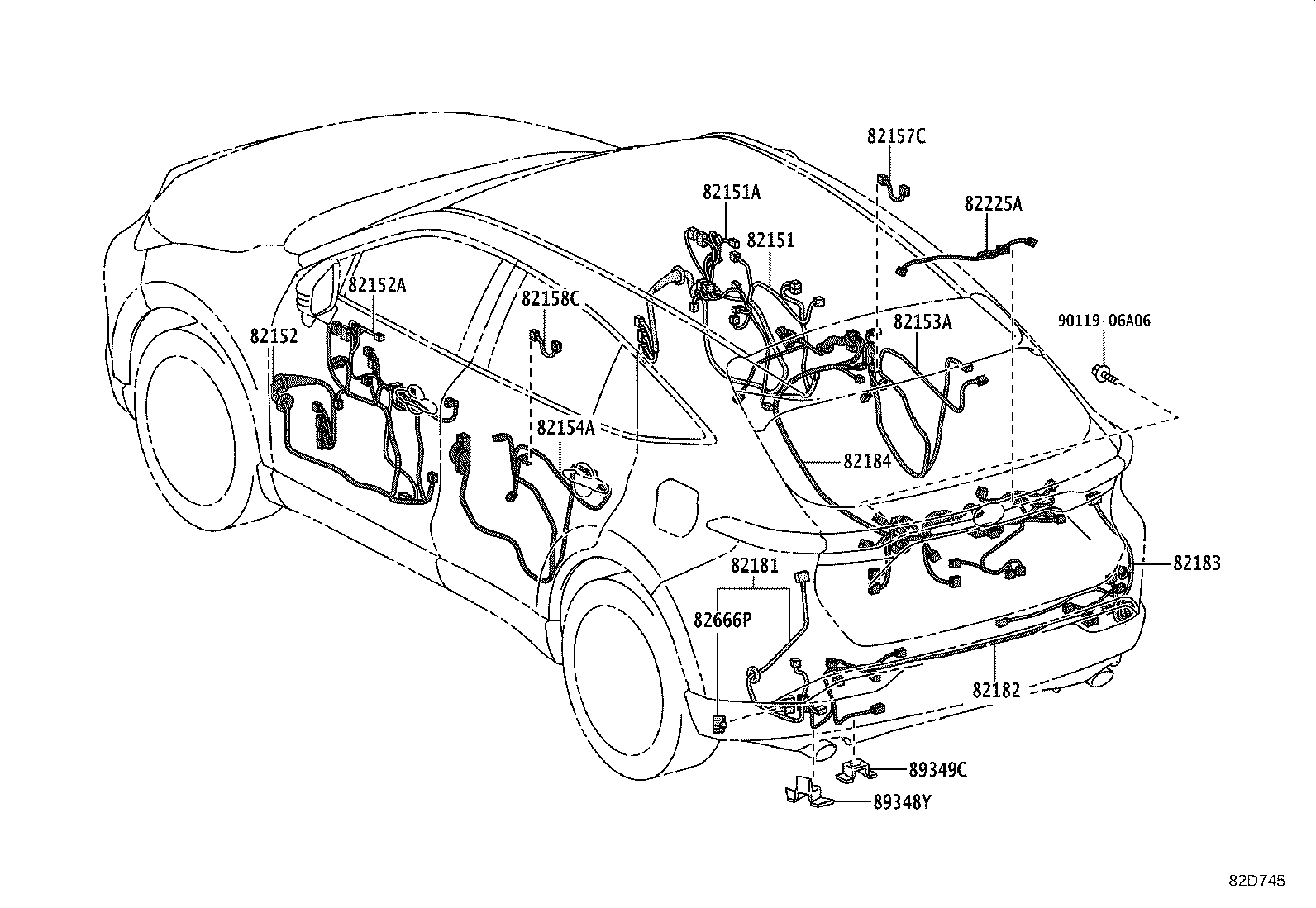

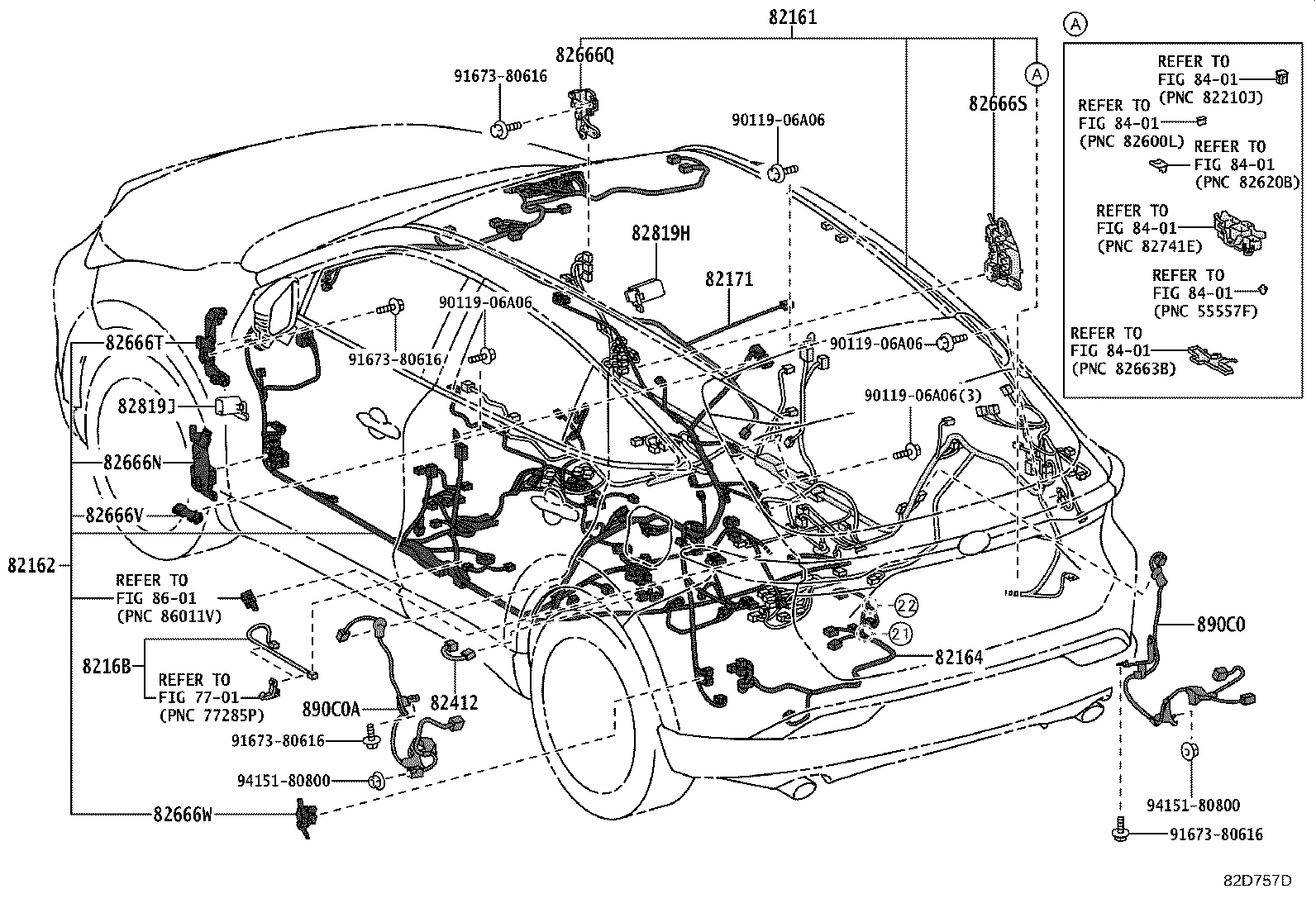

| 82151 | Wire, Front Door, RH |
| 82151A | Wire, Front Door, NO.2, RH |
| 82152 | Wire, Front Door, LH |
| 82152A | Wire, Front Door, NO.2, LH |
| 82153A | Wire, Rear Door, RH |
| 82154A | Wire, Rear Door, LH |
| 82157C | Wire, Rear Door, RH NO.2 |
| 82158C | Wire, Rear Door, LH NO.2 |
| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82164 | Wire, Frame |
| 82165 | Wire, Frame, NO.2 |
| 8216B | Wire, Floor NO.8 |
| 82171 | Wire, Roof, NO.1 |
| 82181 | Wire, Luggage Room, NO.1 |
| 82182 | Wire, Luggage Room, NO.2 |
| 82183 | Wire, Luggage Room, NO.3 |
| 82184 | Wire, Back Door, NO.1 |

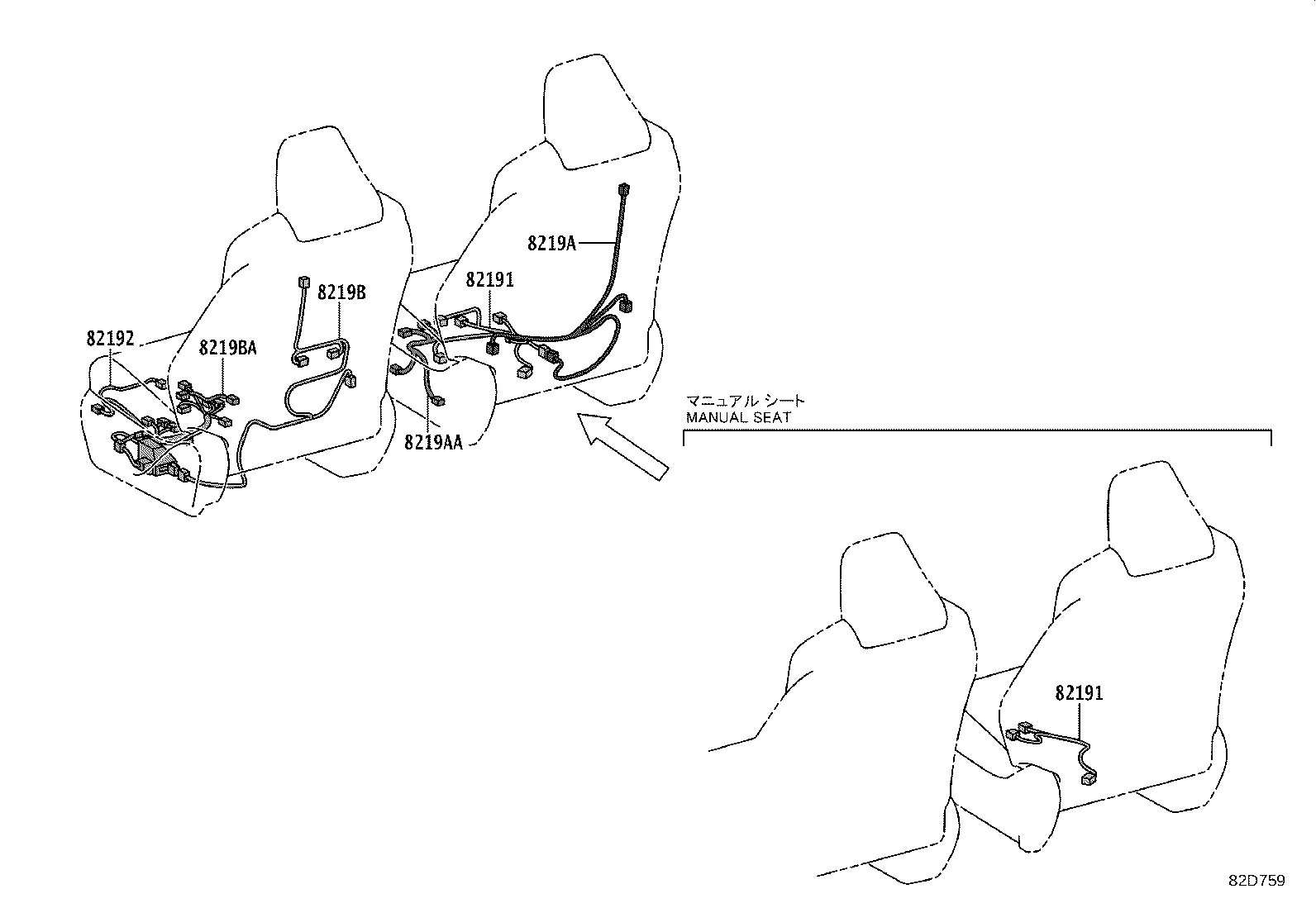

| 82191 | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 8219A | Wire, Front Seat, RH NO.2 |
| 8219AA | Wire, Front Seat, RH NO.3 |
| 8219B | Wire, Front Seat, LH NO.2 |
| 8219BA | Wire, Front Seat, LH NO.3 |

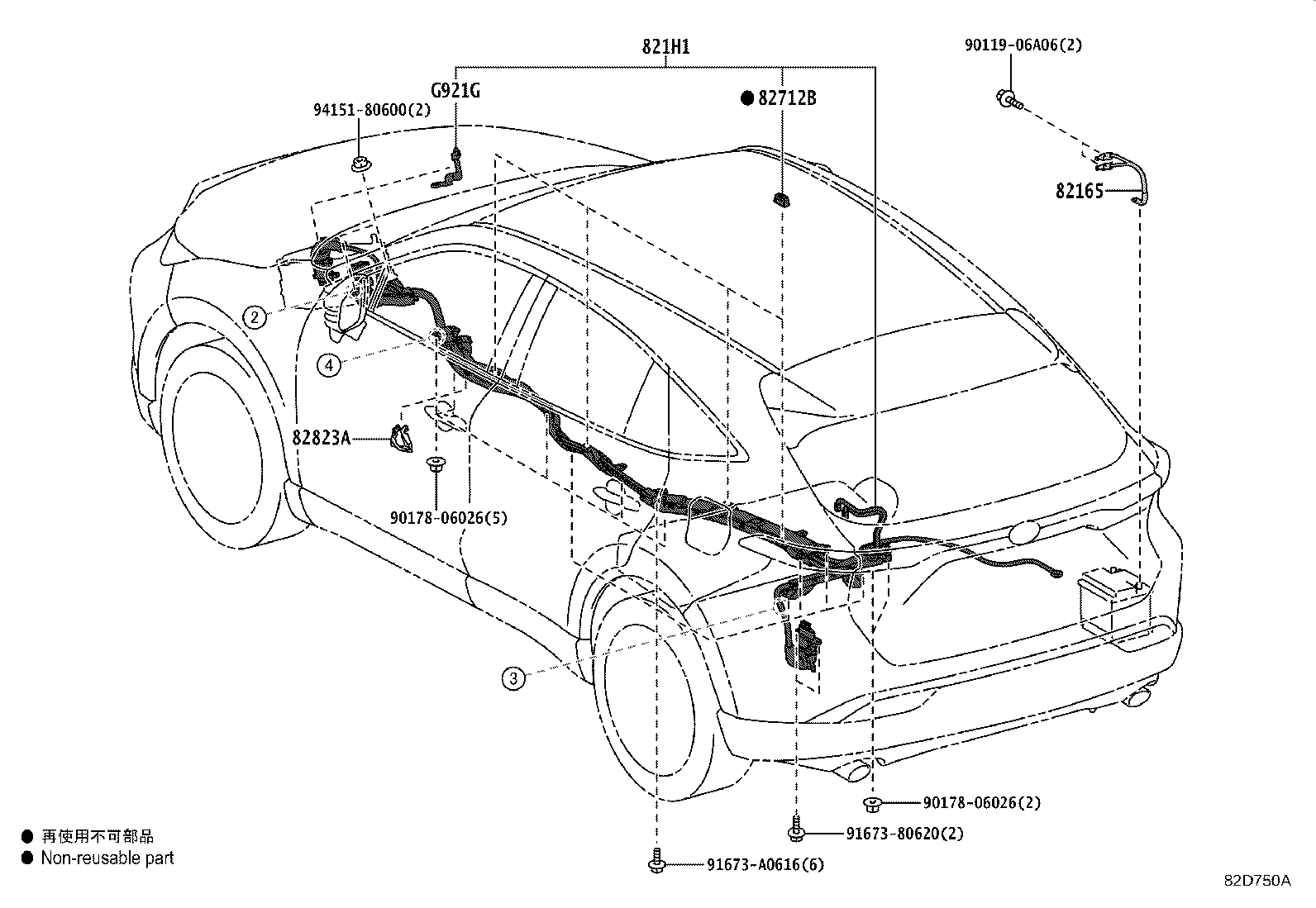

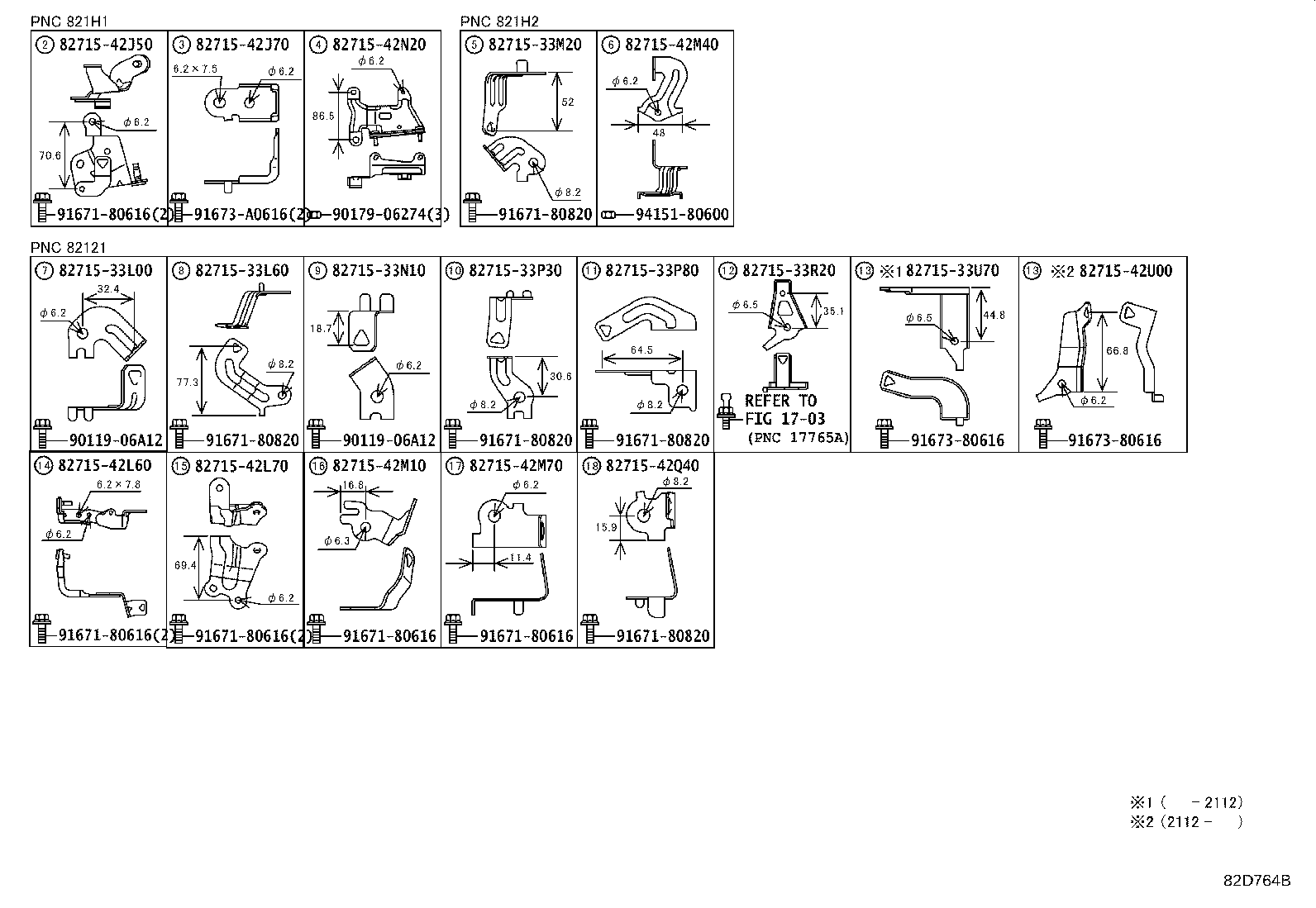

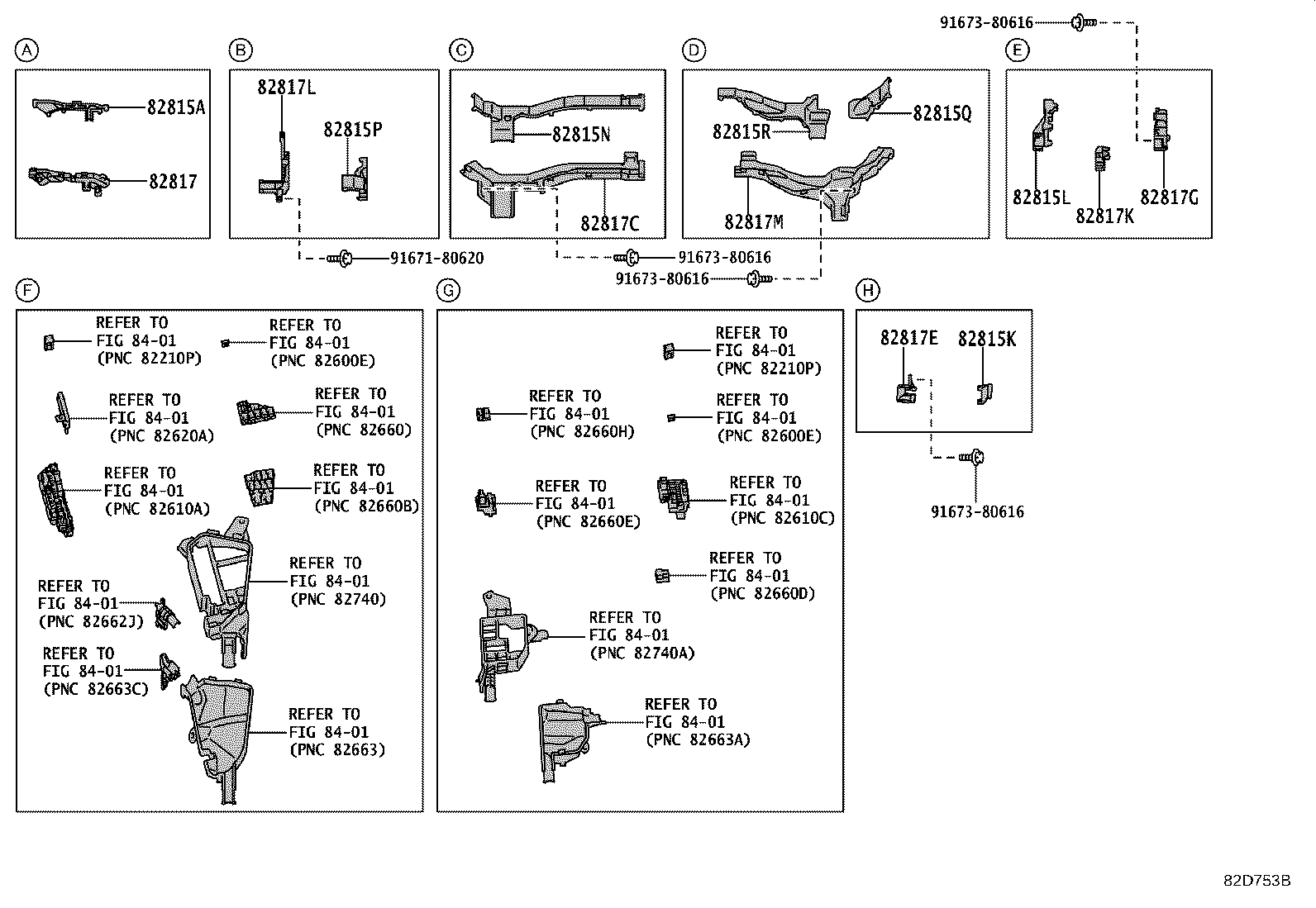

| 821H1 | Wire, Floor Under |
| 821H2 | Wire, HV Air Conditioner |
| 82219A | Wire, Sensor |
| 82225A | Wire, Lamp, NO.2 |
| 82286A | Wire, Earth, NO.2 |
| 82412 | Wire, Fuel Gage |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666L | Holder, Connector NO.9 |
| 82666N | Holder, Connector NO.10 |
| 82666P | Holder, Connector NO.11 |
| 82666Q | Holder, Connector NO.12 |
| 82666S | Holder, Connector NO.13 |
| 82666T | Holder, Connector NO.14 |
| 82666V | Holder, Connector NO.15 |
| 82666W | Holder, Connector NO.16 |
| 82666X | Holder, Connector NO.17 |
| 82712A | Support, Wiring Harness |
| 82712B | Support, Wiring Harness |
| 82815A | Cover, Wiring Harness Protector |
| 82815K | Cover, Wiring Harness Protector, NO.8 |
| 82815L | Cover, Wiring Harness Protector, NO.9 |
| 82815N | Cover, Wiring Harness Protector, NO.11 |
| 82815P | Cover, Wiring Harness Protector, NO.12 |
| 82815Q | Cover, Wiring Harness Protector, NO.13 |
| 82815R | Cover, Wiring Harness Protector, NO.14 |
| 82815S | Cover, Wiring Harness Protector, NO.15 |
| 82815T | Cover, Wiring Harness Protector, NO.16 |
| 82815U | Cover, Wiring Harness Protector, NO.17 |
| 82815V | Cover, Wiring Harness Protector, NO.1 |
| 82815Z | Cover, Wiring Harness Protector, NO.18 |
| 82816B | Cover, Wiring Harness Protector, NO.1 |
| 82816G | Cover, Wiring Harness Protector, NO.5 |
| 82816K | Cover, Wiring Harness Protector, NO.8 |
| 82816L | Cover, Wiring Harness Protector, NO.9 |
| 82816M | Cover, Wiring Harness Protector, NO.10 |
| 82816N | Cover, Wiring Harness Protector, NO.11 |
| 82816P | Cover, Wiring Harness Protector, NO.12 |
| 82816Q | Cover, Wiring Harness Protector, NO.13 |
| 82816R | Cover, Wiring Harness Protector, NO.14 |
| 82816U | Cover, Wiring Harness Protector, NO.17 |
| 82816V | Cover, Wiring Harness Protector, NO.18 |
| 82816W | Cover, Wiring Harness Protector, NO.19 |

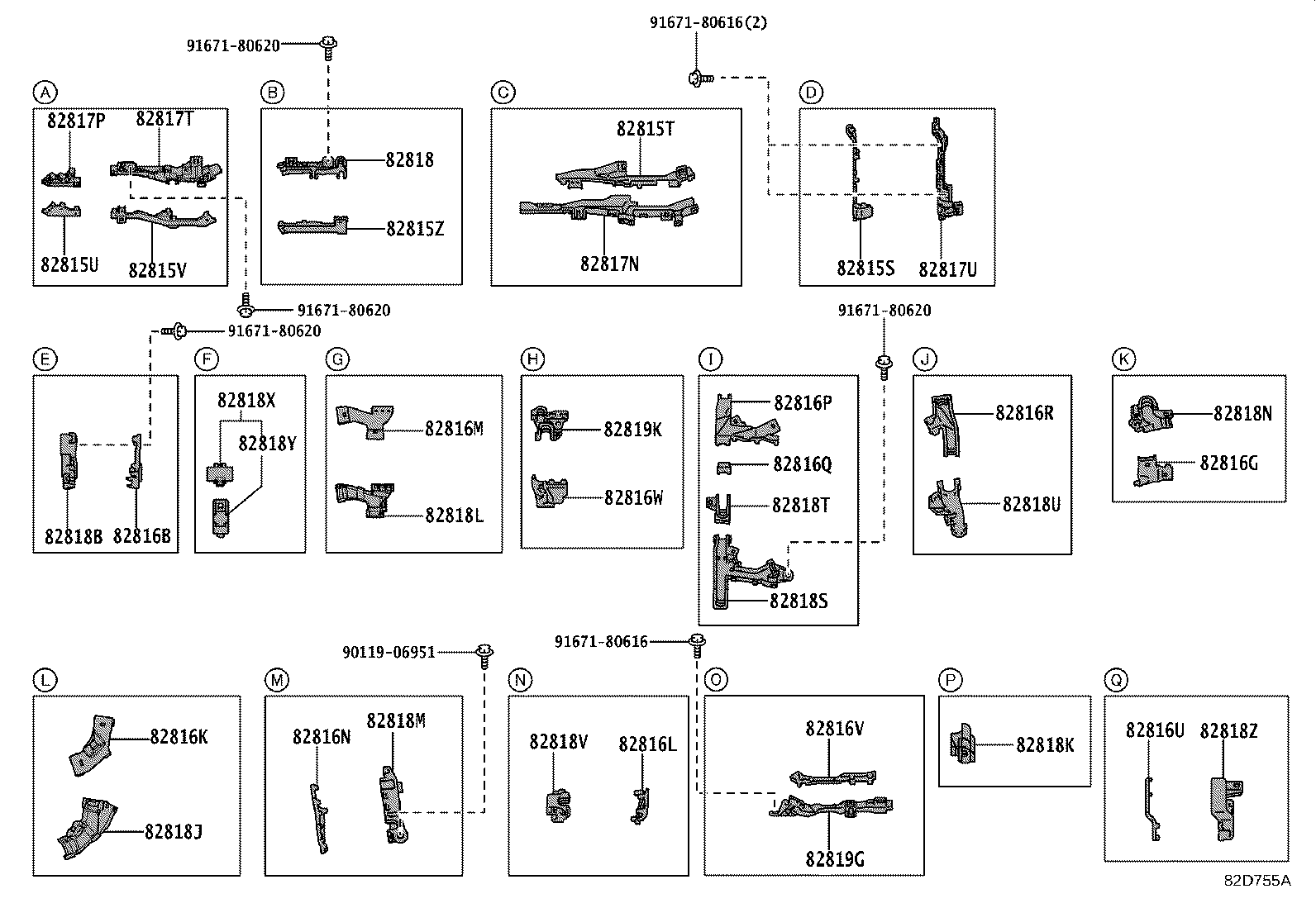

| 82817 | Protector, Wiring Harness, NO.1 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82817L | Protector, Wiring Harness, NO.11 |
| 82817M | Protector, Wiring Harness, NO.12 |
| 82817N | Protector, Wiring Harness, NO.13 |
| 82817P | Protector, Wiring Harness, NO.14 |
| 82817T | Protector, Wiring Harness, NO.15 |
| 82817U | Protector, Wiring Harness, NO.16 |
| 82818 | Protector, Wiring Harness, NO.2 |
| 82818B | Protector, Wiring Harness, NO.3 |
| 82818J | Protector, Wiring Harness, NO.10 |
| 82818K | Protector, Wiring Harness, NO.11 |
| 82818L | Protector, Wiring Harness, NO.12 |
| 82818M | Protector, Wiring Harness, NO.13 |
| 82818N | Protector, Wiring Harness, NO.14 |
| 82818S | Protector, Wiring Harness, NO.15 |
| 82818T | Protector, Wiring Harness, NO.16 |
| 82818U | Protector, Wiring Harness, NO.17 |
| 82818V | Protector, Wiring Harness, NO.18 |
| 82818X | Protector, Wiring Harness, NO.20 |
| 82818Y | Protector, Wiring Harness, NO.21 |
| 82818Z | Protector, Wiring Harness, NO.22 |
| 82819G | Protector, Wiring Harness, NO.23 |
| 82819H | Protector, Wiring Harness, NO.24 |
| 82819J | Protector, Wiring Harness, NO.25 |
| 82819K | Protector, Wiring Harness, NO.26 |
| 82821A | Cover, Connector |
| 82823A | Cap, Terminal, NO.2 |
| 890C0 | Wire Assy, Parking Brake, NO.1 |
| 890C0A | Wire Assy, Parking Brake, NO.2 |
| 89348Y | Clip, Ultrasonic Sensor, Rear |
| 89349C | Clip, Ultrasonic Sensor, Rear NO.2 |
| G921D | Protector, Inverter Connector Cover |
| G921G | Protector, Inverter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
