Toyota Venza
2020-07 → present · chassis AXUH85 · catalogue 524420 · United States
Supported model
Data version 2022-10

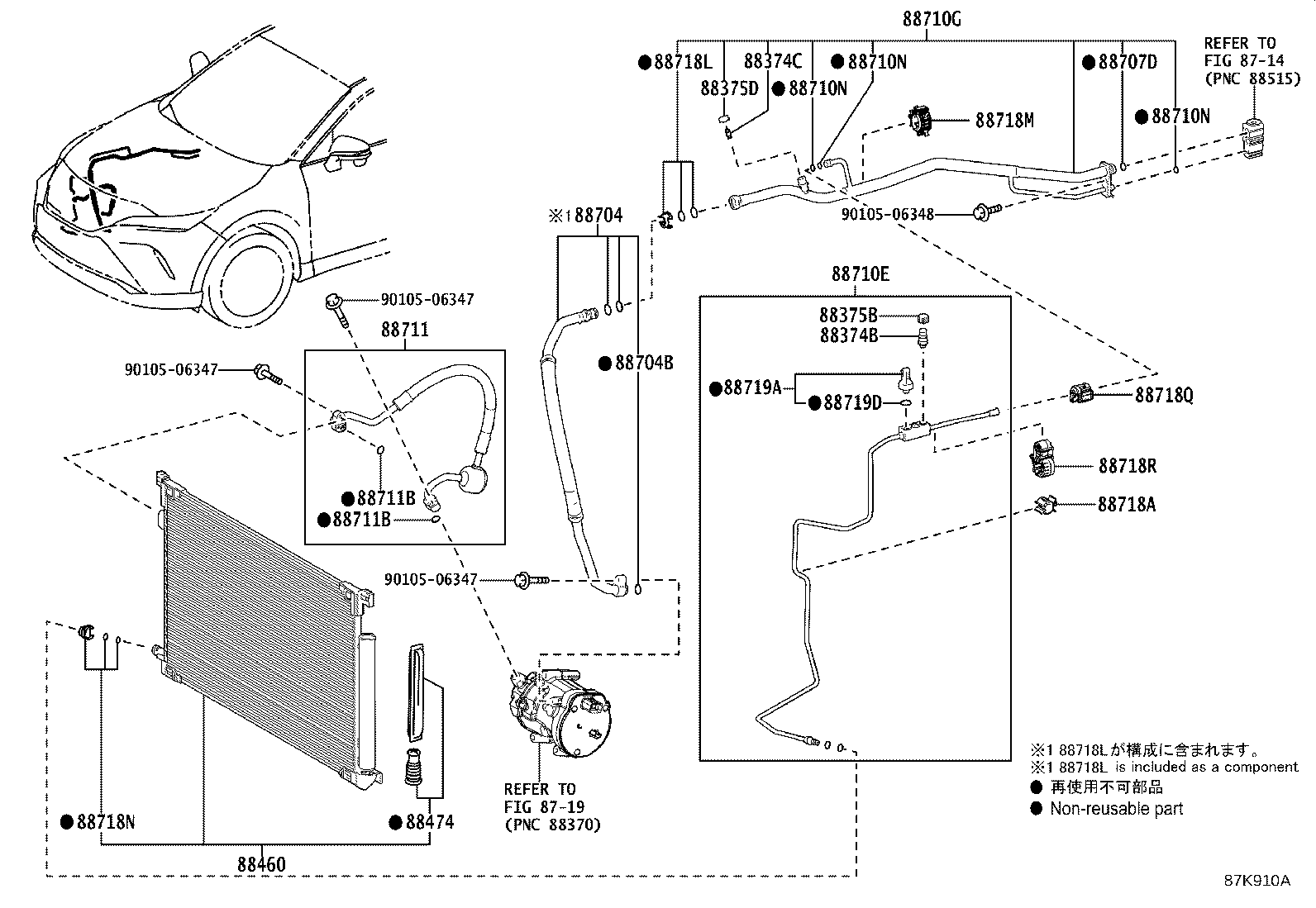

Heating & Air Conditioning - Cooler Piping
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88374C | Valve, Service, NO.2 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88460 | Condenser Assy, Cooler |
| 88474 | Dryer, Cooler |
| 88704 | Hose Sub-assy, Suction |
| 88704B | Ring, O(FOR SUCTION HOSE) |
| 88707 | Pipe Sub-assy, Suction |
| 88707D | Ring, O(FOR SUCTION TUBE) |
| 88710E | Tube & Accessory Assy, Air Conditioner |
| 88710G | Tube & Accessory Assy, Air Conditioner, NO.2 |
| 88710N | Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER) |
| 88710P | Ring, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER) |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88711B | Ring, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) |
| 88718A | Clamp, NO.1(FOR COOLER REFRIGERANT PIPE) |
| 88718L | Clamp, Piping |
| 88718M | Clamp, Piping |
| 88718N | Clamp, Piping |
| 88718Q | Clamp, Piping |
| 88718R | Clamp, Piping |
| 88719A | Sensor, Air Conditioner Pressure |
| 88719D | Ring, O(FOR AIR CONDITIONER PRESSURE SENSOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
