Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

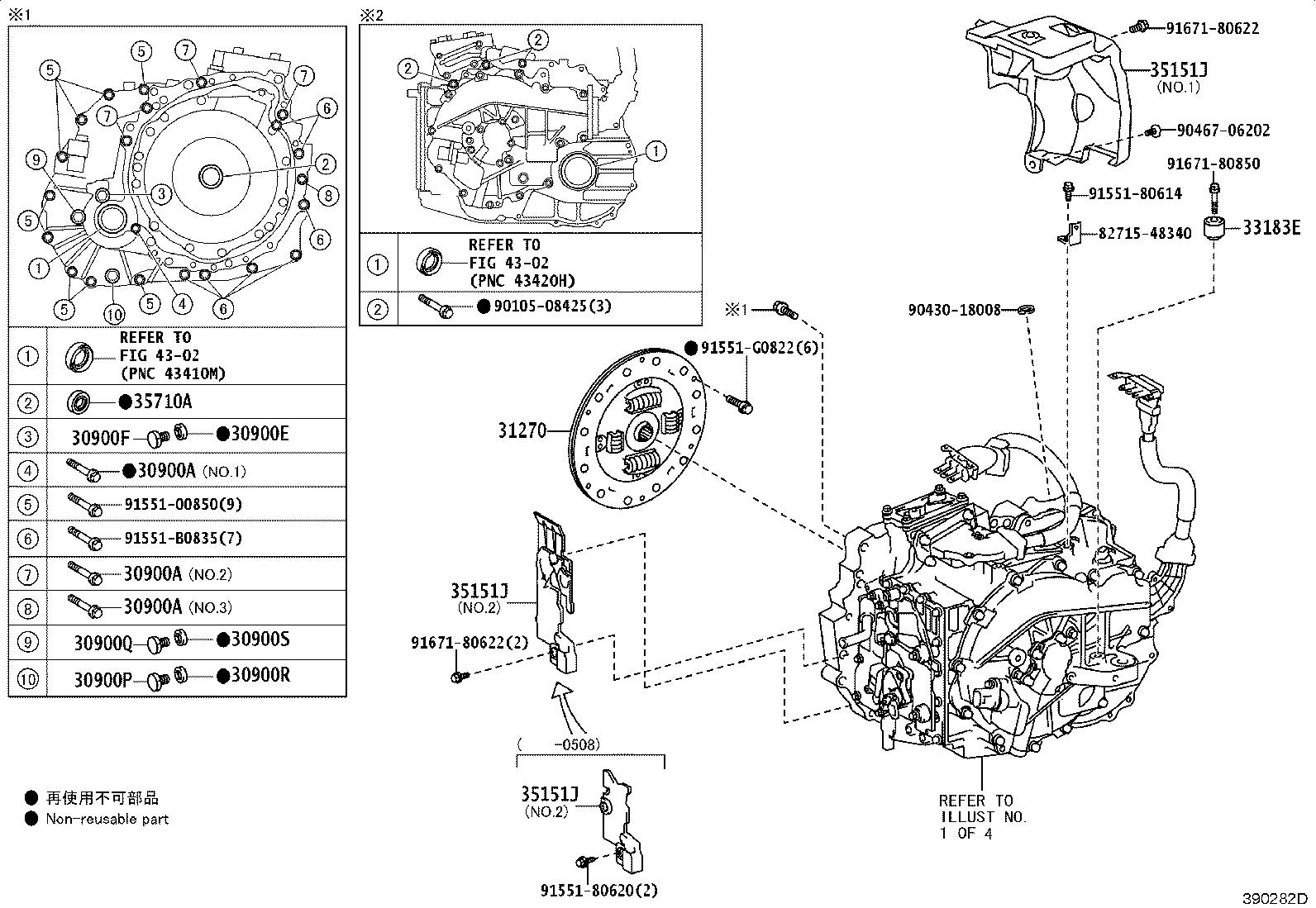

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 30900A — Bolt(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING) | ||||
| 90119-12168 note |
Bolt(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)
2005-03 → —
|
MHU2# | — | |
| 91619-61265 note |
Bolt(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)
2005-03 → —
|
MHU2# | — | |
| 92412-H1055 note |
Bolt(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)
2005-03 → —
|
MHU2# | — | |
| 30900E — Gasket(FOR TRANSAXLE HOUSING & CASE) | ||||
| 90430-18008 |
Gasket(FOR TRANSAXLE HOUSING & CASE)
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 30900F — Plug, W/Head Straight Screw, NO.2(FOR TRANSAXLE HSG & CASE) | ||||
| 90341-18016 |
Plug, W/Head Straight Screw, NO.2(FOR TRANSAXLE HSG & CASE)
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 30900P — Plug, Drain(HEV) | ||||
| 90341-18016 |
Plug, Drain(HEV)
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 30900Q — Plug, Filler(HEV) | ||||
| 90341-18016 |
Plug, Filler(HEV)
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 30900R — Gasket, Drain Plug(HEV) | ||||
| 90430-18008 |
Gasket, Drain Plug(HEV)
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 30900S — Gasket, Filler Plug(HEV) | ||||
| 90430-18008 |
Gasket, Filler Plug(HEV)
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 31270 — Damper Assy, Transmission Input | ||||
| 31270-48010 |
Damper Assy, Transmission Input
2005-03 → —
|
MHU2# | — | |
| 33183E — Damper, Dynamic | ||||
| 33183-48010 |
Damper, Dynamic
2005-03 → —
|
MHU2# | — | |
| 35151J — Cover, Automatic Transmission Case | ||||
| 35151-48010 note |
Cover, Automatic Transmission Case
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 35151-48021 note |
Cover, Automatic Transmission Case
2005-03 → 2005-08
ended
|
MHU2# | — | |
| 35151-48022 note |
Cover, Automatic Transmission Case
2005-08 → 2007-05
ended
|
MHU2# | — | |
| 35710A — Seal, Type T Oil(FOR INPUT SHAFT) | ||||
| 90311-25027 |
Seal, Type T Oil(FOR INPUT SHAFT)
2005-03 → —
|
MHU2# | — | |
| 90311-25027 note |
Seal, Type T Oil(FOR INPUT SHAFT)
2005-03 → —
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
