Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

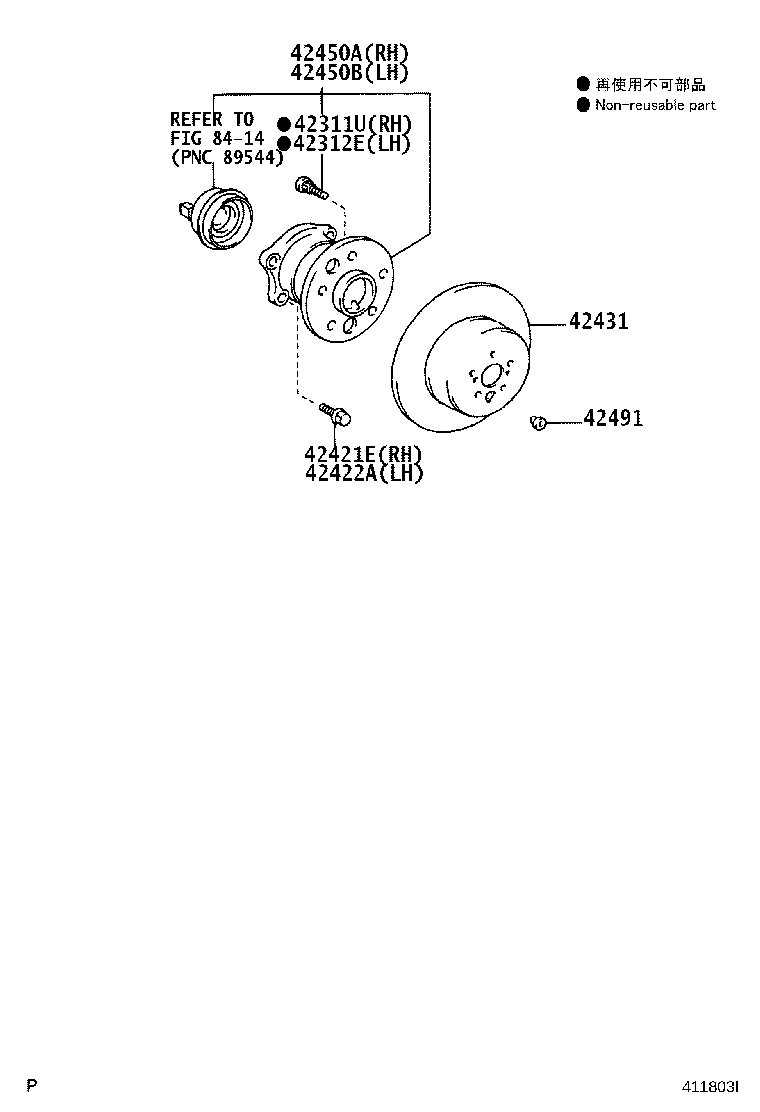

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42311U — Bolt, Hub(FOR REAR AXLE RH) | ||||
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE RH)
2005-03 → —
|
MHU2# | — | |
| 42312E — Bolt, Hub(FOR REAR AXLE LH) | ||||
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE LH)
2005-03 → —
|
MHU2# | — | |
| 42421E — Bolt (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-12332 |
Bolt (FOR REAR AXLE BEARING CASE RH)
2005-03 → —
|
MHU2# | — | |
| 42422A — Bolt (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-12332 |
Bolt (FOR REAR AXLE BEARING CASE LH)
2005-03 → —
|
MHU2# | — | |
| 42431 — Disc, Rear | ||||
| 42431-48041 |
Disc, Rear
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 42450A — Hub & Bearing Assy, Rear Axle, RH | ||||
| 42450-48030 |
Hub & Bearing Assy, Rear Axle, RH
2005-03 → 2007-05
ended
|
MHU23 | — | |
| 42450B — Hub & Bearing Assy, Rear Axle, LH | ||||
| 42460-48030 |
Hub & Bearing Assy, Rear Axle, LH
2005-03 → —
|
MHU23 | — | |
| 42491 — Plug, Shoe Adjusting Hole (FOR PARKING BRAKE) | ||||
| 47491-22020 |
Plug, Shoe Adjusting Hole (FOR PARKING BRAKE)
2005-03 → 2007-05
ended
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
