Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

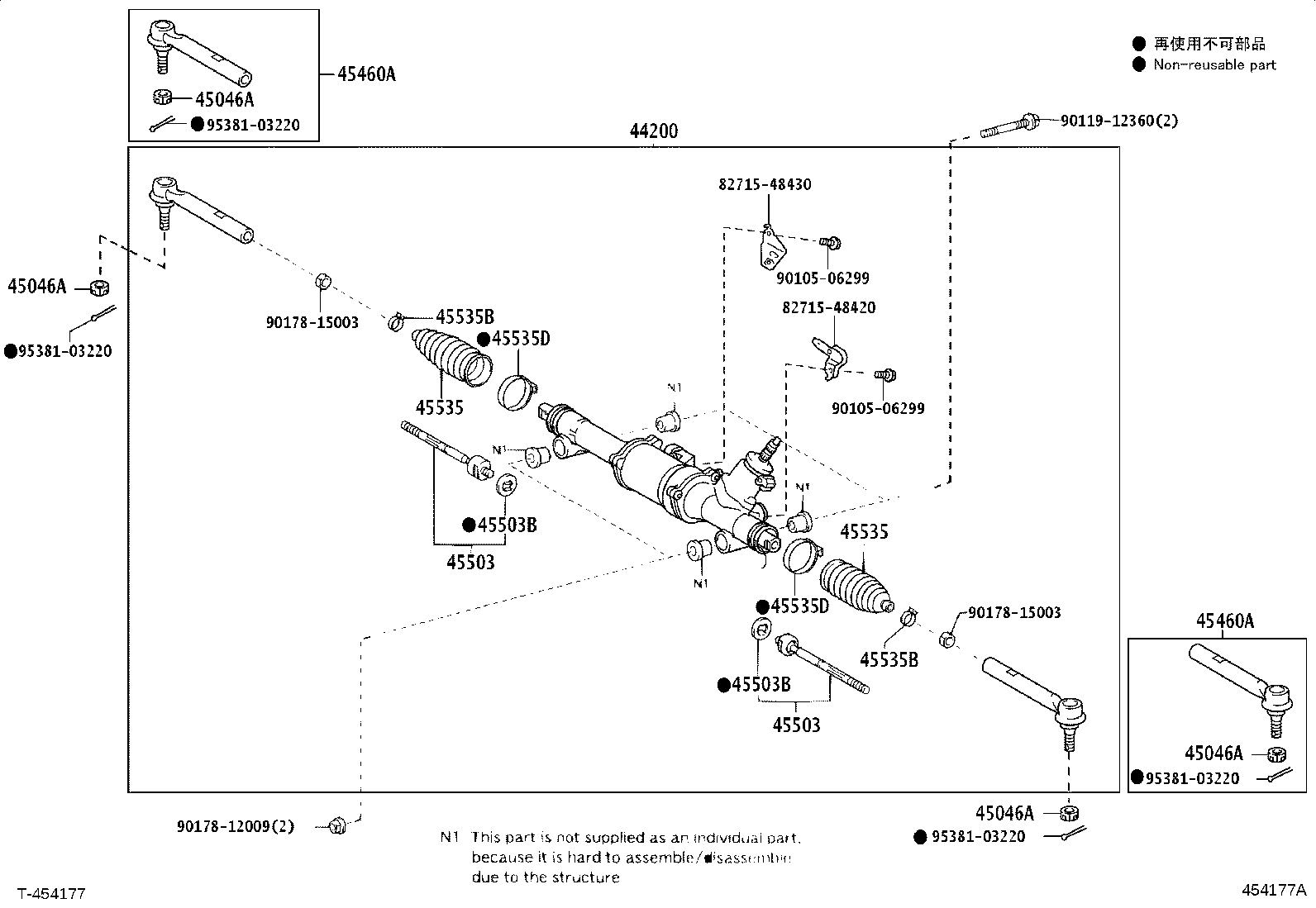

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44200 — Link Assy, Power Steering | ||||
| 44200-48130 |
Link Assy, Power Steering
2005-03 → 2006-01
ended
|
MHU2# | — | |
| 44200-48131 |
Link Assy, Power Steering
2006-02 → 2006-08
ended
|
MHU2# | — | |
| 44200-48132 |
Link Assy, Power Steering
2006-09 → —
|
MHU2# | — | |
| 45046A — Nut, Castle(FOR TIE ROD END) | ||||
| 90171-12028 |
Nut, Castle(FOR TIE ROD END)
2005-03 → —
|
MHU2# | — | |
| 45460A — Rod Assy, Tie | ||||
| 45460-29435 |
Rod Assy, Tie
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 45503 — End Sub-assy, Steering Rack | ||||
| 45503-49135 |
End Sub-assy, Steering Rack
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 45503B — Washer, Claw(FOR STEERING RACK END) | ||||
| 90214-14007 note |
Washer, Claw(FOR STEERING RACK END)
2005-03 → —
|
MHU2# | — | |
| 45535 — Boot, Steering Rack, NO.1 | ||||
| 45535-30030 |
Boot, Steering Rack, NO.1
2005-03 → —
|
MHU2# | — | |
| 45535B — Clip(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
Clip(FOR STEERING RACK BOOT)
2005-03 → —
|
MHU2# | — | |
| 45535D — Clamp(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-55016 |
Clamp(FOR STEERING RACK BOOT NO.1)
2005-03 → —
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
