Toyota Highlander HV

2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States

Supported model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 521346F 52061 — SUPPORT SUB-ASSY, FRONT BUMPER SIDE, RH (1 parts) 52062 — SUPPORT SUB-ASSY, FRONT BUMPER SIDE, LH (1 parts) 52119A — COVER, FRONT BUMPER (1 parts) 52115D — SUPPORT, FRONT BUMPER SIDE, NO.2 RH (1 parts) 52116D — SUPPORT, FRONT BUMPER SIDE, NO.2 LH (1 parts) 52117F — SUPPORT, FRONT BUMPER, UPPER (1 parts) 52117F — SUPPORT, FRONT BUMPER, UPPER (1 parts) 52127C — COVER, FRONT BUMPER HOLE (6 parts) 52128B — COVER, FRONT BUMPER HOLE, LH (6 parts) 52131A — REINFORCEMENT, FRONT BUMPER (2 parts) 52144E — STAY, FRONT BUMPER, CENTER (1 parts) 52161C — PIECE, FRONT BUMPER (1 parts) 52161C — PIECE, FRONT BUMPER (1 parts) 52197E — BRACKET, FRONT BUMPER SEAL (1 parts) 52533 — BRACKET, FRONT BUMPER RETAINER, NO.1 (1 parts) 52535 — RETAINER, FRONT BUMPER SIDE, RH (1 parts) 52611 — ABSORBER, FRONT BUMPER ENERGY (1 parts) 52536 — RETAINER, FRONT BUMPER SIDE, LH (1 parts) 52127D — COVER, FRONT BUMPER HOLE, RH (6 parts) 52128C — COVER, FRONT BUMPER HOLE, LH (6 parts) 52741 — GARNISH, FRONT BUMPER BAR, NO.1 (1 parts) 52119C — CLIP, FRONT BUMPER COVER (1 parts) 52742 — GARNISH, FRONT BUMPER BAR, NO.2 (1 parts) 53112E — GRILLE, RADIATOR, LOWER NO.1 (1 parts) 52114A — BRACKET, FRONT BUMPER EXTENSION MOUNTING (1 parts) 53271C — BRACKET, HEADLAMP MOUNTING (1 parts) 53271C — BRACKET, HEADLAMP MOUNTING (1 parts) 53879H — RETAINER, FRONT FENDER LINER (1 parts) 4774958010 — not listed in this catalogue 9010506228 — not listed in this catalogue 9010506228 — not listed in this catalogue 9011910465 — not listed in this catalogue 9011910465 — not listed in this catalogue 9015960215 — not listed in this catalogue 9015960364 — not listed in this catalogue 9015960431 — not listed in this catalogue 9017905078 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9018906006 — not listed in this catalogue 52129B — COVER, FRONT BUMPER, LOWER (6 parts) 8102 — not listed in this catalogue 5304 — not listed in this catalogue 5304 — not listed in this catalogue 5304 — not listed in this catalogue 5301 — not listed in this catalogue 5301 — not listed in this catalogue 5304 — not listed in this catalogue 8102 — not listed in this catalogue 5102 — not listed in this catalogue 5102 — not listed in this catalogue 9017906127 — not listed in this catalogue

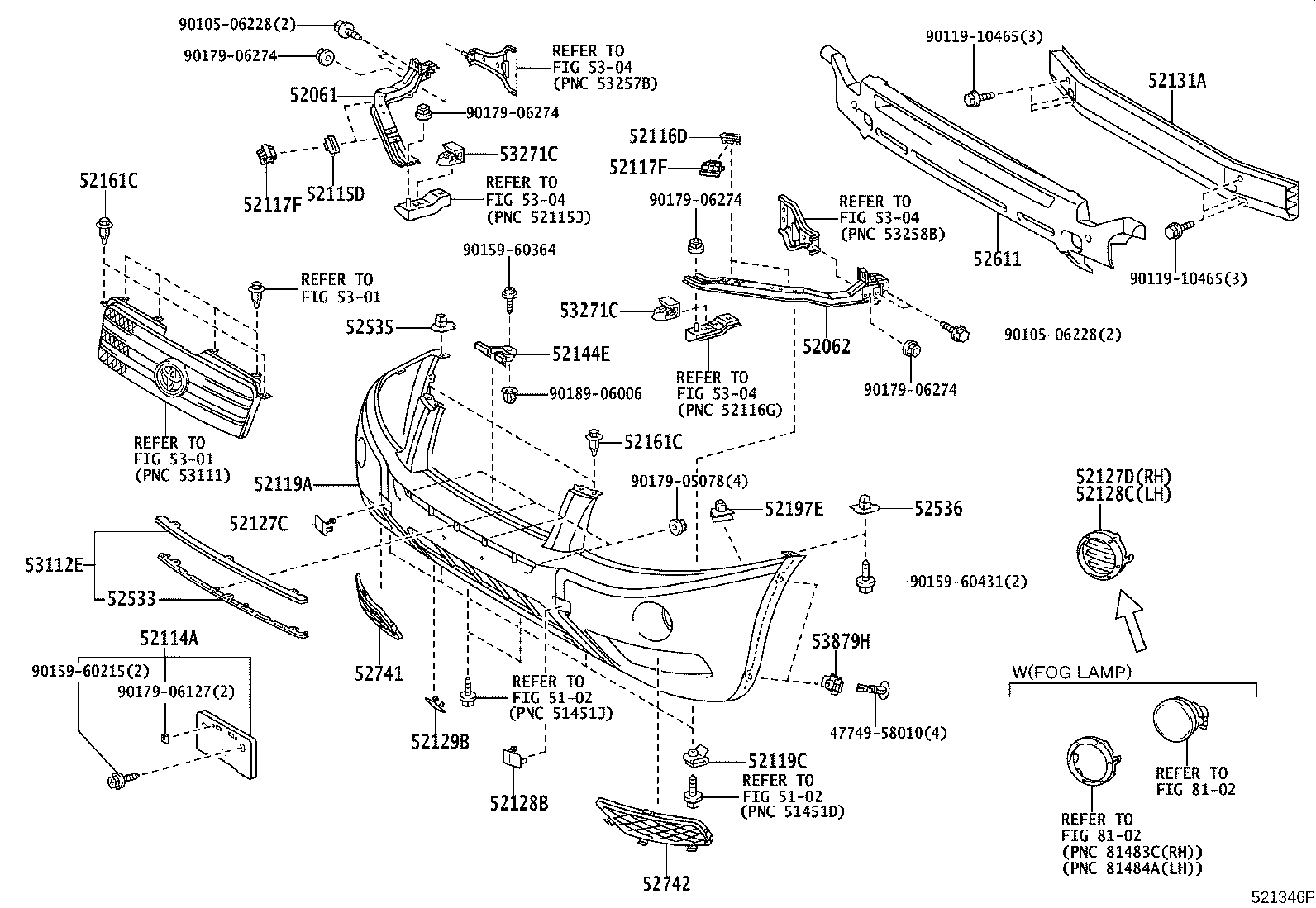

521346F · 29 callouts, 25 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
52 parts on this figure
Part number Description Fitment Price
52061 — Support Sub-assy, Front Bumper Side, RH
52061-48010 Support Sub-assy, Front Bumper Side, RH
2005-03 → 2007-05 ended
MHU2# —
52062 — Support Sub-assy, Front Bumper Side, LH
52062-48010 Support Sub-assy, Front Bumper Side, LH
2005-03 → 2007-05 ended
MHU2# —
52114A — Bracket, Front Bumper Extension Mounting
52114-48130 Bracket, Front Bumper Extension Mounting
2005-03 → —
MHU2# —
52115D — Support, Front Bumper Side, NO.2 RH
52115-48040 Support, Front Bumper Side, NO.2 RH
2005-03 → —
MHU2# —
52116D — Support, Front Bumper Side, NO.2 LH
52115-48040 Support, Front Bumper Side, NO.2 LH
2005-03 → —
MHU2# —
52117F — Support, Front Bumper, Upper
52117-48010 Support, Front Bumper, Upper
2005-03 → —
MHU2# —
52119A — Cover, Front Bumper
52119-48930 note Cover, Front Bumper
2005-03 → 2007-05 ended
MHU2# —
52119C — Clip, Front Bumper Cover
90467-05114 Clip, Front Bumper Cover
2005-03 → 2007-05 ended
MHU2# —
52127C — Cover, Front Bumper Hole
52127-48050-A0 note Cover, Front Bumper Hole
2005-03 → 2007-05 ended
MHU2# —
52127-48050-B0 note Cover, Front Bumper Hole
2005-03 → 2007-05 ended
MHU2# —
52127-48050-C0 note Cover, Front Bumper Hole
2005-03 → 2007-05 ended
MHU2# —
52127-48050-E0 note Cover, Front Bumper Hole
2005-03 → 2007-05 ended
MHU2# —
52127-48050-G0 note Cover, Front Bumper Hole
2005-03 → 2007-05 ended
MHU2# —
52127-48050-J0 note Cover, Front Bumper Hole
2005-03 → 2007-05 ended
MHU2# —
52127D — Cover, Front Bumper Hole, RH
81481-48020-A0 note Cover, Front Bumper Hole, RH
2005-03 → 2007-05 ended
MHU2# —
81481-48020-B0 note Cover, Front Bumper Hole, RH
2005-03 → 2007-05 ended
MHU2# —
81481-48020-C0 note Cover, Front Bumper Hole, RH
2005-03 → 2007-05 ended
MHU2# —
81481-48020-E0 note Cover, Front Bumper Hole, RH
2005-03 → 2007-05 ended
MHU2# —
81481-48020-G0 note Cover, Front Bumper Hole, RH
2005-03 → 2007-05 ended
MHU2# —
81481-48020-J0 note Cover, Front Bumper Hole, RH
2005-03 → 2007-05 ended
MHU2# —
52128B — Cover, Front Bumper Hole, LH
52128-48030-A0 note Cover, Front Bumper Hole, LH
2005-03 → 2007-05 ended
MHU2# —
52128-48030-B0 note Cover, Front Bumper Hole, LH
2005-03 → 2007-05 ended
MHU2# —
52128-48030-C0 note Cover, Front Bumper Hole, LH
2005-03 → 2007-05 ended
MHU2# —
52128-48030-E0 note Cover, Front Bumper Hole, LH
2005-03 → 2007-05 ended
MHU2# —
52128-48030-G0 note Cover, Front Bumper Hole, LH
2005-03 → 2007-05 ended
MHU2# —
52128-48030-J0 note Cover, Front Bumper Hole, LH
2005-03 → 2007-05 ended
MHU2# —
52128C — Cover, Front Bumper Hole, LH
81482-48020-A0 note Cover, Front Bumper Hole, LH
2005-03 → 2007-05 ended
MHU2# —
81482-48020-B0 note Cover, Front Bumper Hole, LH
2005-03 → 2007-05 ended
MHU2# —
81482-48020-C0 note Cover, Front Bumper Hole, LH
2005-03 → 2007-05 ended
MHU2# —
81482-48020-E0 note Cover, Front Bumper Hole, LH
2005-03 → 2007-05 ended
MHU2# —
81482-48020-G0 note Cover, Front Bumper Hole, LH
2005-03 → 2007-05 ended
MHU2# —
81482-48020-J0 note Cover, Front Bumper Hole, LH
2005-03 → 2007-05 ended
MHU2# —
52129B — Cover, Front Bumper, Lower
52129-48010-A0 note Cover, Front Bumper, Lower
2005-03 → 2007-05 ended
MHU2# —
52129-48010-B0 note Cover, Front Bumper, Lower
2005-03 → 2007-05 ended
MHU2# —
52129-48010-C0 note Cover, Front Bumper, Lower
2005-03 → 2007-05 ended
MHU2# —
52129-48010-E0 note Cover, Front Bumper, Lower
2005-03 → 2007-05 ended
MHU2# —
52129-48010-G0 note Cover, Front Bumper, Lower
2005-03 → 2007-05 ended
MHU2# —
52129-48010-J0 note Cover, Front Bumper, Lower
2005-03 → 2007-05 ended
MHU2# —
52131A — Reinforcement, Front Bumper
52131-48061 note Reinforcement, Front Bumper
2005-03 → 2007-05 ended
MHU28 —
52131-48061 Reinforcement, Front Bumper
2005-03 → 2007-05 ended
MHU2# —
52144E — Stay, Front Bumper, Center
52144-48010 Stay, Front Bumper, Center
2005-03 → —
MHU2# —
52161C — Piece, Front Bumper
52161-16010 Piece, Front Bumper
2005-03 → —
MHU2# —
52197E — Bracket, Front Bumper Seal
52197-52010 Bracket, Front Bumper Seal
2005-03 → —
MHU2# —
52533 — Bracket, Front Bumper Retainer, NO.1
52533-48010 Bracket, Front Bumper Retainer, NO.1
2005-03 → —
MHU2# —
52535 — Retainer, Front Bumper Side, RH
52535-48020 Retainer, Front Bumper Side, RH
2005-03 → —
MHU2# —
52536 — Retainer, Front Bumper Side, LH
52535-48020 Retainer, Front Bumper Side, LH
2005-03 → —
MHU2# —
52611 — Absorber, Front Bumper Energy
52611-48070 Absorber, Front Bumper Energy
2005-03 → —
MHU2# —
52741 — Garnish, Front Bumper Bar, NO.1
52741-48020 note Garnish, Front Bumper Bar, NO.1
2005-03 → —
MHU2# —
52742 — Garnish, Front Bumper Bar, NO.2
52742-48020 note Garnish, Front Bumper Bar, NO.2
2005-03 → —
MHU2# —
53112E — Grille, Radiator, Lower NO.1
53112-48020 note Grille, Radiator, Lower NO.1
2005-03 → —
MHU2# —
53271C — Bracket, Headlamp Mounting
53271-12060 Bracket, Headlamp Mounting
2005-03 → —
MHU2# —
53879H — Retainer, Front Fender Liner
53879-58010 Retainer, Front Fender Liner
2005-03 → —
MHU2# —
