Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

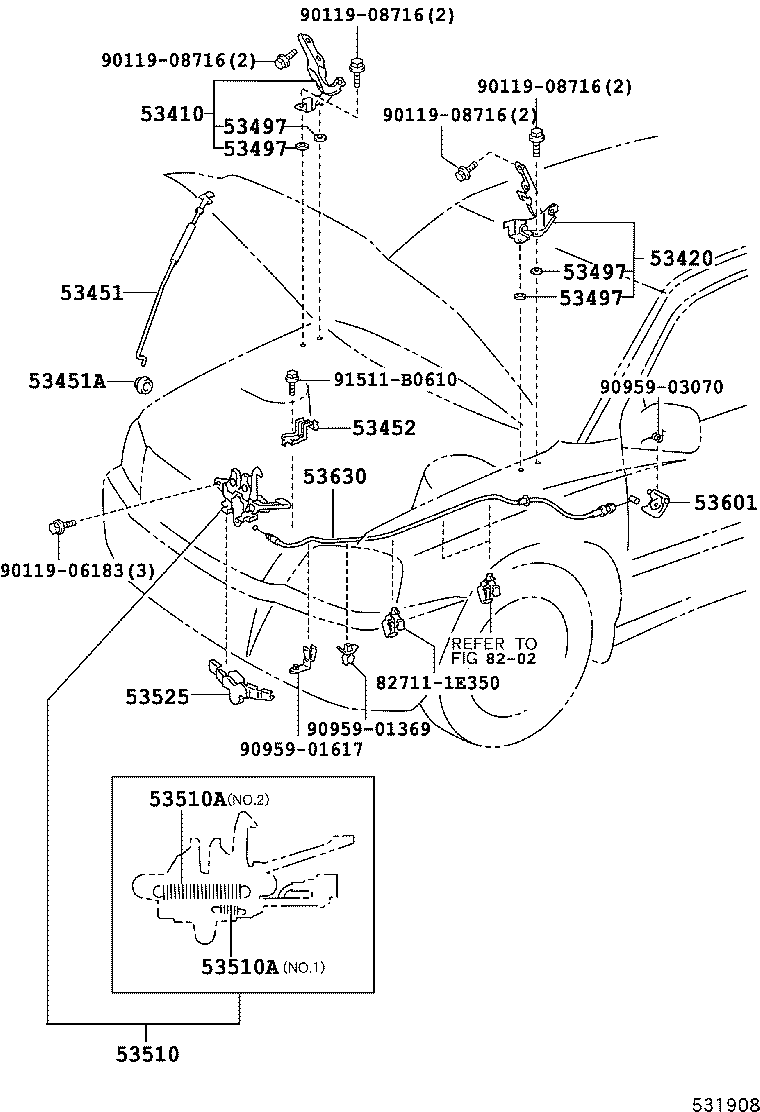

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53410 — Hinge Assy, Hood, RH | ||||
| 53410-48020 |
Hinge Assy, Hood, RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 53420 — Hinge Assy, Hood, LH | ||||
| 53420-48020 |
Hinge Assy, Hood, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 53451 — Rod, Hood Support | ||||
| 53440-48040 |
Rod, Hood Support
2005-03 → —
|
MHU2# | — | |
| 53451A — Grommet(FOR HOOD SUPPORT ROD) | ||||
| 90480-15027 |
Grommet(FOR HOOD SUPPORT ROD)
2005-03 → —
|
MHU2# | — | |
| 53452 — Holder, Hood Stay | ||||
| 53452-48020 |
Holder, Hood Stay
2005-03 → —
|
MHU2# | — | |
| 53497 — Pad, Hood Hinge, NO.1 | ||||
| 53497-50020 note |
Pad, Hood Hinge, NO.1
2005-03 → —
|
MHU2# | — | |
| 53510 — Lock Assy, Hood | ||||
| 53510-48051 |
Lock Assy, Hood
2005-03 → —
|
MHU2# | — | |
| 53510-48110 note |
Lock Assy, Hood
2005-03 → —
|
MHU2# | — | |
| 53510A — Spring, Tension(FOR HOOD LOCK) | ||||
| 90506-09055 note |
Spring, Tension(FOR HOOD LOCK)
2005-03 → —
|
MHU2# | — | |
| 90506-20065 note |
Spring, Tension(FOR HOOD LOCK)
2005-03 → —
|
MHU2# | — | |
| 90506-20076 note |
Spring, Tension(FOR HOOD LOCK)
2005-03 → —
|
MHU2# | — | |
| 53525 — Protector, Hood Lock Release Lever | ||||
| 53525-48010 |
Protector, Hood Lock Release Lever
2005-03 → —
|
MHU2# | — | |
| 53601 — Lever Sub-assy, Hood Lock Control | ||||
| 53611-12040-A0 note |
Lever Sub-assy, Hood Lock Control
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 53611-12040-B7 note |
Lever Sub-assy, Hood Lock Control
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 53630 — Cable Assy, Hood Lock Control | ||||
| 53630-48020 |
Cable Assy, Hood Lock Control
2005-03 → —
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
