Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

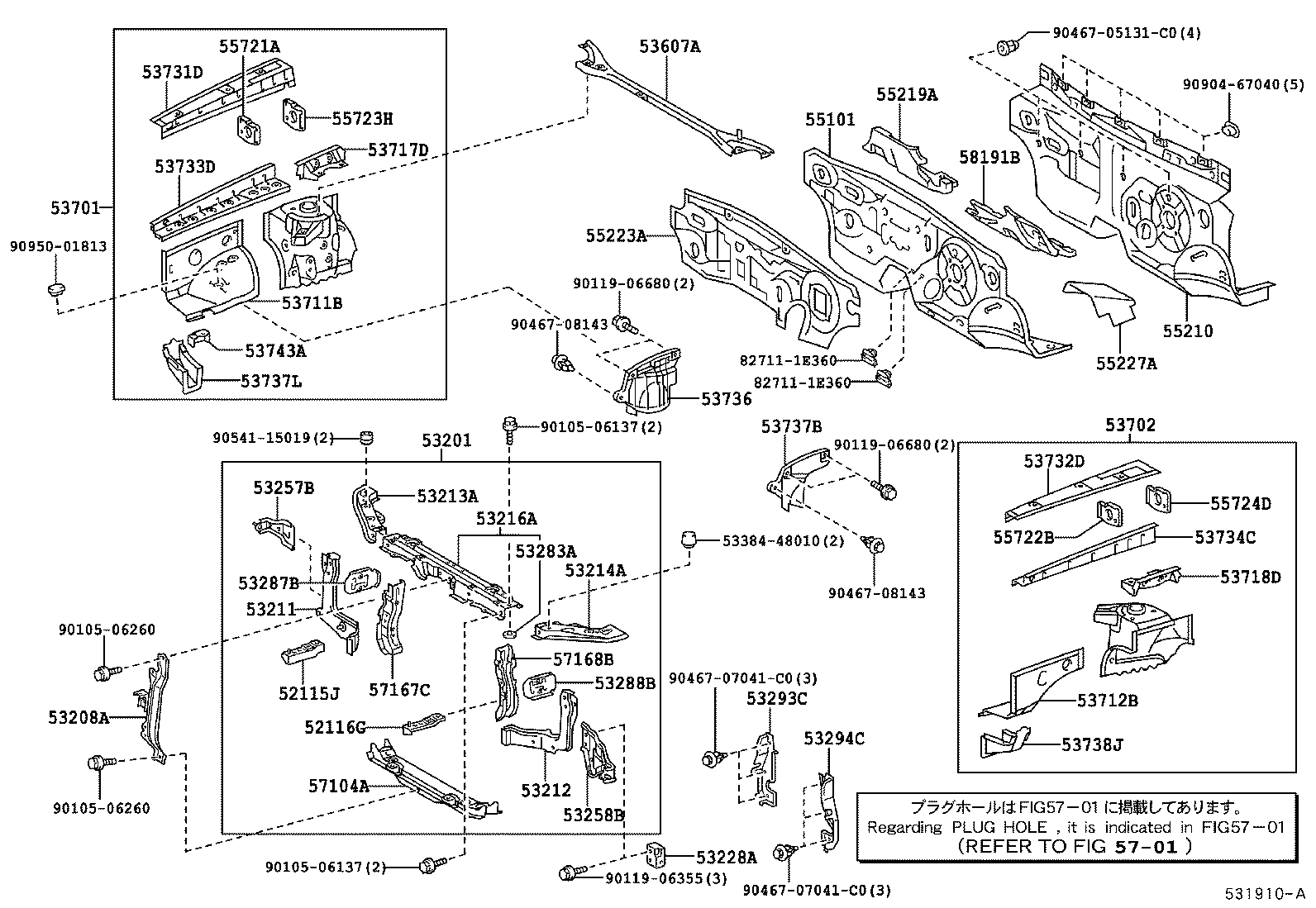

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52115J — Support, Front Bumper Side, RH | ||||
| 52115-48030 |
Support, Front Bumper Side, RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 52116G — Support, Front Bumper Side, LH | ||||
| 52116-48050 |
Support, Front Bumper Side, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 53201 — Support Sub-assy, Radiator | ||||
| 53201-48070 |
Support Sub-assy, Radiator
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 53208A — Support Sub-assy, Hood Lock | ||||
| 53208-48040 |
Support Sub-assy, Hood Lock
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 53211 — Support, Radiator, RH | ||||
| 53211-48050 |
Support, Radiator, RH
2005-03 → —
|
MHU2# | — | |
| 53212 — Support, Radiator, LH | ||||
| 53212-48030 |
Support, Radiator, LH
2005-03 → —
|
MHU2# | — | |
| 53213A — Support, Radiator, Upper RH | ||||
| 53213-48050 |
Support, Radiator, Upper RH
2005-03 → —
|
MHU2# | — | |
| 53214A — Support, Radiator, Upper LH | ||||
| 53214-48050 |
Support, Radiator, Upper LH
2005-03 → —
|
MHU2# | — | |
| 53216A — Support, Radiator, Upper | ||||
| 53216-48030 |
Support, Radiator, Upper
2005-03 → —
|
MHU2# | — | |
| 53228A — Bracket, Radiator Mounting, Lower NO.1 | ||||
| 53228-48020 |
Bracket, Radiator Mounting, Lower NO.1
2005-03 → —
|
MHU2# | — | |
| 53257B — Bracket, Radiator Support TO Front Fender | ||||
| 53257-48030 |
Bracket, Radiator Support TO Front Fender
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 53258B — Bracket, Radiator Support TO Front Fender, LH | ||||
| 53258-48030 |
Bracket, Radiator Support TO Front Fender, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 53283A — Reinforcement, Radiator Support, Lower | ||||
| 53283-30010 |
Reinforcement, Radiator Support, Lower
2005-03 → —
|
MHU2# | — | |
| 53287B — Extension, Radiator Support, RH | ||||
| 53287-48020 |
Extension, Radiator Support, RH
2005-03 → —
|
MHU2# | — | |
| 53288B — Extension, Radiator Support, LH | ||||
| 53287-48020 |
Extension, Radiator Support, LH
2005-03 → —
|
MHU2# | — | |
| 53293C — Deflector, Radiator Side, RH | ||||
| 53293-48050 |
Deflector, Radiator Side, RH
2005-03 → —
|
MHU2# | — | |
| 53294C — Deflector, Radiator Side, LH | ||||
| 53294-48050 |
Deflector, Radiator Side, LH
2005-03 → —
|
MHU2# | — | |
| 53607A — Brace Sub-assy, Front Suspension, Upper Center | ||||
| 53681-48030 |
Brace Sub-assy, Front Suspension, Upper Center
2005-03 → —
|
MHU2# | — | |
| 53701 — Apron Sub-assy, Front Fender, RH | ||||
| 53701-48051 |
Apron Sub-assy, Front Fender, RH
2005-03 → —
|
MHU2# | — | |
| 53702 — Apron Sub-assy, Front Fender, LH | ||||
| 53702-48020 |
Apron Sub-assy, Front Fender, LH
2005-03 → —
|
MHU2# | — | |
| 53711B — Apron, Front Fender, Front RH | ||||
| 53711-48021 |
Apron, Front Fender, Front RH
2005-03 → —
|
MHU2# | — | |
| 53712B — Apron, Front Fender, Front LH | ||||
| 53712-48020 |
Apron, Front Fender, Front LH
2005-03 → —
|
MHU2# | — | |
| 53717D — Gusset, Fender Apron, RH | ||||
| 53717-48020 |
Gusset, Fender Apron, RH
2005-03 → —
|
MHU2# | — | |
| 53718D — Gusset, Fender Apron, LH | ||||
| 53718-48020 |
Gusset, Fender Apron, LH
2005-03 → —
|
MHU2# | — | |
| 53731D — Member, Front Apron TO Cowl Side, Upper RH | ||||
| 53731-48020 |
Member, Front Apron TO Cowl Side, Upper RH
2005-03 → —
|
MHU2# | — | |
| 53732D — Member, Front Apron TO Cowl Side, Upper LH | ||||
| 53732-48020 |
Member, Front Apron TO Cowl Side, Upper LH
2005-03 → —
|
MHU2# | — | |
| 53733D — Member, Front Apron TO Cowl Side, Lower Front RH | ||||
| 53733-48010 |
Member, Front Apron TO Cowl Side, Lower Front RH
2005-03 → —
|
MHU2# | — | |
| 53734C — Member, Front Apron TO Cowl Side, Lower Front LH | ||||
| 53734-48010 |
Member, Front Apron TO Cowl Side, Lower Front LH
2005-03 → —
|
MHU2# | — | |
| 53736 — Seal, Front Fender Apron, RH | ||||
| 53736-33030 |
Seal, Front Fender Apron, RH
2005-03 → 2006-02
ended
|
MHU2# | — | |
| 53736-33040 |
Seal, Front Fender Apron, RH
2006-03 → —
|
MHU2# | — | |
| 53737B — Seal, Front Fender Apron, LH | ||||
| 53737-48030 |
Seal, Front Fender Apron, LH
2005-03 → —
|
MHU2# | — | |
| 53737L — Gusset, Front Fender Apron Wind Guide, RH | ||||
| 53737-48040 |
Gusset, Front Fender Apron Wind Guide, RH
2005-03 → —
|
MHU2# | — | |
| 53738J — Gusset, Front Fender Apron Wind Guide, LH | ||||
| 53738-48020 |
Gusset, Front Fender Apron Wind Guide, LH
2005-03 → —
|
MHU2# | — | |
| 53743A — Reinforcement, Front Fender Apron, Front RH | ||||
| 53743-48010 |
Reinforcement, Front Fender Apron, Front RH
2005-03 → —
|
MHU2# | — | |
| 55101 — Panel Sub-assy, Dash | ||||
| 55101-48130 |
Panel Sub-assy, Dash
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 55210 — Insulator Assy, Dash Panel | ||||
| 55210-48080 |
Insulator Assy, Dash Panel
2005-03 → —
|
MHU2# | — | |
| 55219A — Packing, Dash Panel Hole Cover | ||||
| 55219-48010 |
Packing, Dash Panel Hole Cover
2005-03 → —
|
MHU2# | — | |
| 55223A — Insulator, Dash Panel, Outer | ||||
| 55223-48120 |
Insulator, Dash Panel, Outer
2005-03 → —
|
MHU2# | — | |
| 55227A — Sheet, Dash Panel Insulator, NO.6 | ||||
| 55227-48010 |
Sheet, Dash Panel Insulator, NO.6
2005-03 → —
|
MHU2# | — | |
| 55721A — Brace, Cowl Top TO Cowl, Inner NO.1 | ||||
| 55721-48010 |
Brace, Cowl Top TO Cowl, Inner NO.1
2005-03 → —
|
MHU2# | — | |
| 55722B — Brace, Cowl Top TO Cowl, Inner NO.2 | ||||
| 55722-48030 |
Brace, Cowl Top TO Cowl, Inner NO.2
2005-03 → —
|
MHU2# | — | |
| 55723H — Reinforcement, Cowl Top Side, RH | ||||
| 55723-48020 |
Reinforcement, Cowl Top Side, RH
2005-03 → —
|
MHU2# | — | |
| 55724D — Reinforcement, Cowl Top Side, LH | ||||
| 55724-48020 |
Reinforcement, Cowl Top Side, LH
2005-03 → —
|
MHU2# | — | |
| 57104A — Member Sub-assy, Front Cross | ||||
| 57104-48030 |
Member Sub-assy, Front Cross
2005-03 → —
|
MHU2# | — | |
| 57167C — Gusset, Front Crossmember Side, RH | ||||
| 57167-48030 |
Gusset, Front Crossmember Side, RH
2005-03 → —
|
MHU2# | — | |
| 57168B — Gusset, Front Crossmember Side, LH | ||||
| 57168-48060 |
Gusset, Front Crossmember Side, LH
2005-03 → —
|
MHU2# | — | |
| 58191B — Footrest, Front Floor | ||||
| 58191-48060 |
Footrest, Front Floor
2005-03 → —
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
