Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

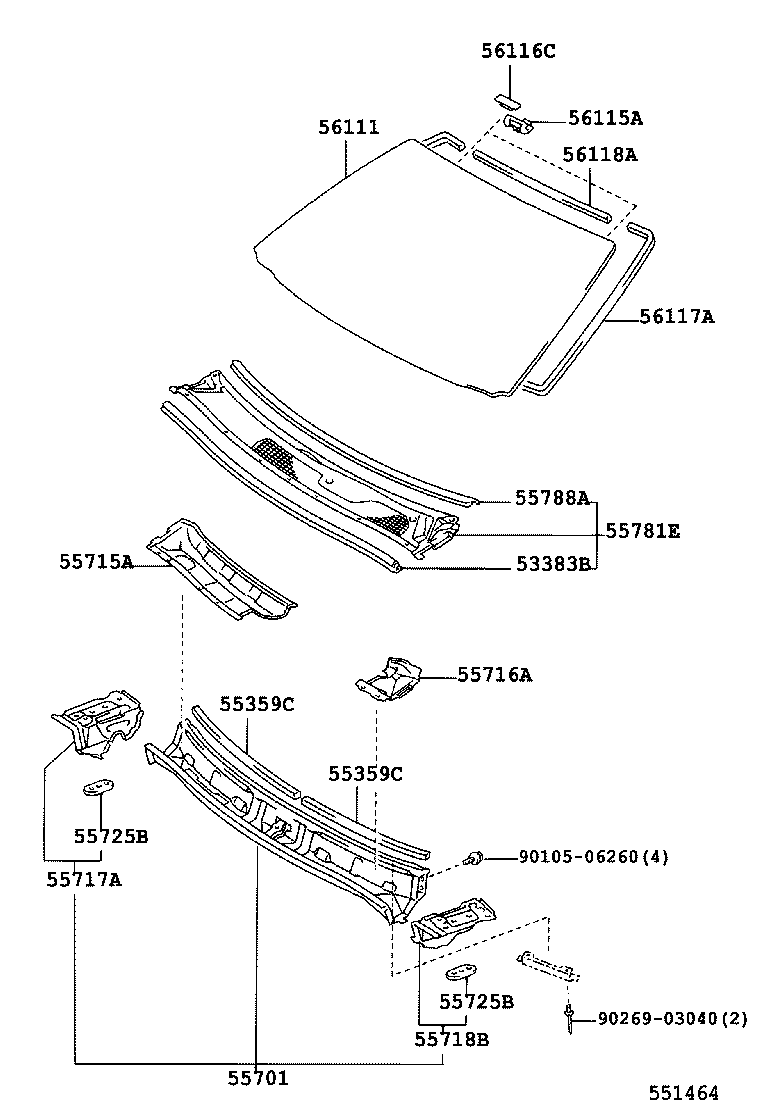

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53383B — Seal, Hood TO Cowl Top | ||||
| 53383-48020 |
Seal, Hood TO Cowl Top
2005-03 → —
|
MHU2# | — | |
| 55359C — Coshion, Instrument Panel, NO.5 | ||||
| 55359-48010 |
Coshion, Instrument Panel, NO.5
2005-03 → —
|
MHU2# | — | |
| 55701 — Panel Sub-assy, Cowl | ||||
| 55700-48040 |
Panel Sub-assy, Cowl
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 55715A — Brace, Cowl Top TO Apron, RH | ||||
| 55715-48030 |
Brace, Cowl Top TO Apron, RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 55716A — Brace, Cowl Top TO Apron, LH | ||||
| 55716-48030 |
Brace, Cowl Top TO Apron, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 55717A — Panel, Cowl Top Side, Inner RH | ||||
| 55717-48900 |
Panel, Cowl Top Side, Inner RH
2005-03 → —
|
MHU2# | — | |
| 55718B — Panel, Cowl Top Side, Inner LH | ||||
| 55718-48900 |
Panel, Cowl Top Side, Inner LH
2005-03 → —
|
MHU2# | — | |
| 55725B — Reinforcement, Hood Hinge Mounting | ||||
| 55725-22010 |
Reinforcement, Hood Hinge Mounting
2005-03 → —
|
MHU2# | — | |
| 55781E — Louver Sub-assy, Cowl Top Ventilator | ||||
| 55781-48050 |
Louver Sub-assy, Cowl Top Ventilator
2005-03 → —
|
MHU2# | — | |
| 55781-48070 note |
Louver Sub-assy, Cowl Top Ventilator
2005-03 → —
|
MHU28 | — | |
| 55788A — Protector, Cowl Top Ventilator Louver | ||||
| 55788-48030 |
Protector, Cowl Top Ventilator Louver
2005-03 → —
|
MHU2# | — | |
| 56111 — Glass, Windshield | ||||
| 56111-48290 note |
Glass, Windshield
2005-03 → —
|
MHU2# | — | |
| 56111-48300 note |
Glass, Windshield
2005-03 → —
|
MHU2# | — | |
| 56111-48310 note |
Glass, Windshield
2005-03 → —
|
MHU2# | — | |
| 56111-48320 note |
Glass, Windshield
2005-03 → —
|
MHU2# | — | |
| 56115A — Stopper, Windshield Glass, NO.1 | ||||
| 56115-22010 |
Stopper, Windshield Glass, NO.1
2005-03 → —
|
MHU2# | — | |
| 56116C — Stopper, Windshield Glass, NO.2 | ||||
| 56116-22050 |
Stopper, Windshield Glass, NO.2
2005-03 → —
|
MHU2# | — | |
| 56117A — Dam, Window Glass Adhesive | ||||
| 56117-48040 note |
Dam, Window Glass Adhesive
2005-03 → —
|
MHU2# | — | |
| 56117-48040 note |
Dam, Window Glass Adhesive
2005-03 → —
|
MHU2# | — | |
| 56117-48040 note |
Dam, Window Glass Adhesive
2005-03 → —
|
MHU2# | — | |
| 56117-48040 note |
Dam, Window Glass Adhesive
2005-03 → —
|
MHU2# | — | |
| 56118A — Dam, Window Glass Adhesive, NO.2 | ||||
| 56118-48040 note |
Dam, Window Glass Adhesive, NO.2
2005-03 → —
|
MHU2# | — | |
| 56118-48040 note |
Dam, Window Glass Adhesive, NO.2
2005-03 → —
|
MHU2# | — | |
| 56118-48040 note |
Dam, Window Glass Adhesive, NO.2
2005-03 → —
|
MHU2# | — | |
| 56118-48040 note |
Dam, Window Glass Adhesive, NO.2
2005-03 → —
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
