Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

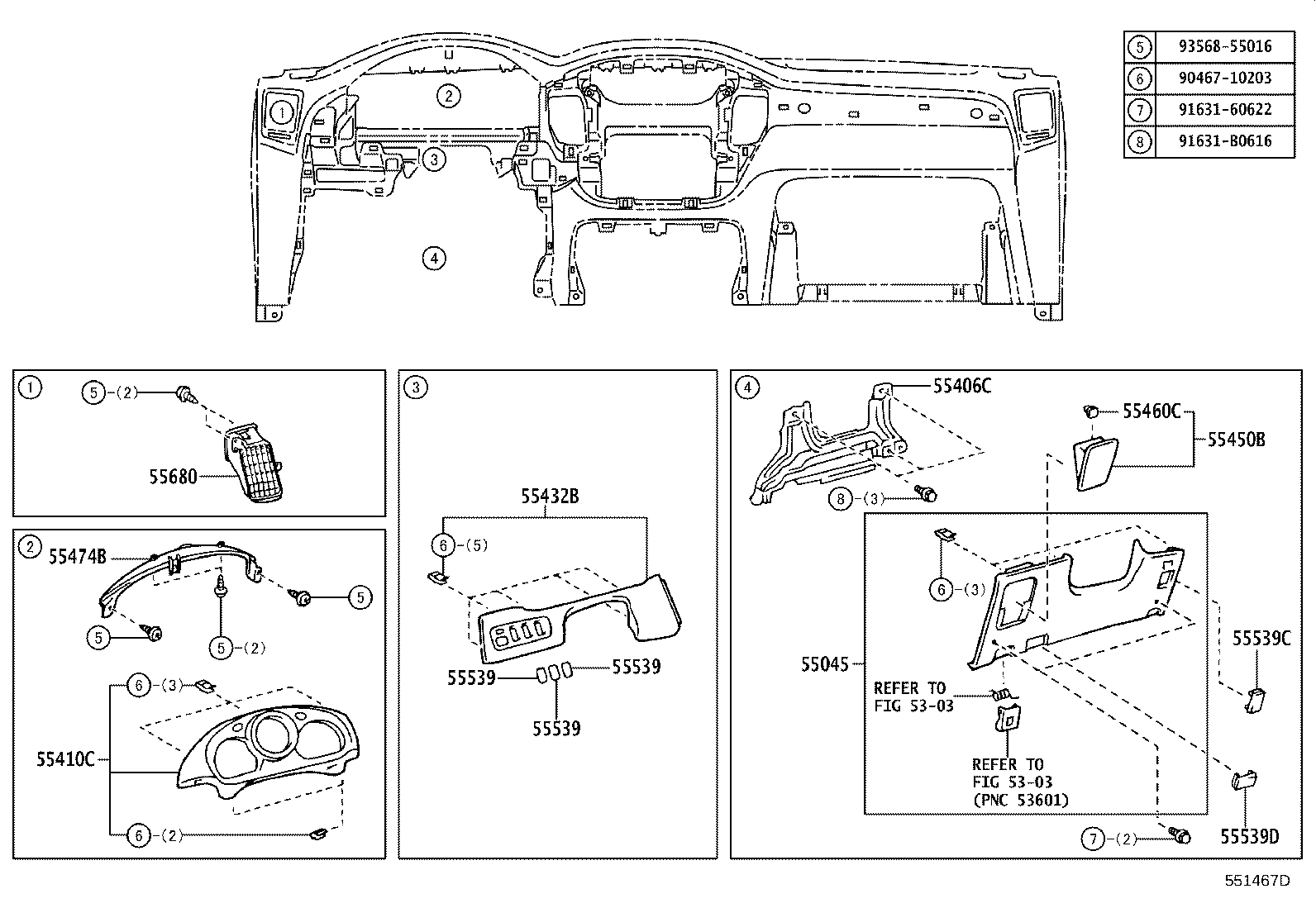

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55045 — Panel Sub-assy, Instrument Panel Finish, Lower | ||||
| 55045-48110-A0 note |
Panel Sub-assy, Instrument Panel Finish, Lower
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 55045-48110-B0 note |
Panel Sub-assy, Instrument Panel Finish, Lower
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 55406C — Insert Sub-assy, Instrument Panel, Lower LH | ||||
| 55406-48030 |
Insert Sub-assy, Instrument Panel, Lower LH
2005-03 → —
|
MHU2# | — | |
| 55410C — Panel Assy, Instrument Cluster Finish | ||||
| 55410-48060-B0 note |
Panel Assy, Instrument Cluster Finish
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 55432B — Panel, Instrument Panel Finish, Lower | ||||
| 55480-48050-A0 note |
Panel, Instrument Panel Finish, Lower
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 55480-48050-B1 note |
Panel, Instrument Panel Finish, Lower
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 55450B — Box Assy, Coin | ||||
| 55450-48100-A0 note |
Box Assy, Coin
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 55450-48100-B0 note |
Box Assy, Coin
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 55460C — Lock Assy, Instrument Panel Box | ||||
| 55460-33010-A2 note |
Lock Assy, Instrument Panel Box
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 55460-33010-B6 note |
Lock Assy, Instrument Panel Box
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 55474B — Garnish, Instrument Cluster Finish Panel | ||||
| 55474-48030 |
Garnish, Instrument Cluster Finish Panel
2005-03 → —
|
MHU2# | — | |
| 55539 — Cover, Spare Switch Hole | ||||
| 55539-48010 |
Cover, Spare Switch Hole
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 55539-48010 note |
Cover, Spare Switch Hole
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 55539-48010 note |
Cover, Spare Switch Hole
2005-03 → 2007-05
ended
|
MHU2# 07S | — | |
| 55539-48010 note |
Cover, Spare Switch Hole
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 55539C — Cover, Spare Switch Hole | ||||
| 55539-48020 |
Cover, Spare Switch Hole
2005-03 → —
|
MHU2# | — | |
| 55539D — Cover, Spare Switch Hole | ||||
| 55539-20080-A0 note |
Cover, Spare Switch Hole
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 55539-20080-B7 note |
Cover, Spare Switch Hole
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 55680 — Register Assy, Instrument Panel, Lower NO.1 | ||||
| 55680-48030-B0 note |
Register Assy, Instrument Panel, Lower NO.1
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 55680-48030-E0 note |
Register Assy, Instrument Panel, Lower NO.1
2005-03 → 2007-05
ended
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
