Toyota Highlander HV

2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States

Supported model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

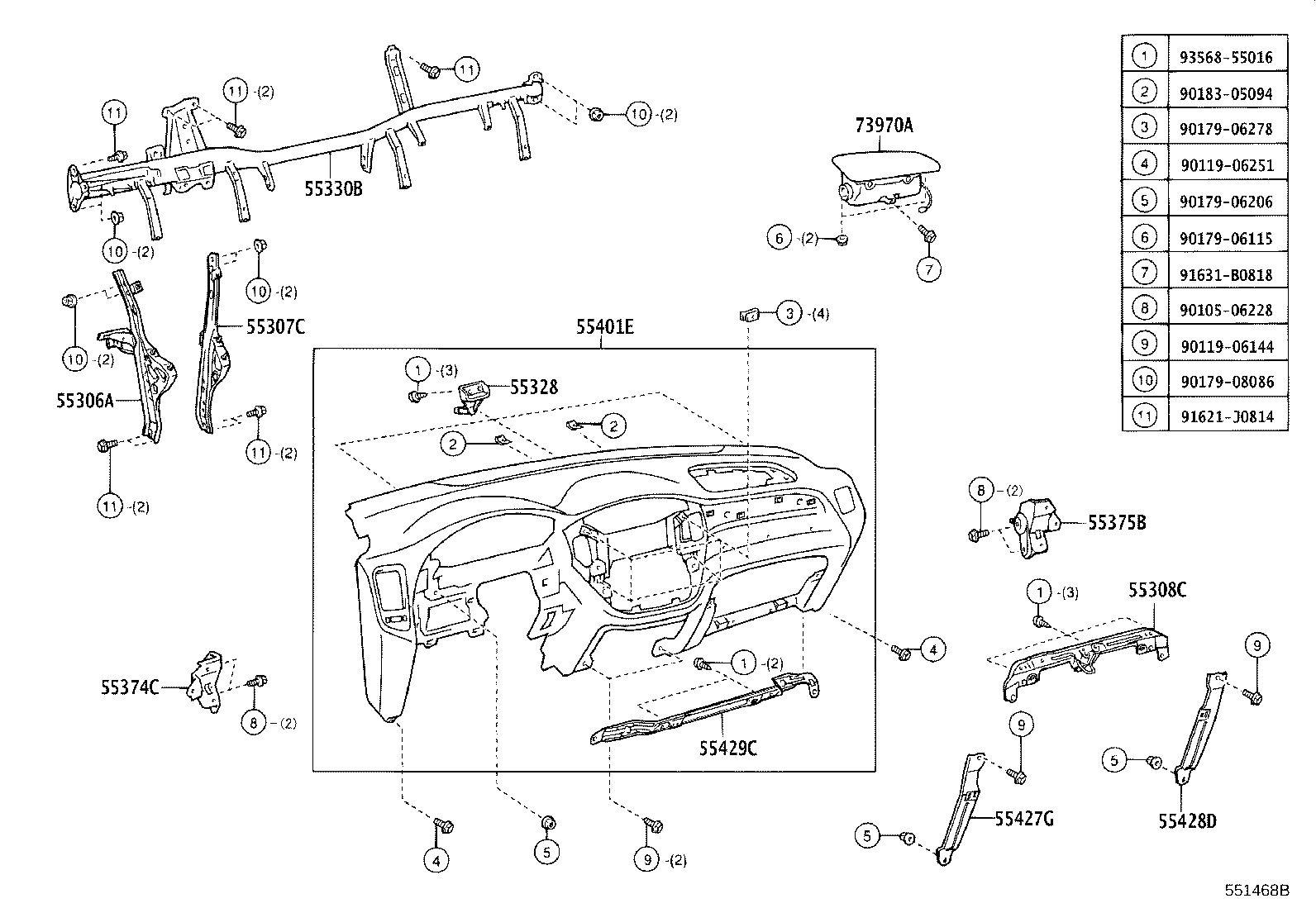

Exploded illustration 551468B 55307C — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 (1 parts) 55401E — PAD SUB-ASSY, INSTRUMENT PANEL SAFETY (2 parts) 73970A — AIRBAG ASSY, INSTRUMENT PANEL PASSENGER (2 parts) 9017906278 — not listed in this catalogue 9011906251 — not listed in this catalogue 9017906206 — not listed in this catalogue 9017906115 — not listed in this catalogue 9018305094 — not listed in this catalogue 9010506228 — not listed in this catalogue 9011906144 — not listed in this catalogue 9017908086 — not listed in this catalogue 9356855016 — not listed in this catalogue 91631B0818 — not listed in this catalogue 91621J0814 — not listed in this catalogue 55308C — BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER (1 parts) 55375B — BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 (1 parts) 55428D — RETAINER, INSTRUMENT FINISH PANEL, LOWER NO.2 (1 parts) 55427G — BRACKET, AIRBAG PASSENGER MOUNTING, NO.1 (1 parts) 55429C — RETAINER, INSTRUMENT PANEL FINISH PANEL, LOWER NO.3 (1 parts) 55328 — PIN, INSTRUMENT PANEL, NO.1 (1 parts) 55306A — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 (1 parts) 55374C — BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 (1 parts) 55330B — REINFORCEMENT ASSY, INSTRUMENT PANEL (1 parts)
551468B · 12 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
14 parts on this figure
Part number Description Fitment Price
55306A — Brace Sub-assy, Instrument Panel, NO.1
55306-48080 Brace Sub-assy, Instrument Panel, NO.1
2005-03 → —
MHU2# —
55307C — Brace Sub-assy, Instrument Panel, NO.2
55307-48080 Brace Sub-assy, Instrument Panel, NO.2
2005-03 → —
MHU2# —
55308C — Bracket Sub-assy, Instrument Panel, Center
55308-48040 Bracket Sub-assy, Instrument Panel, Center
2005-03 → —
MHU2# —
55328 — Pin, Instrument Panel, NO.1
55346-48010 Pin, Instrument Panel, NO.1
2005-03 → —
MHU2# —
55330B — Reinforcement Assy, Instrument Panel
55330-48151 Reinforcement Assy, Instrument Panel
2005-03 → 2007-05 ended
MHU2# —
55374C — Bracket, Instrument Panel Lower Mounting, NO.1
55374-48030 Bracket, Instrument Panel Lower Mounting, NO.1
2005-03 → —
MHU2# —
55375B — Bracket, Instrument Panel Lower Mounting, NO.2
55375-48030 Bracket, Instrument Panel Lower Mounting, NO.2
2005-03 → —
MHU2# —
55401E — Pad Sub-assy, Instrument Panel Safety
55301-48060-B0 note Pad Sub-assy, Instrument Panel Safety
2005-03 → 2007-05 ended
MHU2# —
55301-48060-E0 note Pad Sub-assy, Instrument Panel Safety
2005-03 → 2007-05 ended
MHU2# —
55427G — Bracket, Airbag Passenger Mounting, NO.1
55427-48030 Bracket, Airbag Passenger Mounting, NO.1
2005-03 → —
MHU2# —
55428D — Retainer, Instrument Finish Panel, Lower NO.2
55428-48020 Retainer, Instrument Finish Panel, Lower NO.2
2005-03 → —
MHU2# —
55429C — Retainer, Instrument Panel Finish Panel, Lower NO.3
55429-48010 Retainer, Instrument Panel Finish Panel, Lower NO.3
2005-03 → —
MHU2# —
73970A — Airbag Assy, Instrument Panel Passenger
73970-48060-B0 note Airbag Assy, Instrument Panel Passenger
2005-03 → 2007-05 ended
MHU2# —
73970-48060-E0 note Airbag Assy, Instrument Panel Passenger
2005-03 → 2007-05 ended
MHU2# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
