Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

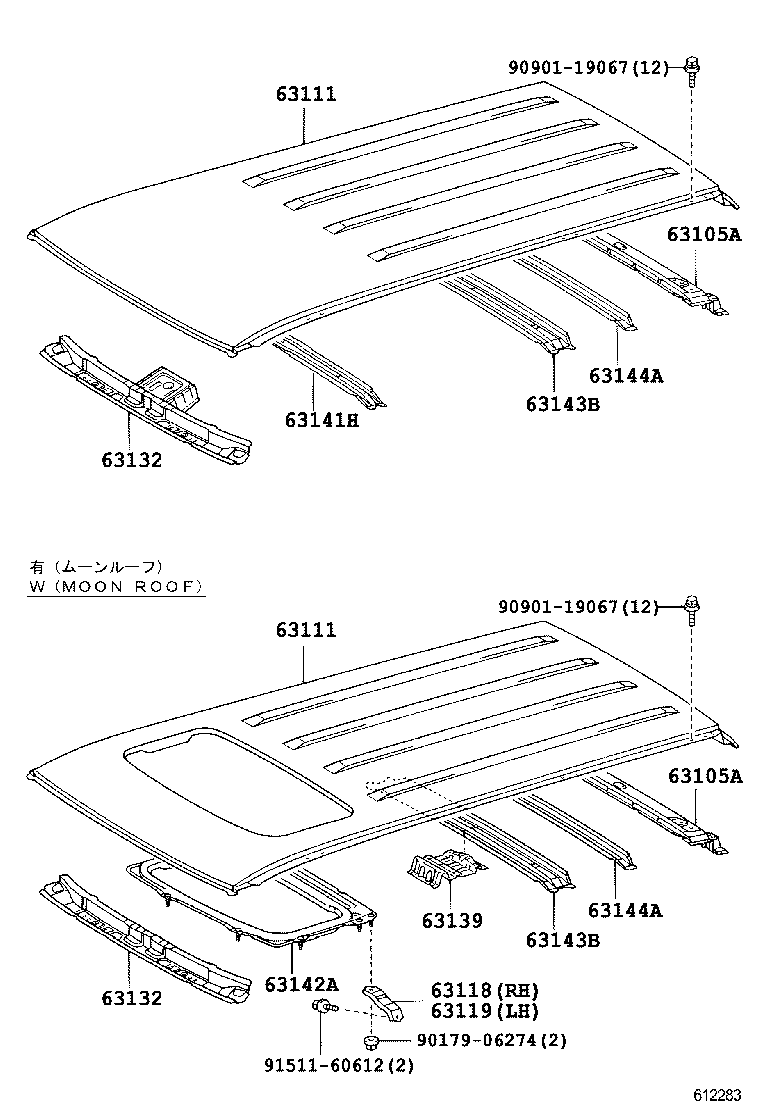

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63105A — Frame Sub-assy, Back Door Opening | ||||
| 63105-48040 |
Frame Sub-assy, Back Door Opening
2005-03 → —
|
MHU2# | — | |
| 63111 — Panel, Roof | ||||
| 63111-48090 |
Panel, Roof
2005-03 → —
|
MHU2# | — | |
| 63111-48100 note |
Panel, Roof
2005-03 → —
|
MHU2# | — | |
| 63118 — Support, Roof Panel, RH | ||||
| 63118-48080 note |
Support, Roof Panel, RH
2005-03 → —
|
MHU2# | — | |
| 63119 — Support, Roof Panel, LH | ||||
| 63118-48080 note |
Support, Roof Panel, LH
2005-03 → —
|
MHU2# | — | |
| 63132 — Panel, Windshield Header, Inner | ||||
| 63102-48902 |
Panel, Windshield Header, Inner
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 63102-48903 note |
Panel, Windshield Header, Inner
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 63139 — Bracket, Dome Lamp, NO.3 | ||||
| 63139-48010 note |
Bracket, Dome Lamp, NO.3
2005-03 → —
|
MHU2# | — | |
| 63141H — Reinforcement, Roof Panel, Center | ||||
| 63141-48030 |
Reinforcement, Roof Panel, Center
2005-03 → —
|
MHU2# | — | |
| 63142A — Reinforcement, Roof Panel, NO.2 | ||||
| 63142-48030 note |
Reinforcement, Roof Panel, NO.2
2005-03 → —
|
MHU2# | — | |
| 63143B — Reinforcement, Roof Panel, NO.3 | ||||
| 63143-48031 |
Reinforcement, Roof Panel, NO.3
2005-03 → —
|
MHU2# | — | |
| 63144A — Reinforcement, Roof Panel, NO.4 | ||||
| 63144-48021 |
Reinforcement, Roof Panel, NO.4
2005-03 → —
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
