Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

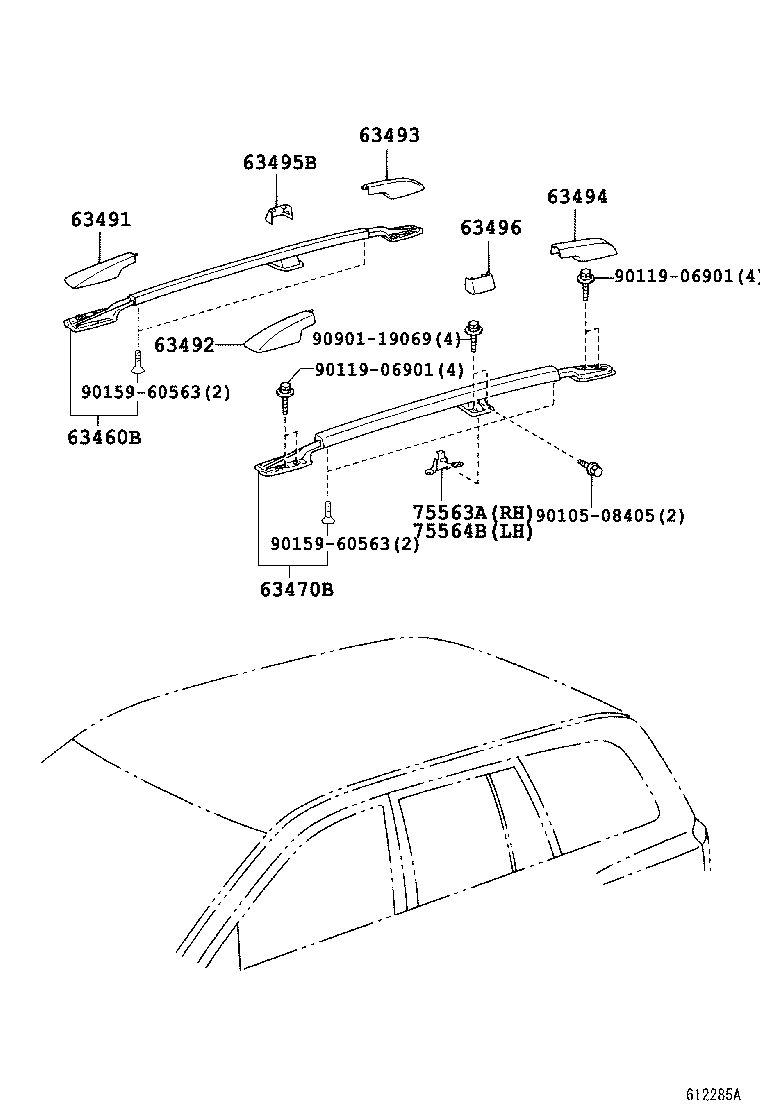

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63460B — Rack Assy, Roof, RH | ||||
| 63460-48010 note |
Rack Assy, Roof, RH
2005-03 → —
|
MHU2# | — | |
| 63470B — Rack Assy, Roof, LH | ||||
| 63470-48010 note |
Rack Assy, Roof, LH
2005-03 → —
|
MHU2# | — | |
| 63491 — Cover, Roof Rack Leg, Front RH | ||||
| 63491-48010 note |
Cover, Roof Rack Leg, Front RH
2005-03 → —
|
MHU2# | — | |
| 63492 — Cover, Roof Rack Leg, Front LH | ||||
| 63492-48010 note |
Cover, Roof Rack Leg, Front LH
2005-03 → —
|
MHU2# | — | |
| 63493 — Cover, Roof Rack Leg, Rear RH | ||||
| 63493-48010 note |
Cover, Roof Rack Leg, Rear RH
2005-03 → —
|
MHU2# | — | |
| 63494 — Cover, Roof Rack Leg, Rear LH | ||||
| 63494-48010 note |
Cover, Roof Rack Leg, Rear LH
2005-03 → —
|
MHU2# | — | |
| 63495B — Cover, Roof Rack Leg, Center RH | ||||
| 63495-48010 note |
Cover, Roof Rack Leg, Center RH
2005-03 → —
|
MHU2# | — | |
| 63496 — Cover, Roof Rack Leg, Center LH | ||||
| 63496-48010 note |
Cover, Roof Rack Leg, Center LH
2005-03 → —
|
MHU2# | — | |
| 75563A — Retainer, Roof Drip Side Finish Moulding, NO.1 | ||||
| 75563-48020 note |
Retainer, Roof Drip Side Finish Moulding, NO.1
2005-03 → —
|
MHU2# | — | |
| 75564B — Retainer, Roof Drip Side Finish Moulding, NO.2 | ||||
| 75564-48020 note |
Retainer, Roof Drip Side Finish Moulding, NO.2
2005-03 → —
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
