Toyota Highlander HV

2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States

Supported model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

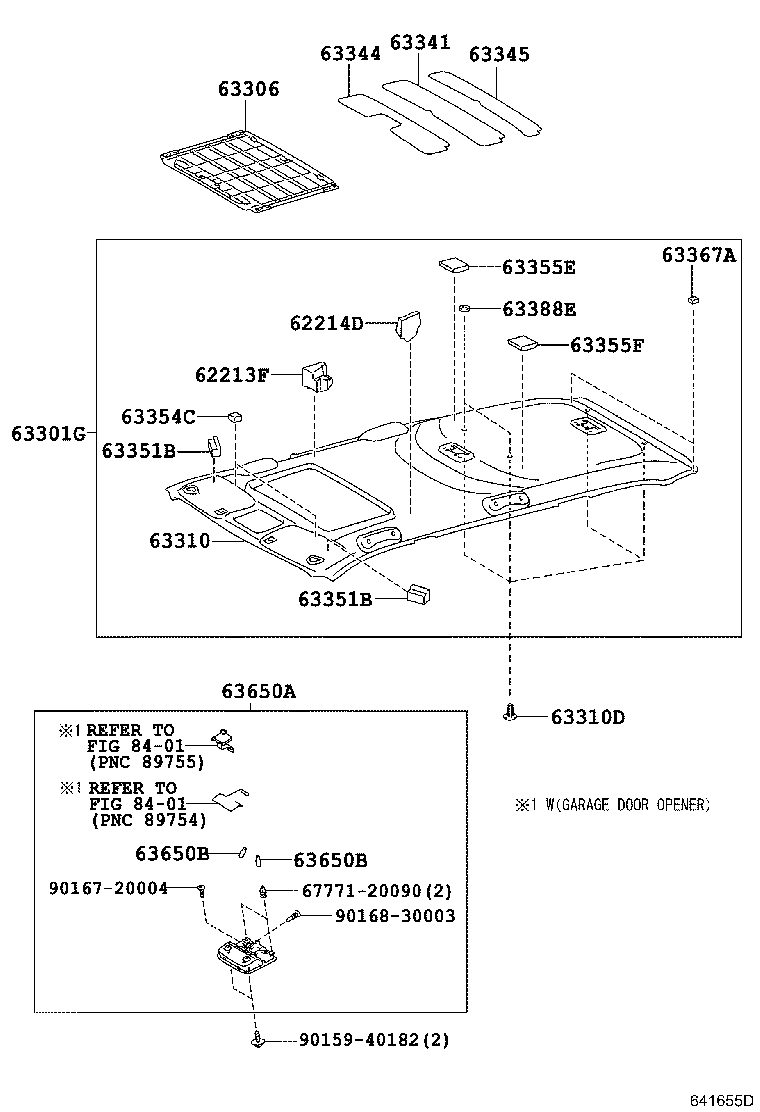

Exploded illustration 641655D 63650A — BOX ASSY, ROOF CONSOLE (8 parts) 6777120090 — not listed in this catalogue 9016830003 — not listed in this catalogue 9015940182 — not listed in this catalogue 9016720004 — not listed in this catalogue 63345 — PAD, ROOF SILENCER, NO.5 (3 parts) 63344 — PAD, ROOF SILENCER, NO.4 (5 parts) 63341 — PAD, ROOF SILENCER, NO.1 (3 parts) 63306 — TRIM SUB-ASSY, SUNSHADE (4 parts) 63310D — CLIP, ROOF HEADLINING (2 parts) 63310 — HEADLINING ASSY, ROOF (22 parts) 63301G — HEADLINING SUB-ASSY, ROOF, FRONT (28 parts) 63355E — PAD, ROOF HEADLINING, NO.2 RH (1 parts) 63388E — STOPPER, ROOF HEADLINING TRIM CLIP (1 parts) 62213F — PAD, FRONT PILLAR GARNISH, RH (8 parts) 62214D — PAD, FRONT PILLAR GARNISH, LH (8 parts) 63354C — PAD, ROOF HEADLINING FRONT SIDE (9 parts) 63351B — PAD, ROOF HEADLINING (1 parts) 63351B — PAD, ROOF HEADLINING (1 parts) 63355F — PAD, ROOF HEADLINING, NO.2 LH (1 parts) 63367A — SUPPORT, ROOF HEADLINING, C NO.1 (1 parts) 63650B — BULB, ROOF CONSOLE BOX (1 parts) 63650B — BULB, ROOF CONSOLE BOX (1 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue
641655D · 19 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
106 parts on this figure
Part number Description Fitment Price
62213F — Pad, Front Pillar Garnish, RH
62213-48020 note Pad, Front Pillar Garnish, RH
2005-03 → 2006-08 ended
MHU2# —
62213-48020 note Pad, Front Pillar Garnish, RH
2005-03 → 2006-08 ended
MHU2# —
62213-48020 note Pad, Front Pillar Garnish, RH
2005-03 → —
MHU2# —
62213-48020 note Pad, Front Pillar Garnish, RH
2005-03 → —
MHU2# —
62213-48020 note Pad, Front Pillar Garnish, RH
2005-03 → —
MHU2# —
62213-48020 note Pad, Front Pillar Garnish, RH
2005-03 → —
MHU2# —
62213-48020 note Pad, Front Pillar Garnish, RH
2005-03 → 2006-08 ended
MHU2# —
62213-48020 note Pad, Front Pillar Garnish, RH
2005-03 → 2006-08 ended
MHU2# —
62214D — Pad, Front Pillar Garnish, LH
62214-48020 note Pad, Front Pillar Garnish, LH
2005-03 → 2006-08 ended
MHU2# —
62214-48020 note Pad, Front Pillar Garnish, LH
2005-03 → 2006-08 ended
MHU2# —
62214-48020 note Pad, Front Pillar Garnish, LH
2005-03 → 2006-08 ended
MHU2# —
62214-48020 note Pad, Front Pillar Garnish, LH
2005-03 → 2006-08 ended
MHU2# —
62214-48020 note Pad, Front Pillar Garnish, LH
2005-03 → —
MHU2# —
62214-48020 note Pad, Front Pillar Garnish, LH
2005-03 → —
MHU2# —
62214-48020 note Pad, Front Pillar Garnish, LH
2005-03 → —
MHU2# —
62214-48020 note Pad, Front Pillar Garnish, LH
2005-03 → —
MHU2# —
63301G — Headlining Sub-assy, Roof, Front
63301-48190-A0 note Headlining Sub-assy, Roof, Front
2005-03 → 2006-08 ended
MHU2# —
63301-48190-B0 note Headlining Sub-assy, Roof, Front
2005-03 → 2006-08 ended
MHU2# —
63301-48200-A0 note Headlining Sub-assy, Roof, Front
2005-03 → 2006-08 ended
MHU2# —
63301-48200-B0 note Headlining Sub-assy, Roof, Front
2005-03 → 2006-08 ended
MHU2# —
63301-48210-A0 note Headlining Sub-assy, Roof, Front
2005-03 → 2006-08 ended
MHU2# —
63301-48210-A0 note Headlining Sub-assy, Roof, Front
2006-08 → 2007-05 ended
MHU2# —
63301-48210-B0 note Headlining Sub-assy, Roof, Front
2006-08 → 2007-05 ended
MHU2# —
63301-48210-B0 note Headlining Sub-assy, Roof, Front
2005-03 → 2006-08 ended
MHU2# —
63301-48220-A0 note Headlining Sub-assy, Roof, Front
2005-03 → 2006-08 ended
MHU2# —
63301-48220-A0 note Headlining Sub-assy, Roof, Front
2006-08 → 2007-05 ended
MHU2# —
63301-48220-B0 note Headlining Sub-assy, Roof, Front
2005-03 → 2006-08 ended
MHU2# —
63301-48220-B0 note Headlining Sub-assy, Roof, Front
2006-08 → 2007-05 ended
MHU2# —
63301-48230-A0 note Headlining Sub-assy, Roof, Front
2005-03 → 2006-08 ended
MHU2# —
63301-48230-A0 note Headlining Sub-assy, Roof, Front
2005-03 → 2007-05 ended
MHU2# —
63301-48230-B0 note Headlining Sub-assy, Roof, Front
2005-03 → 2006-08 ended
MHU2# —
63301-48230-B0 note Headlining Sub-assy, Roof, Front
2005-03 → 2007-05 ended
MHU2# —
63301-48240-A0 note Headlining Sub-assy, Roof, Front
2005-03 → 2006-08 ended
MHU2# —
63301-48240-A0 note Headlining Sub-assy, Roof, Front
2005-03 → 2007-05 ended
MHU2# —
63301-48240-B0 note Headlining Sub-assy, Roof, Front
2005-03 → 2006-08 ended
MHU2# —
63301-48240-B0 note Headlining Sub-assy, Roof, Front
2005-03 → 2007-05 ended
MHU2# —
63301-48250-A0 note Headlining Sub-assy, Roof, Front
2005-03 → 2006-08 ended
MHU2# —
63301-48250-A0 note Headlining Sub-assy, Roof, Front
2005-03 → 2007-05 ended
MHU2# —
63301-48250-B0 note Headlining Sub-assy, Roof, Front
2005-03 → 2006-08 ended
MHU2# —
63301-48250-B0 note Headlining Sub-assy, Roof, Front
2005-03 → 2007-05 ended
MHU2# —
63301-48260-A0 note Headlining Sub-assy, Roof, Front
2005-03 → 2007-05 ended
MHU2# —
63301-48260-A0 note Headlining Sub-assy, Roof, Front
2005-03 → 2006-08 ended
MHU2# —
63301-48260-B0 note Headlining Sub-assy, Roof, Front
2005-03 → 2007-05 ended
MHU2# —
63301-48260-B0 note Headlining Sub-assy, Roof, Front
2005-03 → 2006-08 ended
MHU2# —
63306 — Trim Sub-assy, Sunshade
63306-48070-A1 note Trim Sub-assy, Sunshade
2005-03 → 2007-05 ended
MHU2# —
63306-48070-A1 note Trim Sub-assy, Sunshade
2005-03 → 2007-05 ended
MHU2# —
63306-48070-B1 note Trim Sub-assy, Sunshade
2005-03 → 2007-05 ended
MHU2# —
63306-48070-B1 note Trim Sub-assy, Sunshade
2005-03 → 2007-05 ended
MHU2# —
63310 — Headlining Assy, Roof
63310-48220-A0 note Headlining Assy, Roof
2005-03 → 2006-08 ended
MHU2# —
63310-48220-A0 note Headlining Assy, Roof
2005-03 → 2006-08 ended
MHU2# —
63310-48220-A0 note Headlining Assy, Roof
2005-03 → 2006-08 ended
MHU2# —
63310-48220-A0 note Headlining Assy, Roof
2006-08 → 2007-05 ended
MHU2# —
63310-48220-B0 note Headlining Assy, Roof
2005-03 → 2006-08 ended
MHU2# —
63310-48220-B0 note Headlining Assy, Roof
2005-03 → 2007-05 ended
MHU2# —
63310-48230-A0 note Headlining Assy, Roof
2005-03 → 2006-08 ended
MHU2# —
63310-48230-A0 note Headlining Assy, Roof
2005-03 → 2007-05 ended
MHU2# —
63310-48230-A0 note Headlining Assy, Roof
2005-03 → 2007-05 ended
MHU2# —
63310-48230-A0 note Headlining Assy, Roof
2005-03 → 2006-08 ended
MHU2# —
63310-48230-B0 note Headlining Assy, Roof
2005-03 → 2006-08 ended
MHU2# —
63310-48230-B0 note Headlining Assy, Roof
2005-03 → 2006-08 ended
MHU2# —
63310-48230-B0 note Headlining Assy, Roof
2005-03 → 2007-05 ended
MHU2# —
63310-48230-B0 note Headlining Assy, Roof
2005-03 → 2007-05 ended
MHU2# —
63310-48240-A0 note Headlining Assy, Roof
2005-03 → 2006-08 ended
MHU2# —
63310-48240-A0 note Headlining Assy, Roof
2005-03 → 2007-05 ended
MHU2# —
63310-48240-A0 note Headlining Assy, Roof
2005-03 → 2007-05 ended
MHU2# —
63310-48240-A0 note Headlining Assy, Roof
2005-03 → 2006-08 ended
MHU2# —
63310-48240-B0 note Headlining Assy, Roof
2005-03 → 2006-08 ended
MHU2# —
63310-48240-B0 note Headlining Assy, Roof
2005-03 → 2007-05 ended
MHU2# —
63310-48240-B0 note Headlining Assy, Roof
2005-03 → 2007-05 ended
MHU2# —
63310-48240-B0 note Headlining Assy, Roof
2005-03 → 2006-08 ended
MHU2# —
63310D — Clip, Roof Headlining
90467-06089-A1 note Clip, Roof Headlining
2005-03 → 2007-05 ended
MHU2# —
90467-06089-B6 note Clip, Roof Headlining
2005-03 → 2007-05 ended
MHU2# —
63341 — Pad, Roof Silencer, NO.1
63341-48020 note Pad, Roof Silencer, NO.1
2005-03 → —
MHU2# —
63341-48020 note Pad, Roof Silencer, NO.1
2005-03 → —
MHU2# —
63341-48020 Pad, Roof Silencer, NO.1
2005-03 → —
MHU2# —
63344 — Pad, Roof Silencer, NO.4
63344-48040 Pad, Roof Silencer, NO.4
2005-03 → —
MHU2# —
63344-48050 note Pad, Roof Silencer, NO.4
2005-03 → 2006-08 ended
MHU2# —
63344-48050 note Pad, Roof Silencer, NO.4
2005-03 → 2006-08 ended
MHU2# —
63344-48050 note Pad, Roof Silencer, NO.4
2005-03 → —
MHU2# —
63344-48050 note Pad, Roof Silencer, NO.4
2005-03 → —
MHU2# —
63345 — Pad, Roof Silencer, NO.5
63345-22050 note Pad, Roof Silencer, NO.5
2005-03 → —
MHU2# —
63345-22050 note Pad, Roof Silencer, NO.5
2005-03 → —
MHU2# —
63345-22050 Pad, Roof Silencer, NO.5
2005-03 → —
MHU2# —
63351B — Pad, Roof Headlining
63351-48010 Pad, Roof Headlining
2005-03 → 2007-05 ended
MHU2# —
63354C — Pad, Roof Headlining Front Side
63354-48040 Pad, Roof Headlining Front Side
2005-03 → 2007-05 ended
MHU2# —
63354-48050 note Pad, Roof Headlining Front Side
2005-03 → 2006-08 ended
MHU2# —
63354-48050 note Pad, Roof Headlining Front Side
2005-03 → 2006-08 ended
MHU2# —
63354-48050 note Pad, Roof Headlining Front Side
2005-03 → 2006-08 ended
MHU2# —
63354-48050 note Pad, Roof Headlining Front Side
2005-03 → 2006-08 ended
MHU2# —
63354-48050 note Pad, Roof Headlining Front Side
2005-03 → 2007-05 ended
MHU2# —
63354-48050 note Pad, Roof Headlining Front Side
2005-03 → 2007-05 ended
MHU2# —
63354-48050 note Pad, Roof Headlining Front Side
2005-03 → 2007-05 ended
MHU2# —
63354-48050 note Pad, Roof Headlining Front Side
2005-03 → 2007-05 ended
MHU2# —
63355E — Pad, Roof Headlining, NO.2 RH
63355-48060 Pad, Roof Headlining, NO.2 RH
2005-03 → 2007-05 ended
MHU2# —
63355F — Pad, Roof Headlining, NO.2 LH
63355-48060 Pad, Roof Headlining, NO.2 LH
2005-03 → 2007-05 ended
MHU2# —
63367A — Support, Roof Headlining, C NO.1
63367-48010 Support, Roof Headlining, C NO.1
2005-03 → 2007-05 ended
MHU2# —
63388E — Stopper, Roof Headlining Trim Clip
63388-48010 Stopper, Roof Headlining Trim Clip
2005-03 → 2007-05 ended
MHU2# —
63650A — Box Assy, Roof Console
63650-48010-A0 note Box Assy, Roof Console
2005-03 → 2007-05 ended
MHU2# —
63650-48010-B0 note Box Assy, Roof Console
2005-03 → 2007-05 ended
MHU2# —
63650-48020-A0 note Box Assy, Roof Console
2005-03 → 2007-05 ended
MHU2# —
63650-48020-B0 note Box Assy, Roof Console
2005-03 → 2007-05 ended
MHU2# —
63650-48030-A0 note Box Assy, Roof Console
2005-03 → 2007-05 ended
MHU2# —
63650-48030-B0 note Box Assy, Roof Console
2005-03 → 2007-05 ended
MHU2# —
63650-48040-A0 note Box Assy, Roof Console
2005-03 → 2007-05 ended
MHU2# —
63650-48040-B0 note Box Assy, Roof Console
2005-03 → 2007-05 ended
MHU2# —
63650B — Bulb, Roof Console Box
99132-12050 Bulb, Roof Console Box
2005-03 → 2007-05 ended
MHU2# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
