Toyota Highlander HV

2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States

Supported model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

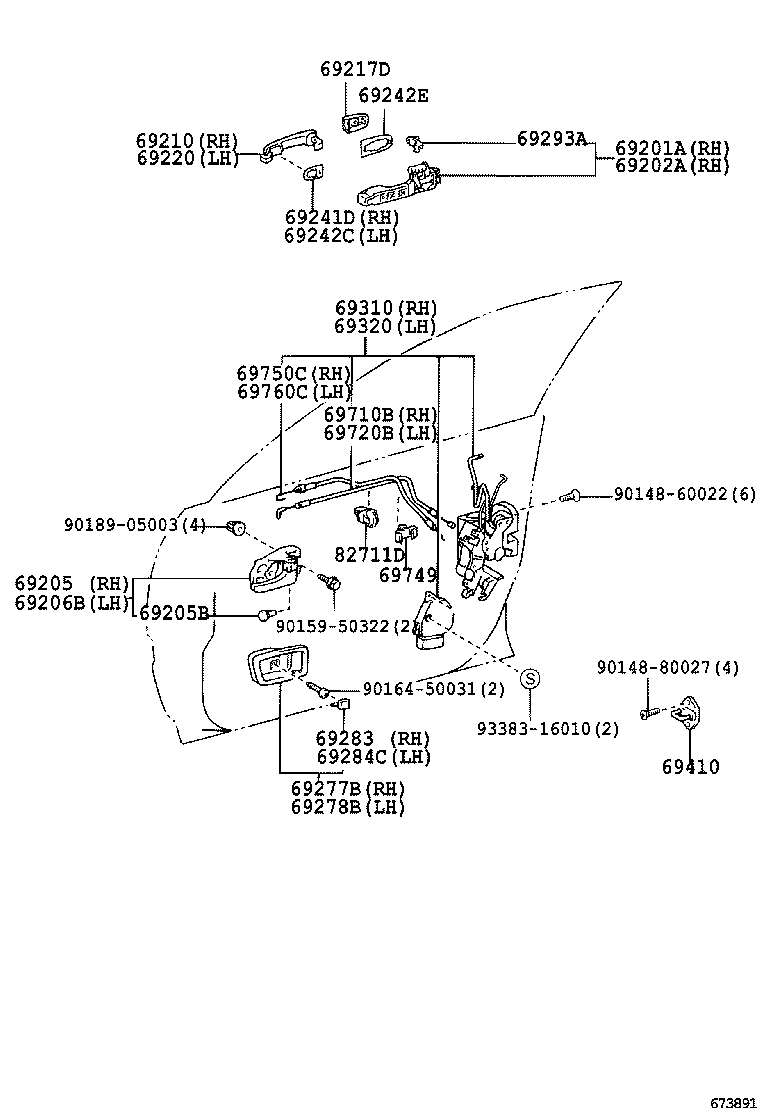

Exploded illustration 673891 69217D — COVER, FRONT DOOR OUTSIDE HANDLE (6 parts) 69201A — FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH (1 parts) 69202A — FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH (1 parts) 69210 — HANDLE ASSY, FRONT DOOR, OUTSIDE RH (6 parts) 69220 — HANDLE ASSY, FRONT DOOR OUTSIDE, LH (6 parts) 69320 — LOCK ASSY, FRONT DOOR, LH (1 parts) 69310 — LOCK ASSY, FRONT DOOR, RH (1 parts) 69241D — PAD, FRONT DOOR OUTSIDE HANDLE, RH (1 parts) 69293A — SNAP, FRONT DOOR OUTSIDE HANDLE (2 parts) 69242C — PAD, FRONT DOOR OUTSIDE HANDLE, LH (1 parts) 69242E — PAD, FRONT DOOR OUTSIDE HANDLE, REAR (1 parts) 69410 — PLATE ASSY, FRONT DOOR LOCK STRIKER (1 parts) 9014860022 — not listed in this catalogue 9338316010 — not listed in this catalogue 69749 — CLAMP, FRONT DOOR LOCK LINK (1 parts) 9016450031 — not listed in this catalogue 69205B — CUSHION(FOR FRONT DOOR INSIDE HANDLE) (1 parts) 82711D — CLAMP, WIRING HARNESS (1 parts) 9015950322 — not listed in this catalogue 9018905003 — not listed in this catalogue 69750C — CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH (1 parts) 69760C — CABLE ASSY, FRONT DOOR INSIDE LOCKING LH (1 parts) 69720B — CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH (1 parts) 69710B — CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH (1 parts) 69283 — PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH (2 parts) 69284C — PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH (2 parts) 69205 — HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH (4 parts) 69206B — HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH (4 parts) 69277B — BEZEL, FRONT DOOR INSIDE HANDLE, RH (4 parts) 69278B — BEZEL, FRONT DOOR INSIDE HANDLE, LH (4 parts) 9014880027 — not listed in this catalogue
673891 · 25 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
55 parts on this figure
Part number Description Fitment Price
69201A — Frame Sub-assy, Front Door Outside Handle, RH
69201-52010 Frame Sub-assy, Front Door Outside Handle, RH
2005-03 → —
MHU2# —
69202A — Frame Sub-assy, Front Door Outside Handle, LH
69202-52010 Frame Sub-assy, Front Door Outside Handle, LH
2005-03 → —
MHU2# —
69205 — Handle Sub-assy, Front Door Inside, RH
69205-48020-A0 note Handle Sub-assy, Front Door Inside, RH
2005-03 → 2007-05 ended
MHU2# —
69205-48020-B1 note Handle Sub-assy, Front Door Inside, RH
2005-03 → 2007-05 ended
MHU2# —
69205-48030-A0 note Handle Sub-assy, Front Door Inside, RH
2005-03 → 2007-05 ended
MHU2# —
69205-48030-B2 note Handle Sub-assy, Front Door Inside, RH
2005-03 → 2007-05 ended
MHU2# —
69205B — Cushion(FOR FRONT DOOR INSIDE HANDLE)
90541-04014 Cushion(FOR FRONT DOOR INSIDE HANDLE)
2005-03 → 2007-05 ended
MHU2# —
69206B — Handle Sub-assy, Front Door Inside, LH
69206-48020-A0 note Handle Sub-assy, Front Door Inside, LH
2005-03 → 2007-05 ended
MHU2# —
69206-48020-B1 note Handle Sub-assy, Front Door Inside, LH
2005-03 → 2007-05 ended
MHU2# —
69206-48030-A0 note Handle Sub-assy, Front Door Inside, LH
2005-03 → 2007-05 ended
MHU2# —
69206-48030-B2 note Handle Sub-assy, Front Door Inside, LH
2005-03 → 2007-05 ended
MHU2# —
69210 — Handle Assy, Front Door, Outside RH
69211-12220-A0 note Handle Assy, Front Door, Outside RH
2005-03 → 2007-05 ended
MHU2# —
69211-12220-B2 note Handle Assy, Front Door, Outside RH
2005-03 → 2007-05 ended
MHU2# —
69211-12220-C1 note Handle Assy, Front Door, Outside RH
2005-03 → 2007-05 ended
MHU2# —
69211-12220-E5 note Handle Assy, Front Door, Outside RH
2005-03 → 2007-05 ended
MHU2# —
69211-12220-G5 note Handle Assy, Front Door, Outside RH
2005-03 → 2007-05 ended
MHU2# —
69211-12220-J1 note Handle Assy, Front Door, Outside RH
2005-03 → 2007-05 ended
MHU2# —
69217D — Cover, Front Door Outside Handle
69217-42020-A3 note Cover, Front Door Outside Handle
2005-03 → 2007-05 ended
MHU2# —
69217-42020-B3 note Cover, Front Door Outside Handle
2005-03 → 2007-05 ended
MHU2# —
69217-42020-C0 note Cover, Front Door Outside Handle
2005-03 → 2007-05 ended
MHU2# —
69217-42020-E6 note Cover, Front Door Outside Handle
2005-03 → 2007-05 ended
MHU2# —
69217-42020-G6 note Cover, Front Door Outside Handle
2005-03 → 2007-05 ended
MHU2# —
69217-42020-J5 note Cover, Front Door Outside Handle
2005-03 → 2007-05 ended
MHU2# —
69220 — Handle Assy, Front Door Outside, LH
69211-12220-A0 note Handle Assy, Front Door Outside, LH
2005-03 → 2007-05 ended
MHU2# —
69211-12220-B2 note Handle Assy, Front Door Outside, LH
2005-03 → 2007-05 ended
MHU2# —
69211-12220-C1 note Handle Assy, Front Door Outside, LH
2005-03 → 2007-05 ended
MHU2# —
69211-12220-E5 note Handle Assy, Front Door Outside, LH
2005-03 → 2007-05 ended
MHU2# —
69211-12220-G5 note Handle Assy, Front Door Outside, LH
2005-03 → 2007-05 ended
MHU2# —
69211-12220-J1 note Handle Assy, Front Door Outside, LH
2005-03 → 2007-05 ended
MHU2# —
69241D — Pad, Front Door Outside Handle, RH
69241-42020 Pad, Front Door Outside Handle, RH
2005-03 → —
MHU2# —
69242C — Pad, Front Door Outside Handle, LH
69241-42020 Pad, Front Door Outside Handle, LH
2005-03 → —
MHU2# —
69242E — Pad, Front Door Outside Handle, Rear
69242-42010 Pad, Front Door Outside Handle, Rear
2005-03 → —
MHU2# —
69277B — Bezel, Front Door Inside Handle, RH
69277-22090-A1 note Bezel, Front Door Inside Handle, RH
2005-03 → 2007-05 ended
MHU2# —
69277-22090-B8 note Bezel, Front Door Inside Handle, RH
2005-03 → 2007-05 ended
MHU2# —
69277-30150-A0 note Bezel, Front Door Inside Handle, RH
2005-03 → 2007-05 ended
MHU2# —
69277-30150-P0 note Bezel, Front Door Inside Handle, RH
2005-03 → 2007-05 ended
MHU2# —
69278B — Bezel, Front Door Inside Handle, LH
69278-22050-A1 note Bezel, Front Door Inside Handle, LH
2005-03 → 2007-05 ended
MHU2# —
69278-22050-B8 note Bezel, Front Door Inside Handle, LH
2005-03 → 2007-05 ended
MHU2# —
69278-30080-A0 note Bezel, Front Door Inside Handle, LH
2005-03 → 2007-05 ended
MHU2# —
69278-30080-P0 note Bezel, Front Door Inside Handle, LH
2005-03 → 2007-05 ended
MHU2# —
69283 — Plug, Front Door Inside Handle Bezel, RH
69283-30040-A1 note Plug, Front Door Inside Handle Bezel, RH
2005-03 → 2007-05 ended
MHU2# —
69283-30040-P2 note Plug, Front Door Inside Handle Bezel, RH
2005-03 → 2007-05 ended
MHU2# —
69284C — Plug, Front Door Inside Handle Bezel, LH
69284-30040-A1 note Plug, Front Door Inside Handle Bezel, LH
2005-03 → 2007-05 ended
MHU2# —
69284-30040-P2 note Plug, Front Door Inside Handle Bezel, LH
2005-03 → 2007-05 ended
MHU2# —
69293A — Snap, Front Door Outside Handle
69293-12030 note Snap, Front Door Outside Handle
2005-03 → —
MHU2# —
69293-12040 note Snap, Front Door Outside Handle
2005-03 → —
MHU2# —
69310 — Lock Assy, Front Door, RH
69030-48060 Lock Assy, Front Door, RH
2005-03 → —
MHU2# —
69320 — Lock Assy, Front Door, LH
69040-48060 Lock Assy, Front Door, LH
2005-03 → —
MHU2# —
69410 — Plate Assy, Front Door Lock Striker
69410-20110 Plate Assy, Front Door Lock Striker
2005-03 → —
MHU2# —
69710B — Cable Assy, Front Door Lock Remote Control, RH
69710-48030 Cable Assy, Front Door Lock Remote Control, RH
2005-03 → —
MHU2# —
69720B — Cable Assy, Front Door Lock Remote Control, LH
69710-48030 Cable Assy, Front Door Lock Remote Control, LH
2005-03 → —
MHU2# —
69749 — Clamp, Front Door Lock Link
69749-30050 Clamp, Front Door Lock Link
2005-03 → —
MHU2# —
69750C — Cable Assy, Front Door Inside Locking, RH
69750-48040 Cable Assy, Front Door Inside Locking, RH
2005-03 → —
MHU2# —
69760C — Cable Assy, Front Door Inside Locking LH
69760-48020 Cable Assy, Front Door Inside Locking LH
2005-03 → —
MHU2# —
82711D — Clamp, Wiring Harness
82711-1E260 Clamp, Wiring Harness
2005-03 → —
MHU2# —
