Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

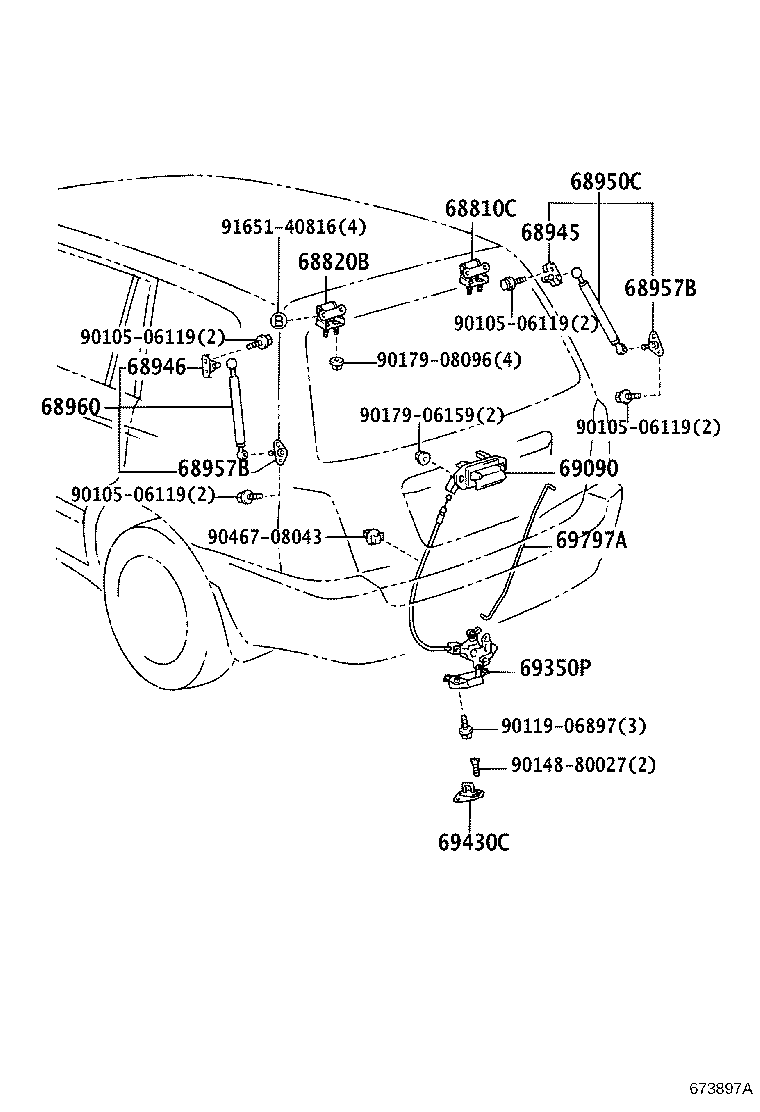

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 68810C — Hinge Assy, Back Door, RH | ||||
| 68810-52060 |
Hinge Assy, Back Door, RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 68820B — Hinge Assy, Back Door, LH | ||||
| 68810-52060 |
Hinge Assy, Back Door, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 68945 — Bracket, Back Door Damper Stay, Upper RH | ||||
| 68945-48030 |
Bracket, Back Door Damper Stay, Upper RH
2005-03 → —
|
MHU2# | — | |
| 68946 — Bracket, Back Door Damper Stay, Upper LH | ||||
| 68945-48030 |
Bracket, Back Door Damper Stay, Upper LH
2005-03 → —
|
MHU2# | — | |
| 68950C — Stay Assy, Back Door, RH | ||||
| 68950-49155 |
Stay Assy, Back Door, RH
2005-03 → —
|
MHU2# | — | |
| 68957B — Bracket, Back Door Stay, Lower | ||||
| 68957-13020 |
Bracket, Back Door Stay, Lower
2005-03 → —
|
MHU2# | — | |
| 68960 — Stay Assy, Back Door, LH | ||||
| 68960-49155 |
Stay Assy, Back Door, LH
2005-03 → —
|
MHU2# | — | |
| 69090 — Handle Assy, Back Door, Outside | ||||
| 69090-48010 |
Handle Assy, Back Door, Outside
2005-03 → —
|
MHU2# | — | |
| 69350P — Lock Assy, Back Door, W/Courtesy Lamp Switch | ||||
| 69350-48020 |
Lock Assy, Back Door, W/Courtesy Lamp Switch
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 69430C — Striker Assy, Back Door Lock | ||||
| 69430-48010 |
Striker Assy, Back Door Lock
2005-03 → —
|
MHU2# | — | |
| 69797A — Link, Back Door Cylinder TO Lock Control | ||||
| 69797-48010 |
Link, Back Door Cylinder TO Lock Control
2005-03 → —
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
