Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

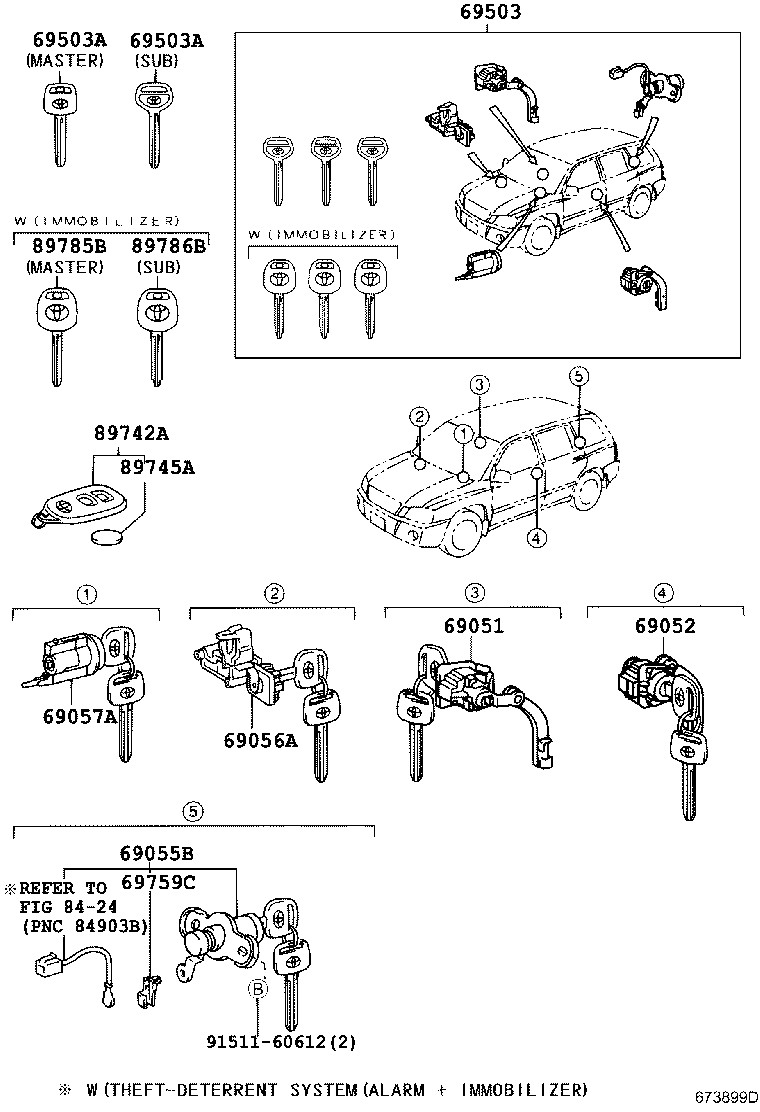

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 69051 — Cylinder & Key Set, Door Lock, RH | ||||
| 69051-48040 |
Cylinder & Key Set, Door Lock, RH
2005-03 → —
|
MHU2# | — | |
| 69052 — Cylinder & Key Set, Door Lock, LH | ||||
| 69052-48040 |
Cylinder & Key Set, Door Lock, LH
2005-03 → —
|
MHU2# | — | |
| 69055B — Cylinder & Key Set, Back Door Lock | ||||
| 69055-48040 |
Cylinder & Key Set, Back Door Lock
2005-03 → —
|
MHU2# | — | |
| 69055-48060 note |
Cylinder & Key Set, Back Door Lock
2005-03 → 2005-09
ended
|
MHU2# | — | |
| 69055-48060 note |
Cylinder & Key Set, Back Door Lock
2005-09 → —
|
MHU2# | — | |
| 69056A — Cylinder & Key Set, Glove Compartment Lock | ||||
| 69056-48030 |
Cylinder & Key Set, Glove Compartment Lock
2005-03 → —
|
MHU2# | — | |
| 69057A — Cylinder & Key Set, Ignition Switch Lock | ||||
| 69057-48040 |
Cylinder & Key Set, Ignition Switch Lock
2005-03 → —
|
MHU2# | — | |
| 69057-48140 note |
Cylinder & Key Set, Ignition Switch Lock
2005-03 → 2005-09
ended
|
MHU2# | — | |
| 69057-48140 note |
Cylinder & Key Set, Ignition Switch Lock
2005-03 → —
|
MHU2# | — | |
| 69057-48140 note |
Cylinder & Key Set, Ignition Switch Lock
2005-09 → —
|
MHU2# | — | |
| 69503 — Cylinder Set, Lock | ||||
| 69005-48070 |
Cylinder Set, Lock
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 69005-48210 note |
Cylinder Set, Lock
2005-03 → 2005-09
ended
|
MHU2# | — | |
| 69005-48210 note |
Cylinder Set, Lock
2005-09 → 2007-05
ended
|
MHU2# | — | |
| 69005-48220 note |
Cylinder Set, Lock
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 69503A — Key, Blank | ||||
| 90999-00188 note |
Key, Blank
2005-03 → —
|
MHU2# | — | |
| 90999-00199 note |
Key, Blank
2005-03 → —
|
MHU2# | — | |
| 90999-00199 note |
Key, Blank
2005-03 → —
|
MHU2# | — | |
| 90999-00199 note |
Key, Blank
2005-03 → —
|
MHU2# | — | |
| 69759C — Snap, Back Door Lock Cylinder | ||||
| 69759-24080 |
Snap, Back Door Lock Cylinder
2005-03 → —
|
MHU2# | — | |
| 89742A — Transmitter, Door Control | ||||
| 89742-42120 note |
Transmitter, Door Control
2005-03 → 2005-09
ended
|
MHU2# | — | |
| 89742-42120 |
Transmitter, Door Control
2005-09 → —
|
MHU2# | — | |
| 89745A — Battery, Transmitter | ||||
| 89745-50010 note |
Battery, Transmitter
2005-03 → 2005-09
ended
|
MHU2# | — | |
| 89745-50010 |
Battery, Transmitter
2005-09 → —
|
MHU2# | — | |
| 89785B — Transmitter, Transponder Key Master | ||||
| 89785-60160 note |
Transmitter, Transponder Key Master
2005-03 → 2005-09
ended
|
MHU2# | — | |
| 89785-60160 note |
Transmitter, Transponder Key Master
2005-03 → —
|
MHU2# | — | |
| 89785-60160 note |
Transmitter, Transponder Key Master
2005-09 → —
|
MHU2# | — | |
| 89786B — Transmitter, Transponder Key Sub | ||||
| 89786-60170 note |
Transmitter, Transponder Key Sub
2005-03 → 2005-09
ended
|
MHU2# | — | |
| 89786-60170 note |
Transmitter, Transponder Key Sub
2005-03 → —
|
MHU2# | — | |
| 89786-60170 note |
Transmitter, Transponder Key Sub
2005-09 → —
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
