Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

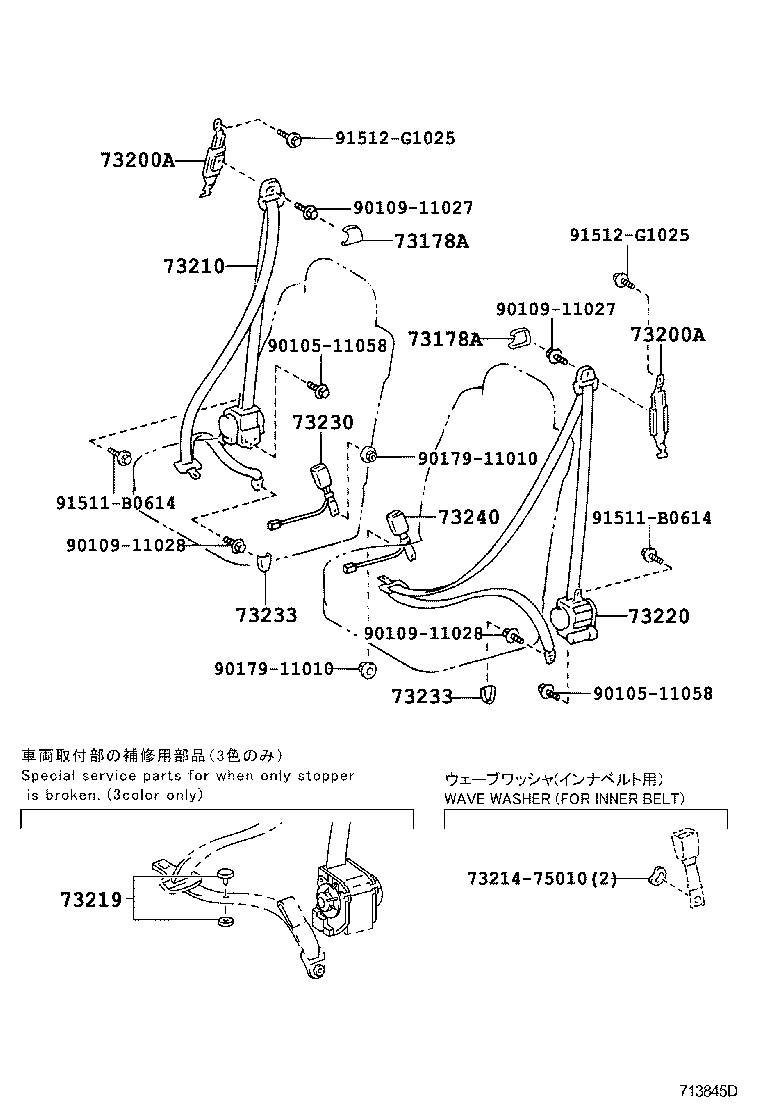

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 73178A — Cap, Seat Belt Anchor Cover | ||||
| 73178-33020-A1 note |
Cap, Seat Belt Anchor Cover
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73178-33020-P3 note |
Cap, Seat Belt Anchor Cover
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73200A — Adjuster Assy, Front Shoulder Belt Anchor | ||||
| 73200-52010-A0 note |
Adjuster Assy, Front Shoulder Belt Anchor
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73200-52010-B6 note |
Adjuster Assy, Front Shoulder Belt Anchor
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73210 — Belt Assy, Front Seat Outer, RH | ||||
| 73210-48130-A0 note |
Belt Assy, Front Seat Outer, RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73210-48130-B0 note |
Belt Assy, Front Seat Outer, RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73219 — Stopper, Tongue Plate | ||||
| 73219-02010 note |
Stopper, Tongue Plate
2005-03 → —
|
MHU2# | — | |
| 73219-02020 note |
Stopper, Tongue Plate
2005-03 → —
|
MHU2# | — | |
| 73219-02030 note |
Stopper, Tongue Plate
2005-03 → —
|
MHU2# | — | |
| 73220 — Belt Assy, Front Seat Outer, LH | ||||
| 73220-48110-A0 note |
Belt Assy, Front Seat Outer, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73220-48110-B0 note |
Belt Assy, Front Seat Outer, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73230 — Belt Assy, Front Seat Inner, RH | ||||
| 73230-48160-A0 note |
Belt Assy, Front Seat Inner, RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73230-48160-B0 note |
Belt Assy, Front Seat Inner, RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73230-48230-A0 note |
Belt Assy, Front Seat Inner, RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73230-48230-B0 note |
Belt Assy, Front Seat Inner, RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73233 — Cover, Lap Belt Outer Anchor | ||||
| 73233-33010-A1 note |
Cover, Lap Belt Outer Anchor
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73233-33010-P3 note |
Cover, Lap Belt Outer Anchor
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73240 — Belt Assy, Front Seat Inner, LH | ||||
| 73230-48150-A0 note |
Belt Assy, Front Seat Inner, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73230-48150-B0 note |
Belt Assy, Front Seat Inner, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73230-48210-A0 note |
Belt Assy, Front Seat Inner, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73230-48210-A0 note |
Belt Assy, Front Seat Inner, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73230-48210-B0 note |
Belt Assy, Front Seat Inner, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73230-48210-B0 note |
Belt Assy, Front Seat Inner, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
